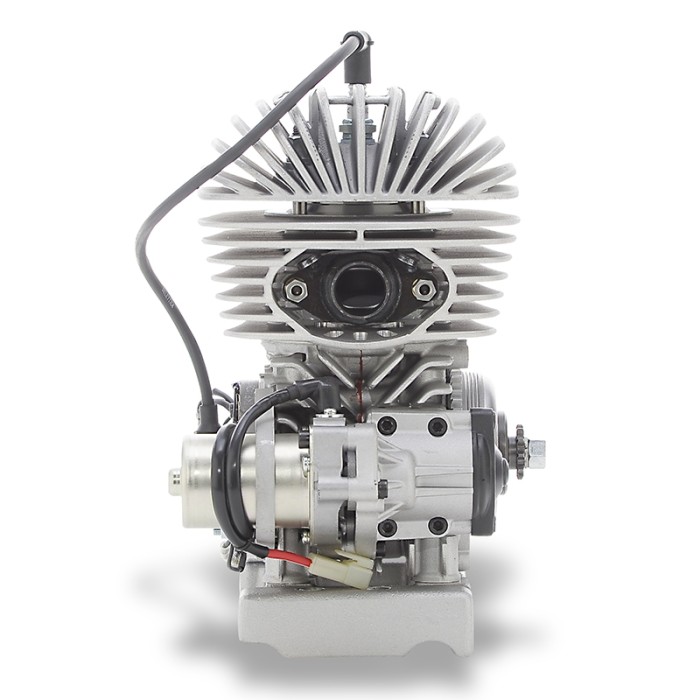

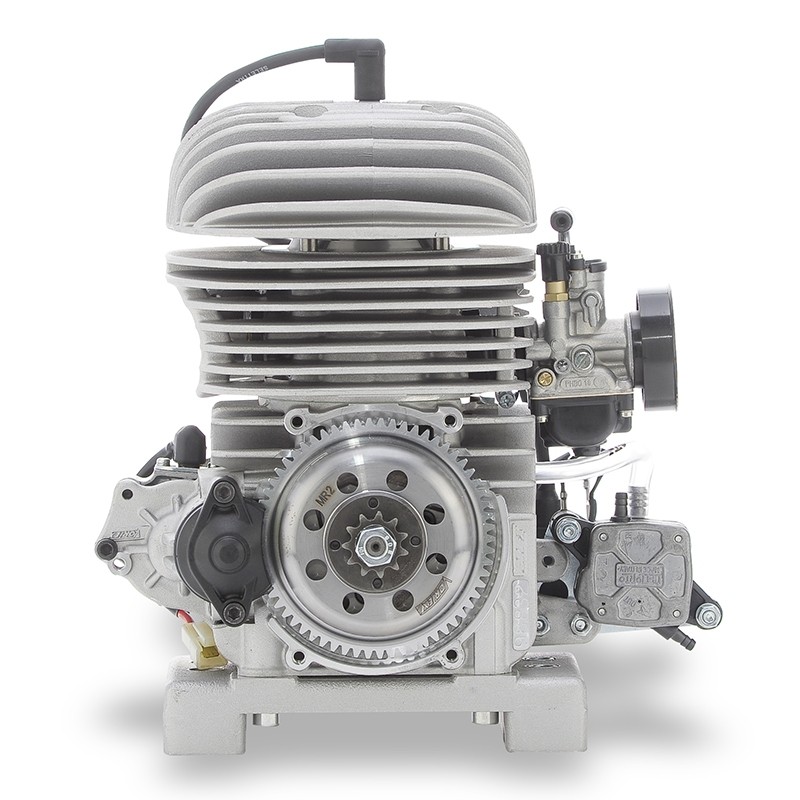

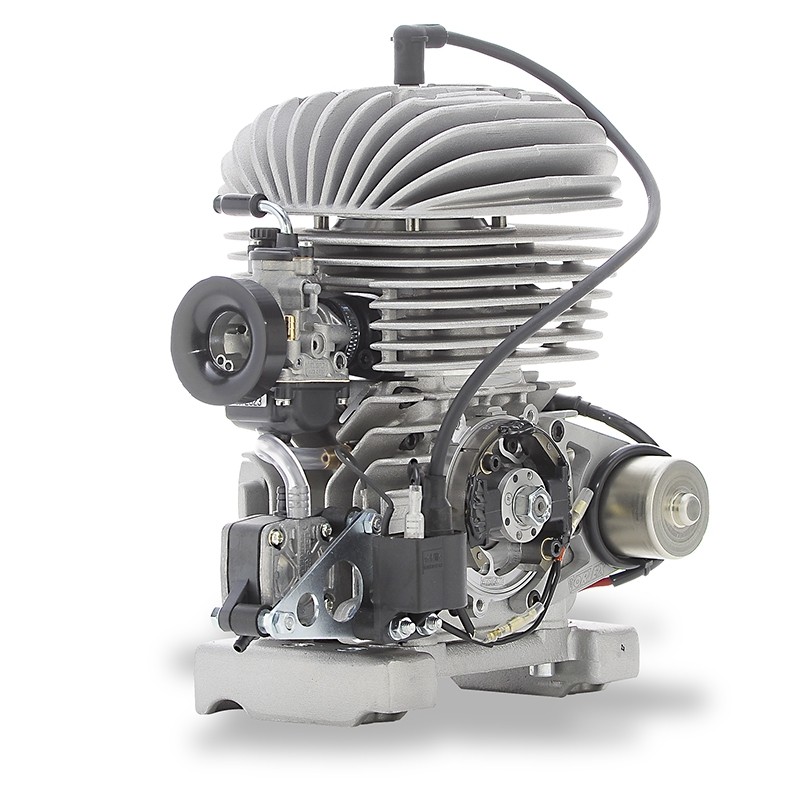

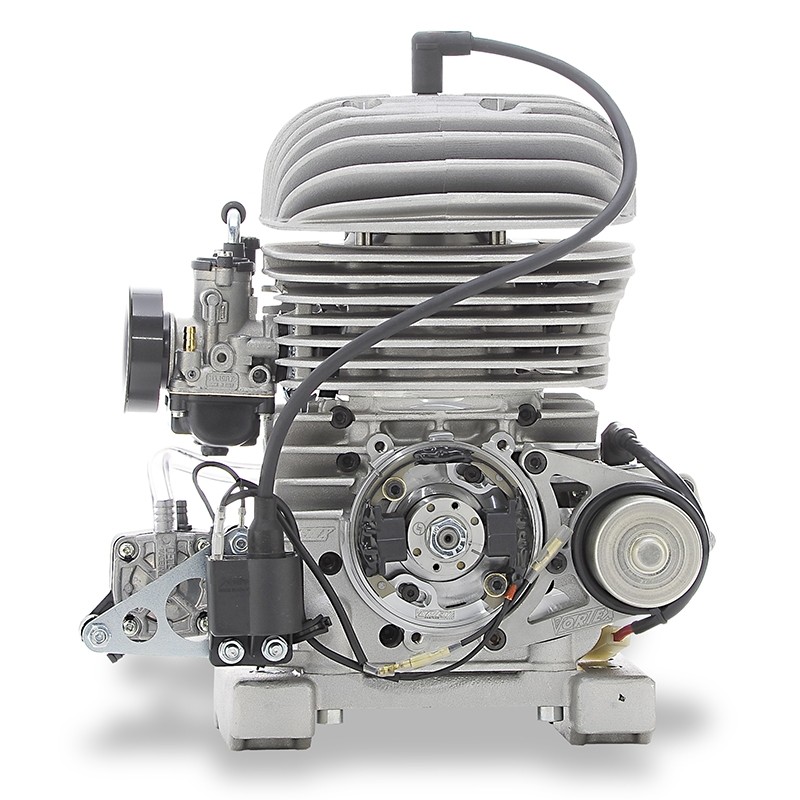

Motor Vortex ROK MINI

Mini Rok is dedicated to the very young drivers and has been shown to grow small karting talents. Thanks to some of its key features it is safe and easy to use, so that young drivers can become familiar with the kart without tension.

The engine has the following features:
Single-cylinder 2 stroke engine, displacement 60cc, piston port. Air-cooled, equipped with centrifugal dry-clutch and integrated electrical starter.

The engine comes in a complete kit with Dell'Orto PHBG Ø 18mm carburettor, Dell'Orto fuel pump, Vortex intake silencer and exhaust with integrated exhaust silencer, starter complete with battery and battery support.

Mini Rok engine is aimed at the younger generation and for more than a decade has spread worldwide, therefore more and more federations have chosen it as national entry level category.

SPECIFICATIONS

• Single-cylinder 2 stroke engine
• Displacement 60 cc
• Piston Port
• Air-cooled system
• Integrated electrical starter
• Radialtrockenkupplung
• gemischgeschmierter
• Gusseisen Zylinder CNC arbeitete
• 2 Überströmkanäle Aufnahme
• Oval Auspuff ohne Rippe
• Kolbenring L-Typ
• Radiallager C4
• Bohrung und Hub 42x43mm
• 10 PS bei 11000 Rpm
• Max Drehmoment 6,5 Nm bei 9,000 Rpm
• Max 15.500 Rpm
• Selettra analogic Zündung
• Dell'Orto PHBG Ø 18mm Vergaser
• Vortex Ansauggeräuschdämpfer
• Dell'Orto Kraftstoffpumpe
• Mini Rok Auspuff mit integriertem Auspuff
