Piston TM KZ R1 - RING 0,7 mm !! - Flat Sky ZERO DEGREESI! Exclusive! News!


Piston flat sky for all TM engines, version Light, segment 0.7 mm

More details


In Stock! Fast Shipping!

rating Visualizza le 5 Recensioni
Valutazione media: 10/10 - Nº valutazioni: 5

€ 57,37

  • 53.93
  • 53.94
  • 53.95
  • 53.96

Volume discounts

QuantityExtra DiscountYou Save
10 € 4,10 Up to € 41,00
30 € 8,20 Up to € 246,00

More info

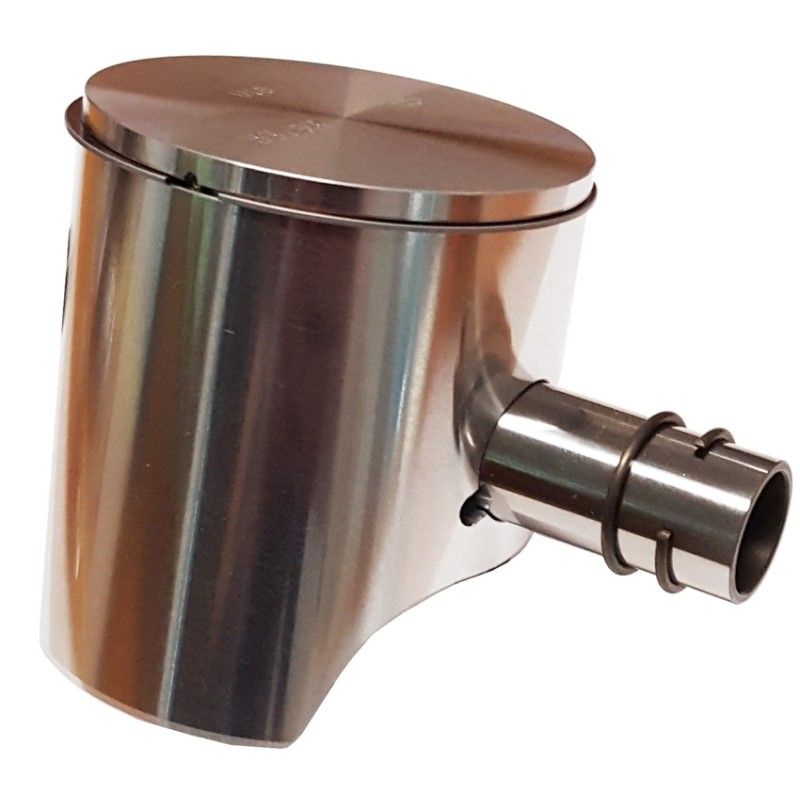

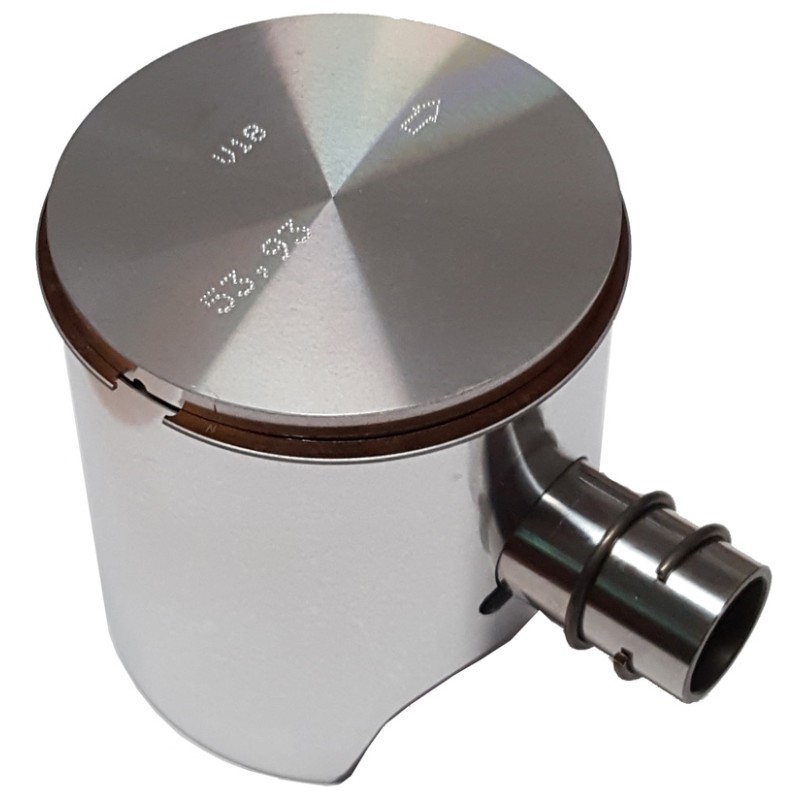

Lightened Piston for engines TM with completely flatten sky for maximum performance, last version used from official racing team!

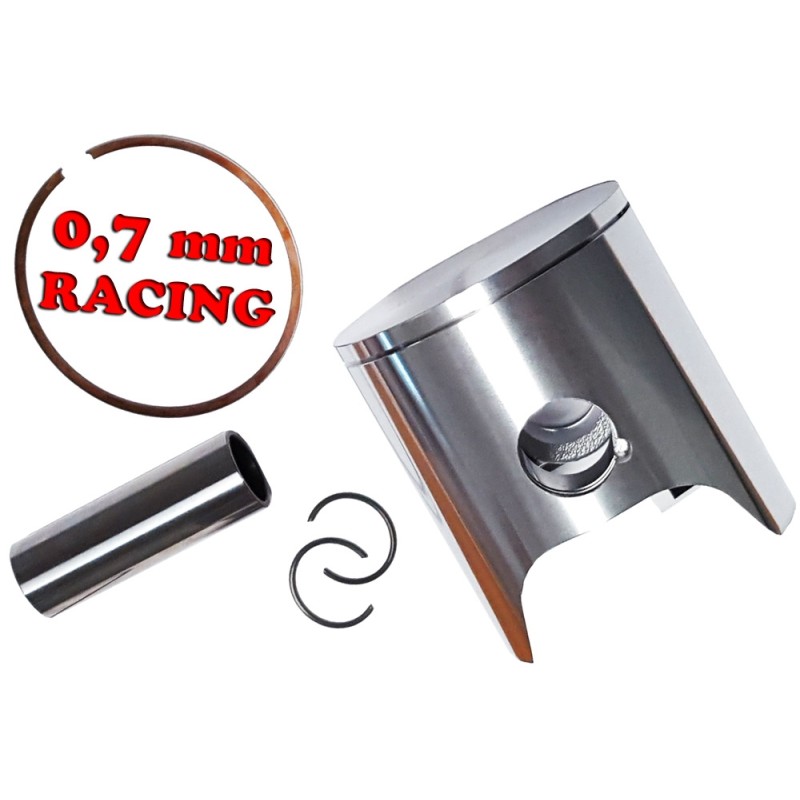

Exclusive of Mondokart Racing, this is first piston produced with Piston Ring 0,7 mm !

The very thin band, for the first time mounted on a KZ shifter kart piston, drastically reduces the friction with the cylinder by 30% compared to the traditional 1mm segments and more than 10% compared to the 0.8mm segment pistons. Unquestionably this translates into an increase in performance.

It has also been tested and proved that the completely flat piston crown reduces the risk of detonation considerably, compared to pistons with a 4 degree inclination.

To use it, it is necessary to mount NEW COMBUSTION CHAMBER WITH CODE CUP2641 ( KZ10C KZR1 ) or THE DOME CUPBP (K9 K9B K9C KZ10 KZ10B) in this section of website.

Weight 109 g - Compression 29mm - Total Hight 60mm - Segment Hight 56,6mm - Top Inclination 0° COMPLETELY FLAT - Elastic Segment 0.7mm - Piston Pin Diameter 15mm - Seeger Thickness 1,2mm

Piston with a resistance and durability out of the ordinary, compared to previous models, is equipped with an innovative reinforcement belt, placed at the piston pin, which avoids the classic "collapse" (reduction of diameter) that usually occurs after some hours of use.

On this innovative version of the piston, compared to the previous models, there are three reinforcement "arches", under the flat sky, for greater reliability over time.


What are you waiting? TRY IT !!

The constant development that Meteor Piston carries on all its products has allowed in the past year, reaching the highest quality standards

The proof is in the fact that several new engines manufacturers adopt as "FIRST ASSEMBLY "Pistons Meteor Piston.

All the pistons Meteor therefore are synonymous with absolute reliability and maximum performance.

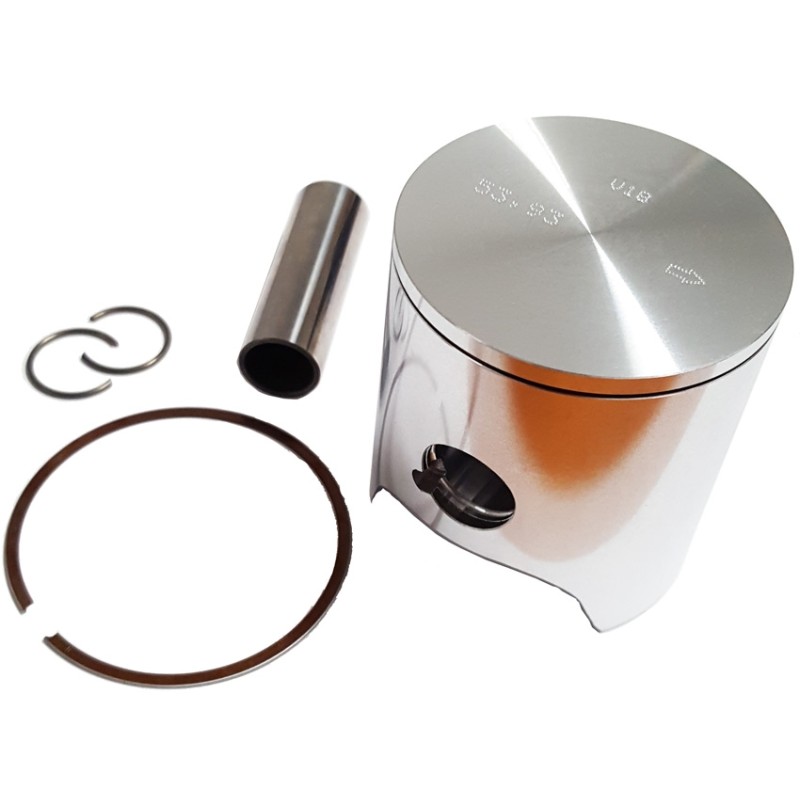

All the pistons are provided with segment (piston ring), pin and two circlips.


Choose if you want to get the standard piston (no preparation), or choose the type of tuning (preparation) between two available:

- Racing (lightening, smoothing of the lower part of the piston)

- Extreme (extreme lightening, side, bottom, inside the piston, for MAX performance possible!)
