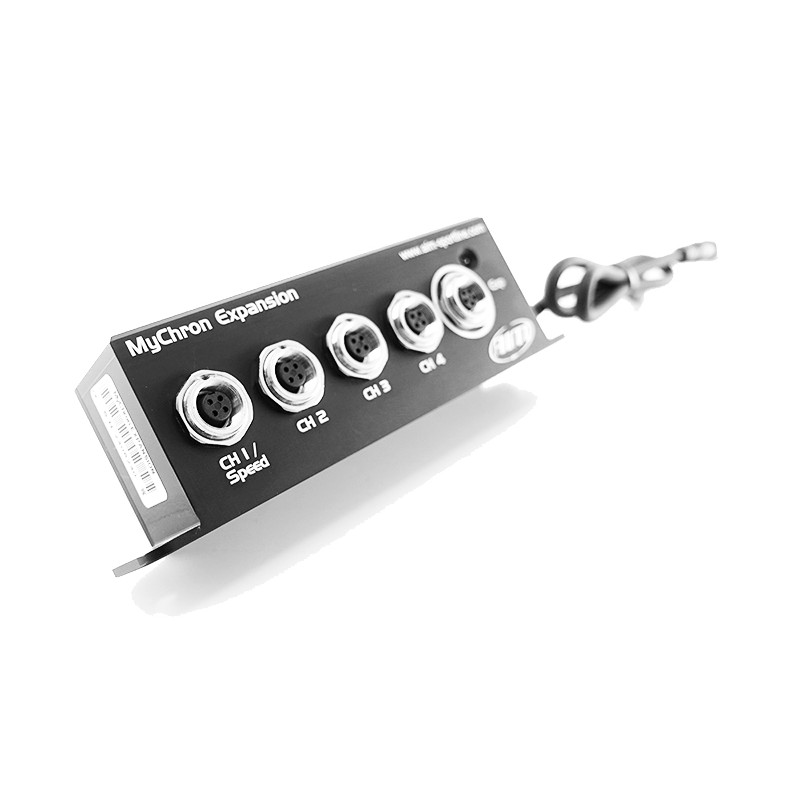

MyChron Expansion AIM

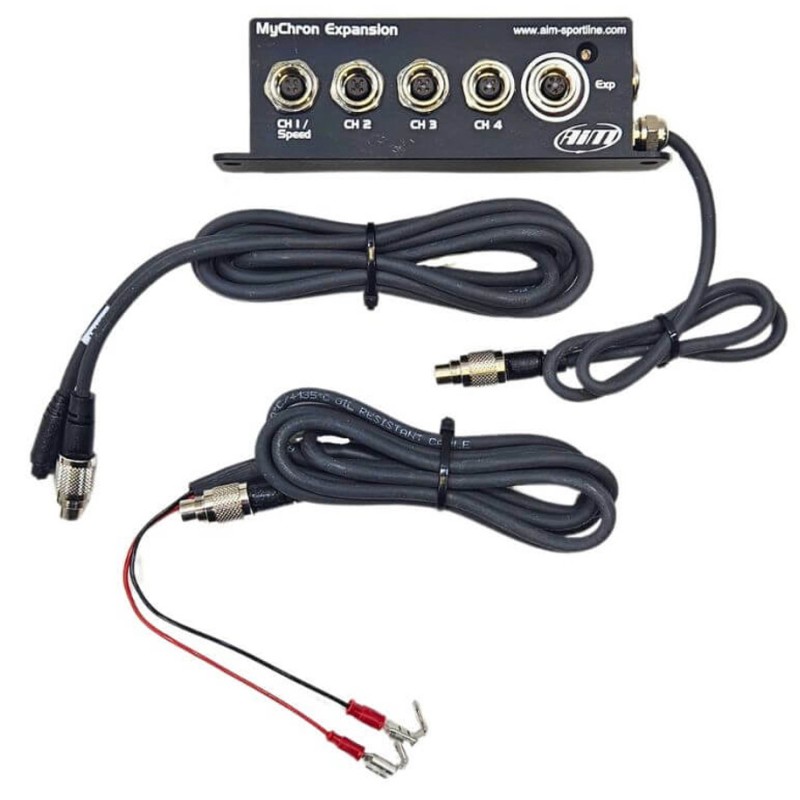

MyChron Expansion is the new multiplier channels that improves the performance and MyChron MyChron 2T via CAN bus, providing four additional channels and an additional connector for CAN communication. This connector allows you to connect to AIM MyChron the following products (LCU lambda controller, GPS, On-board camera SmartyCam) or Data key for data on PC download. Thanks to its specific wiring, MyChron Expansion feeds with an external battery also MyChron and associated peripherals, avoiding the consumption of the internal ones. MyChron Expansion has four inputs that allow you to connect to MyChron many aggiuntivi.Tutti four channels are easily configured as analog - from MyChron menu - to capture data from: sensor position exhaust valve (particularly important because it allows you to understand what RPM value opens the exhaust valve) to the wheel speed sensor. The first input to the left, in fact, is also configurable as a digital channel, sensor brake pedal position without contact, sensor accelerator pedal position without contact (in order to understand if and when it is possible to "push" more the pressure sensor frenotemperatura water or sottocandela temperature ( thermo-resistance sensor PT100) steering potentiometer (to highlight situations of under / oversteer) potentiometer brake pedal, accelerator pedal potentiometer. MyChron expansion is to be considered as an alternative to the expansion eBox most of the pressure sensor or temperature sottocandela frenotemperatura water (thermo-resistance sensor PT100) steering potentiometer (to highlight situations of under / oversteer) potentiometer brake pedal, accelerator pedal potentiometer. MyChron Expansion is to be considered as an alternative to the expansion eBox most of the pressure sensor or temperature sottocandela frenotemperatura water (thermo-resistance sensor PT100) steering potentiometer (to highlight situations of under / oversteer) potentiometer brake pedal, accelerator pedal potentiometer. MyChron Expansion is to be considered as an alternative to the expansion eBox
