Unibox Expansion Unigo Unipro, mondokart, kart, kart store View larger

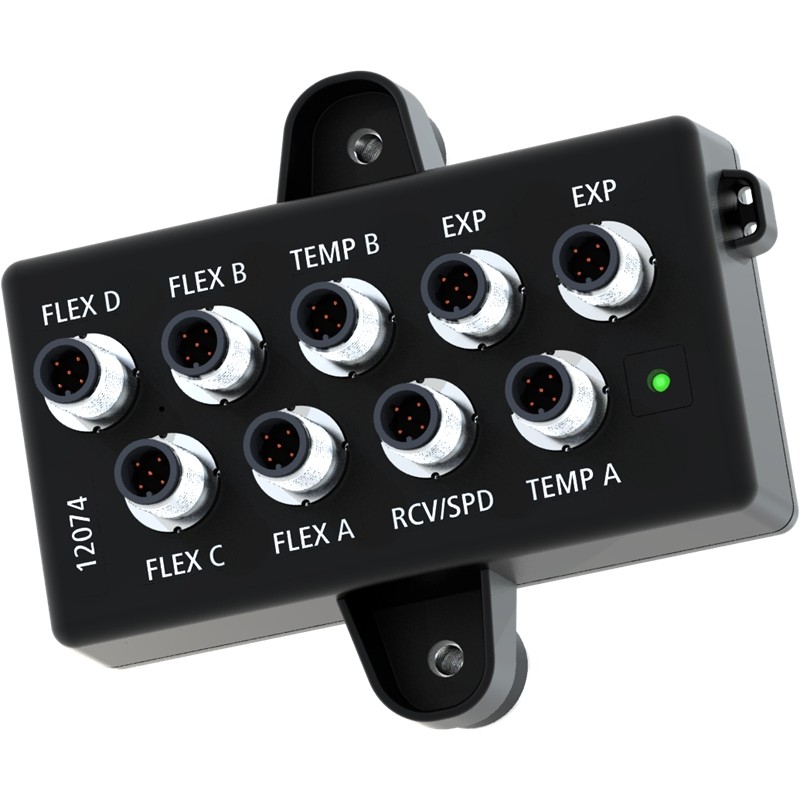

Unibox Expansion Unigo Unipro

16-02-001 11251

Unibox Expansion Unigo Unipro

More details

1 PIECE IN STOCK

In Stock! Fast Shipping!

€ 480,00

More info

The UniBox expands UniGo 5005, 6005 or 8005 and allows a large number of basic and advanced sensors to be connected to the system. If more sensors are needed – another UniBox can be added.

To prepare the UniBox for the future, it has been made as flexible as possible. All known sensors can be connected, and with future software updates, it should also be ready for future sensors or even your own custom sensors.

Enables one-cable Systems: Yes

Sensor inputs: RPM, 4 x temperature*, trigger/speed*, 4 x Flex, power in and out

Accelerometer: Yes, 3-axis built-in

Gyroscope: Yes, 3-axis built-in

Trigger: Magnet, infrared, active loop, MYLAPS X2 2-way link**

Speed input: One or two* wheel sensors

Temperature Inputs: Four*. Auto detect PT1000 or thermocouple

Flex inputs: Four flexible inputs capable of handling two analog signals, digital, or communication. Either 3.3V or 5V supply to external sensors

CAN communication: Yes, on Flex D

Support Custom Sensors: Power supply 3.3V or 5V. Analog input range of either 0 – 2.5V or 0 – 5.5V

Logging speed: 1 – 60 Hz

Casing: Lightweight plastic

Waterproof: Yes

Dimensions: 121.4 x 66.9 x 32.0 mm (4.78″ x 2.63″ x 1.26″)

Weight: 300 g

* Shared connector: Optional cable splitter needed
** Future feature

UniBox expands UniGo
The UniBox expands UniGo 5005, 6005 or 8005 and allows a large number of basic and advanced sensors to be connected to the system. If more sensors are needed – another UniBox can be added.Built-in accelerometer and gyro
With built-in 3-axis accelerometer and 3-axis gyro you will be able to see acceleration and brake force, and the forces around the corners. The gyro will be able to measure how the go-kart rotates for instance when sliding.Build for all future needs
To prepare the UniBox for the future, it has been made as flexible as possible. All known sensors can be connected, and with future software updates, it should also be ready for future sensors or even your own custom sensors.

Works together with Off Camber Data Software
A lot of sensors are not needed during driving but only for analysis later. UniBox works with the OCD software – both for configuration and for analysis.
