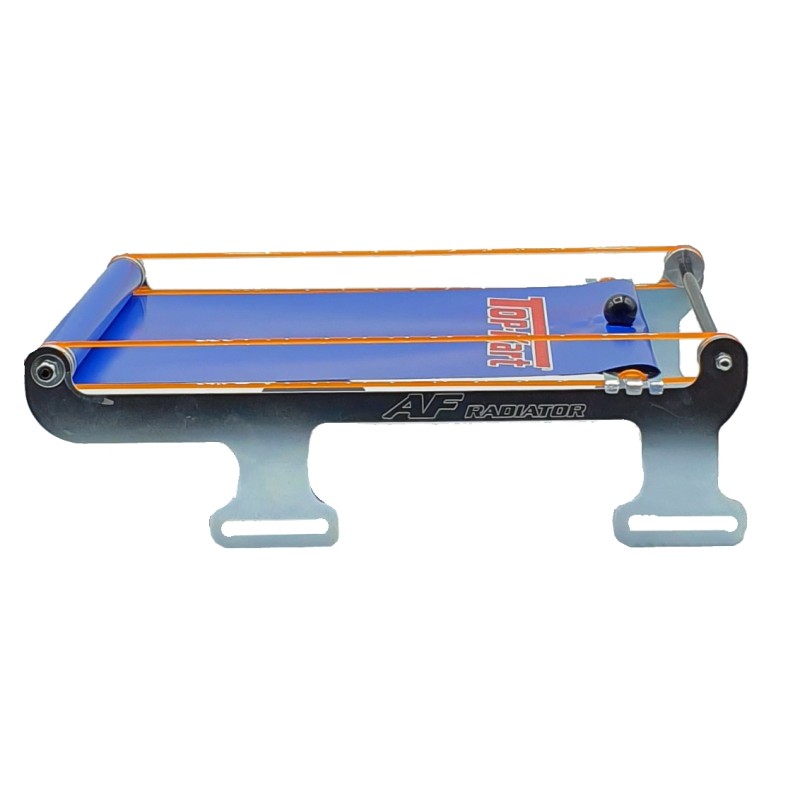

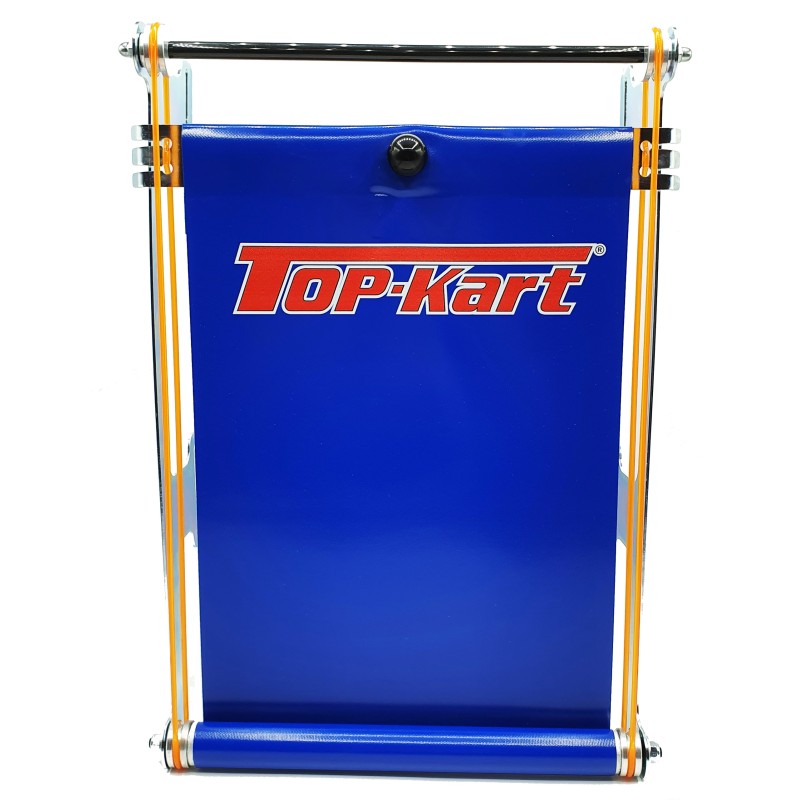

Curtain for Radiator Top-Kart

Curtain for radiators original Top-Kart compatible with several radiators on the market.

Maximum length (the entire open height) 37 cm

Width 25 cm

Distance between the holes fixing 21.5 cm more or less 2 cm (regolable)

Compatible, inter alia with radiator Mondokart Eco Limited AF1, NewLine R and RS.

Excluded screw for fixing to the radiator

It is also possible to mount this curtain on the X30 New-Line radiator (product model starting from 2018), using the special brackets with code STF-X30-NEWLINE available on our website.

MEASURES: 380 x 255 x 110 cm

WEIGHT: 0,8 kg

Needed to reduce the flow of air on the radiator and then manage the water temperature of the kart, the curtains are finished with high quality machinery in all the details, to obtain the best sliding and the best functionality of the product.

On the sides, the two 5.5 cm slots make it possible to exploit the radiator in different climatic conditions, covering or uncovering the radiant mass according to the driver’s needs.

The pulleys on which the occulting system runs have the same radius, thus helping to keep the curtain taut, making it always remain attached to the lower wand.

The rod in which the plastic rings slide to adjust the height of the curtain has been designed to avoid the annoying problem of folding the cloth, making it much easier for the driver to manage the radiator cover during the race.
