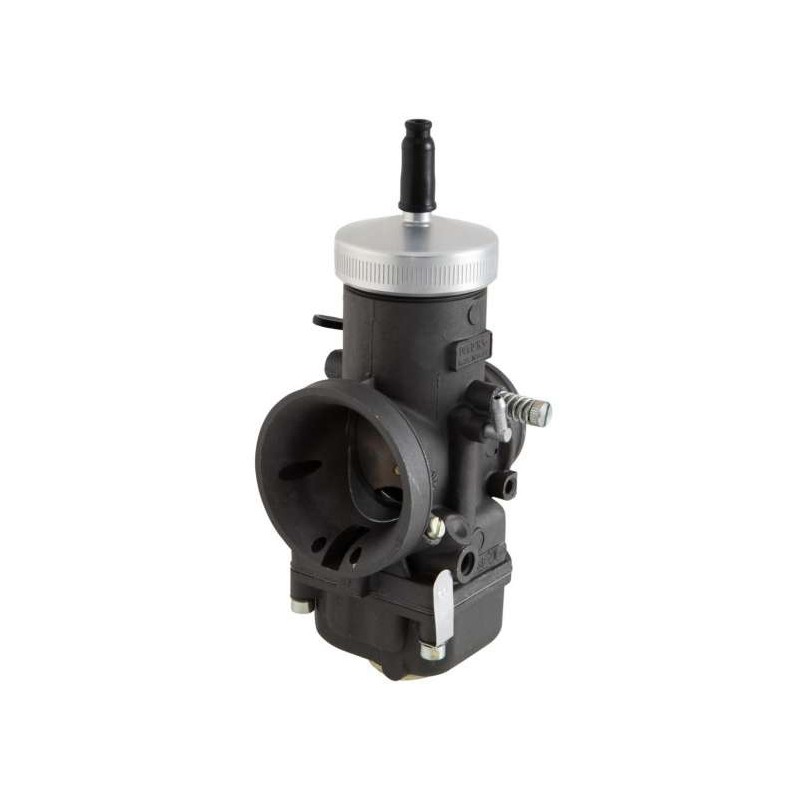

Carburetor Dellorto VHSB 39 ND
286.88 €
09789
Dellorto VHSH VHSB 39mm ND
Description
Dellorto VHSH VHSB 39mm ND
Features:
Flat gas valve
Diffuser reported Independent circuit starting device
Idle system with jet and air adjustment screw Maximum system with mechanical adjustment of the mixture by K series conical needle
Versions with right and/or left idle adjustment screws
Tray with the possibility of mounting independent floats
Connection for elastic mounting Ø 44 Ø 64 air intake connection for assembly of fittings and special for "free" suction
Standard Jetting
- 50 Slide
- K76 Needle
- 262DQ Atomiser
- 215 Main jet
- 120 Idle jet
- 45 Idle emulsion tube
- 60 Choke jet
- 350 Float valve
- 15760.3 Floats - 4.0 grams
