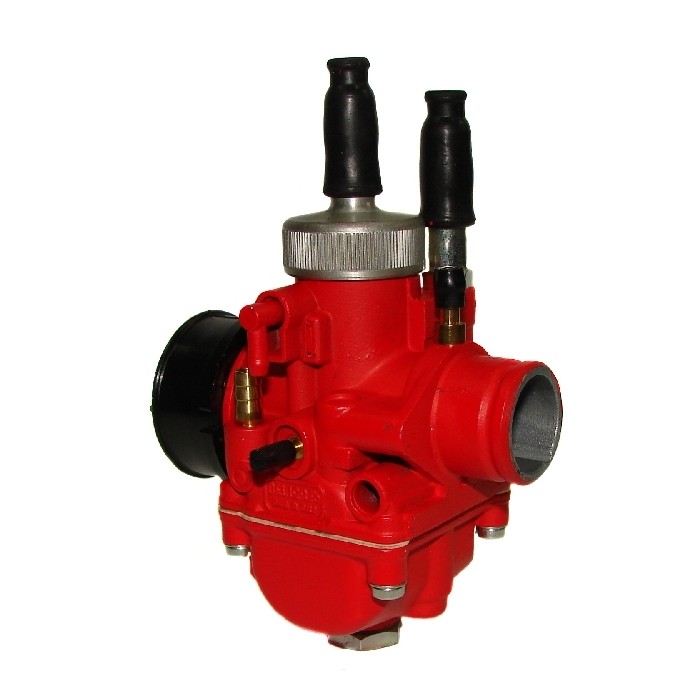

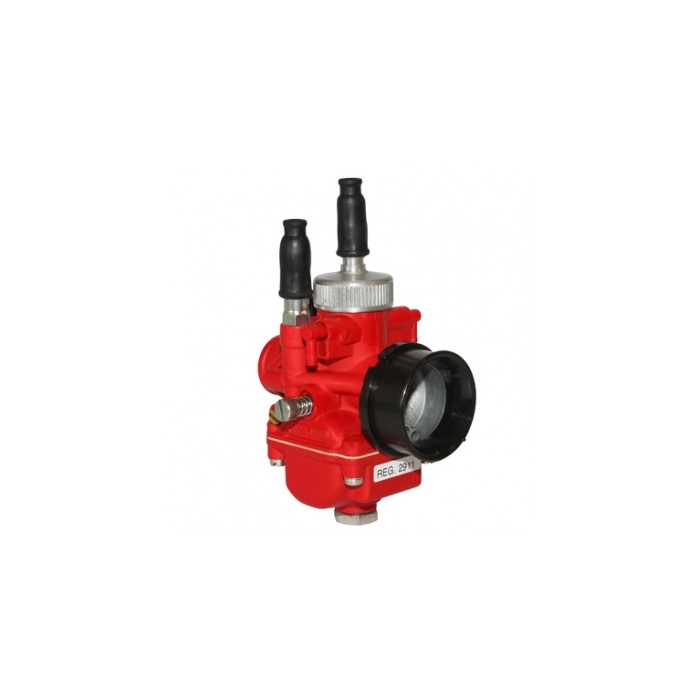

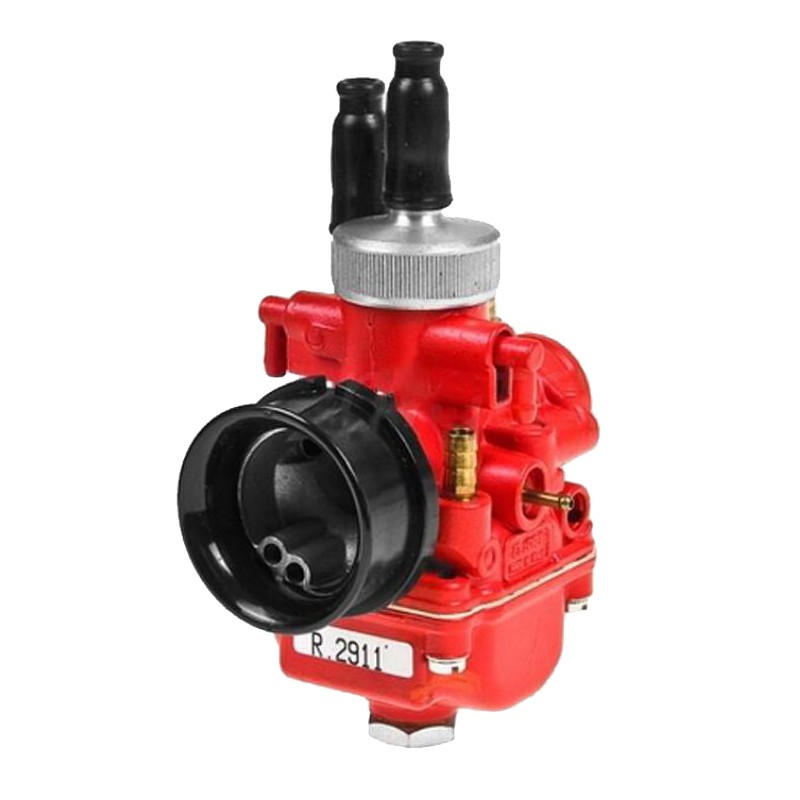

Carburettor Dellorto PHBG 19mm 60cc MINI RED POWER!

Dellorto PHBG 19mm carburetor for all 60cc Mini engines!

If you want the best for your 60cc engine, this is the carburetor for you! The larger diameter, combined with a new production technology that allows for faster flow, results in significantly improved performance at both low and high rpm.

The carburetor is available in both the STD and EXTREME versions, engineered to achieve peak performance.

IMPORTANT NOTE: The carburetor, having a larger 19mm diameter (compared to the original 18mm), cannot be used in competitions, which require a homologation certificate.

The carburetor is compatible with the rubber intake manifolds and air filter connection flanges mounted for the 18mm PHBG.

EXTREME MODEL DETAILS

Preparation involves checking that all lines are free of imperfections to ensure maximum reliability and precision in carburetion.

A specific jet kit will also be installed for the customer's requested average outside temperature and engine type.

It is therefore necessary, at the end of the order, to enter a note in the appropriate field containing the engine model on which the carburetor will be installed and the average outside temperature at the time of use.

If no note is provided at the end of the order, the carburetor will be calibrated for a temperature of 20°C for Iame 60cc engines.

Some categories and championships may not allow the use of this carburetor.

Processing time: 10 business days from order confirmation.

Standard Calibration

THROTTLE VALVE: 30
TAPERED NEEDLE: W9
EMULSIFIER TUBE: 262 AN
MAIN JET: 75 x 5 mm
IDLE JET: 45
STARTING JET: 60
NEEDLE VALVE: N/A
FLOAT: 4 grams
