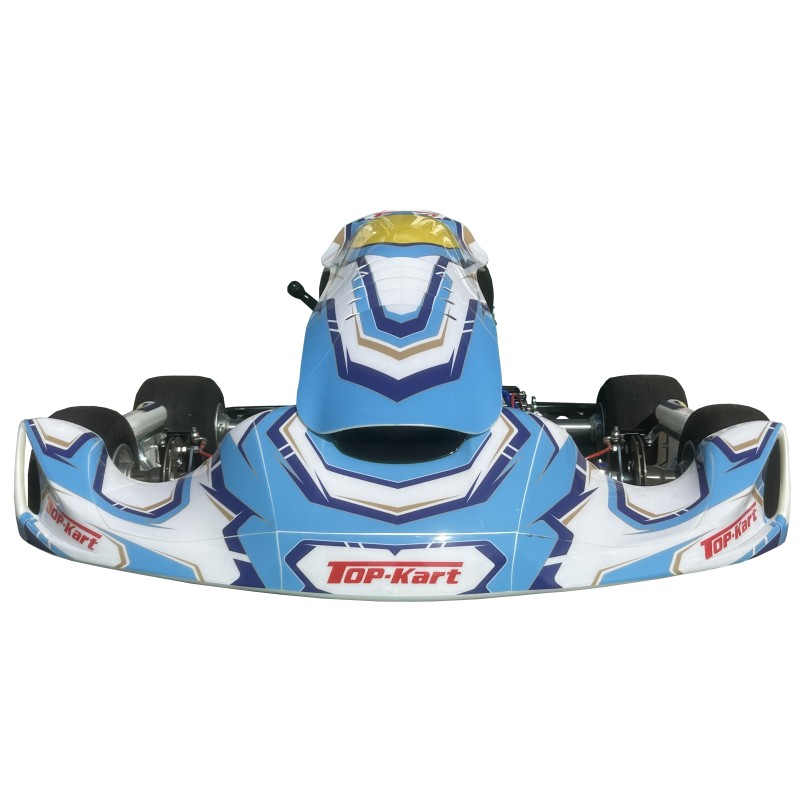

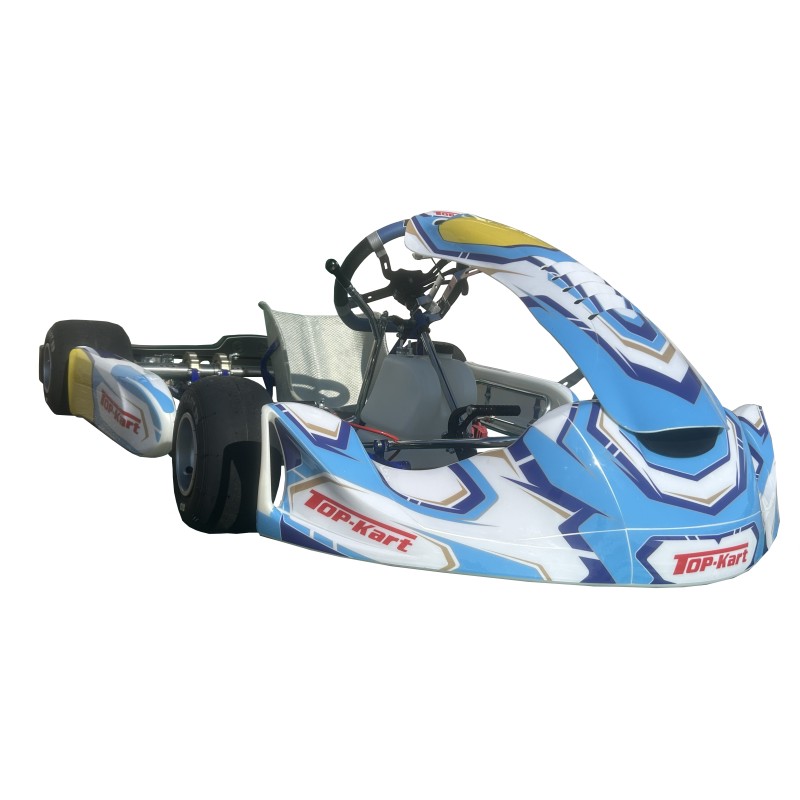

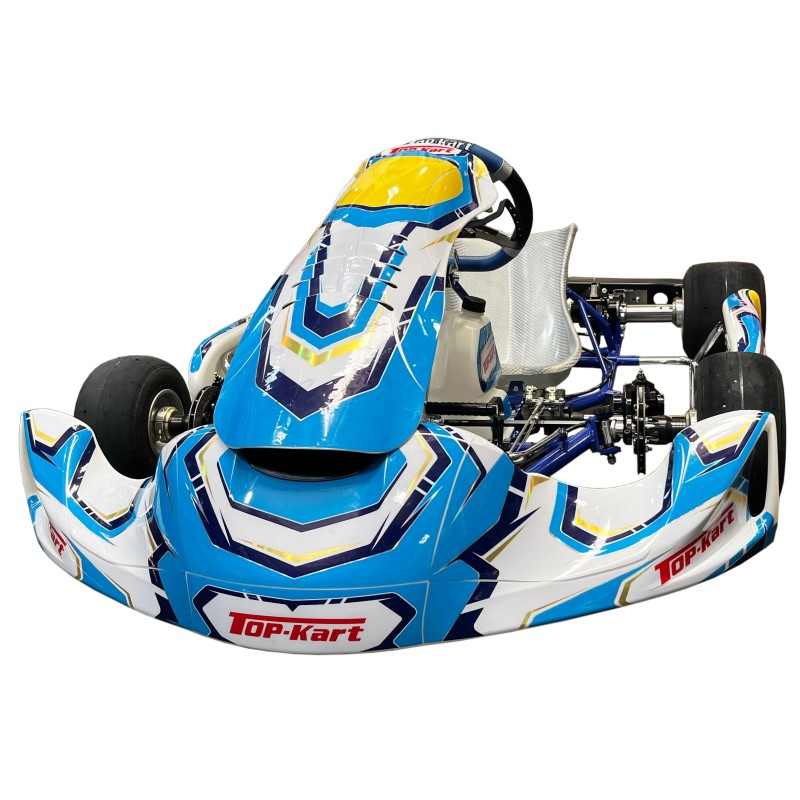

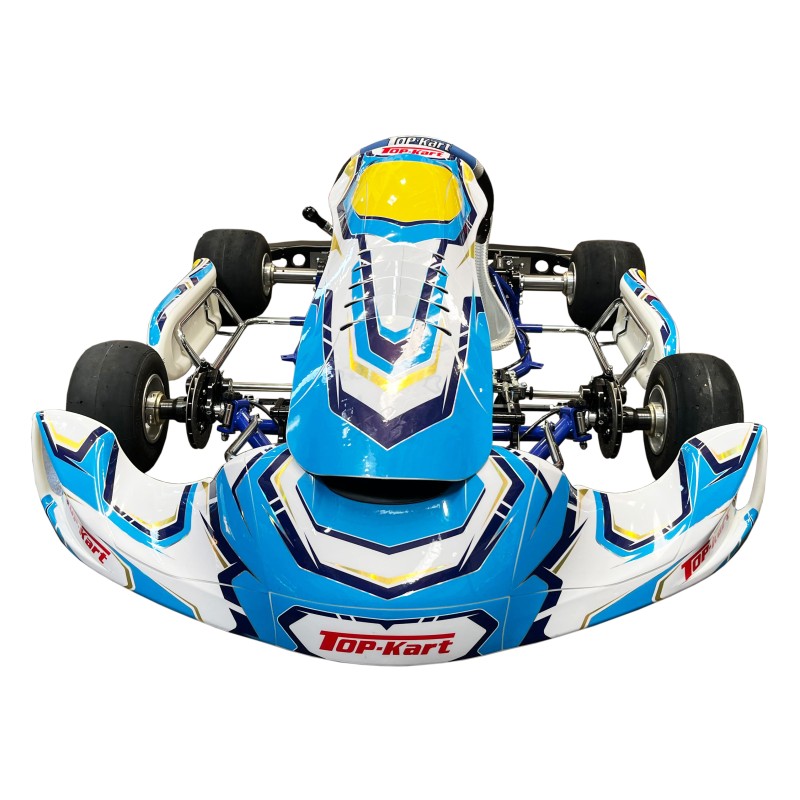

Chassis New Top-Kart Dreamer X5 KZ - NEW 2025

Complete Chassis Top-Kart KZ model Dreamer X5, CIK-FIA homologated

Top-Kart, synonymous with the highest quality MADE IN ITALY, presents the brand-new Dreamer X5 chassis, dedicated to gear-shifter categories.

Thanks to the experience gained by top international drivers, the Dreamer X5 stands out for its ability to adapt to different track conditions.

One of the strengths of this chassis is its simple setup: with just a few quick adjustments, the ideal configuration can be easily found, depending on both track conditions and the driver’s style.

NEW FEATURES:

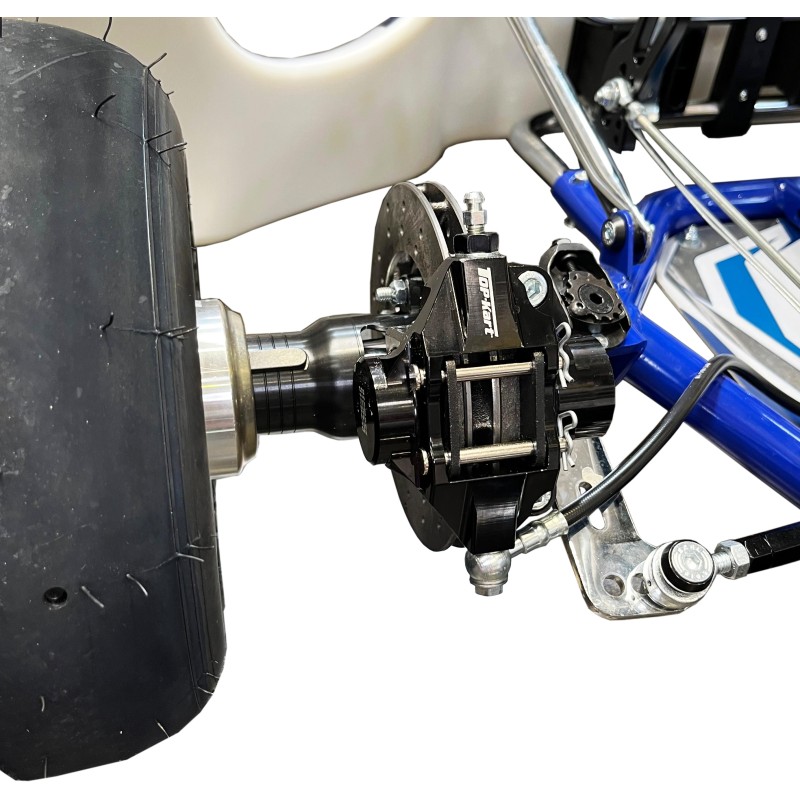

• New braking system (homologation 017-B4-10):

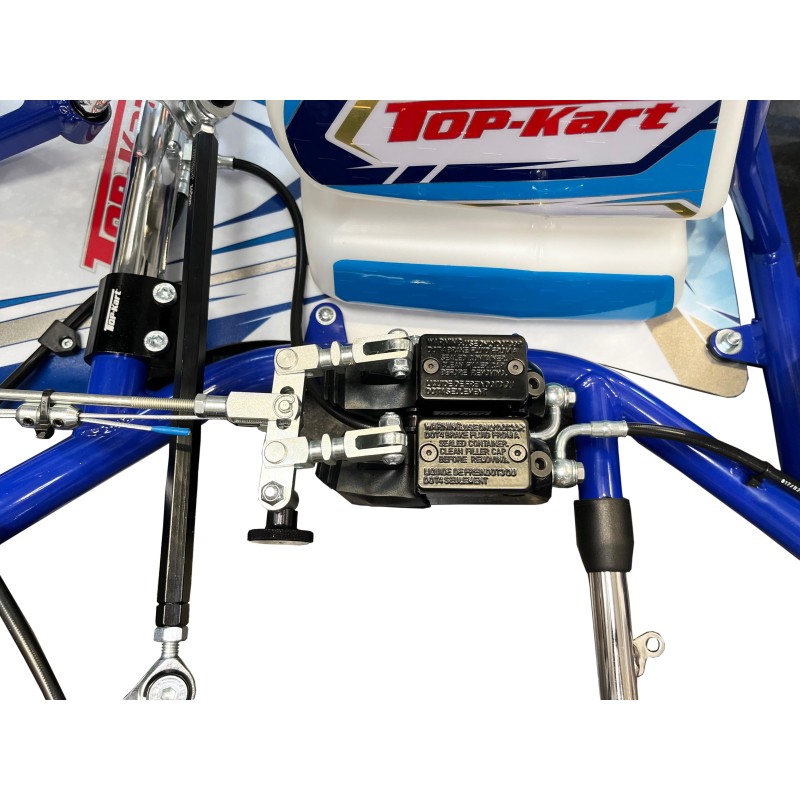

  • New Top-Kart brake pumps

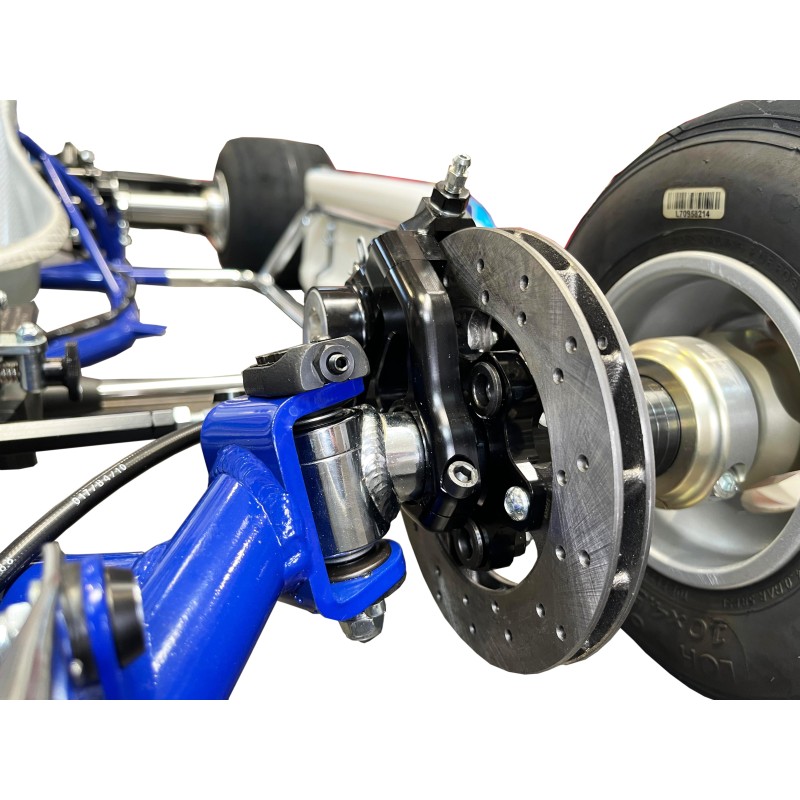

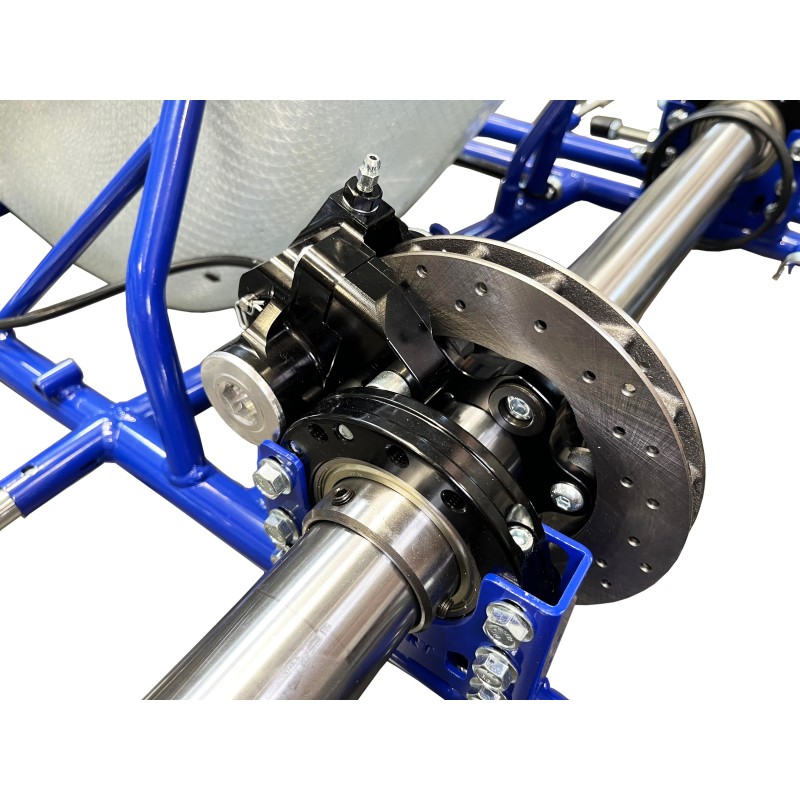

  • New Top-Kart floating brake discs

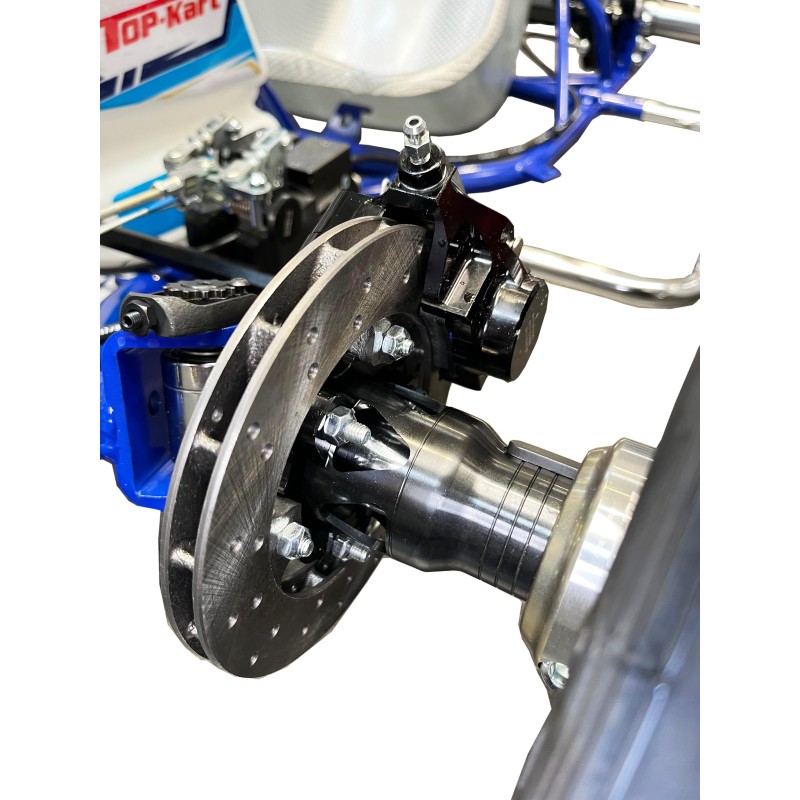

  • New Top-Kart brake caliper
  • New Top-Kart brake balance adjuster
• New 509 Bodywork Kit with updated Top-Kart graphics
• New rear aluminum shells
• New front spindles
• New steering column

Technical Specifications:

• CIK-FIA homologated 017-CH-66
• Chassis in 25CrMo4 steel, 30/32 mm diameter
• Wheelbase: 1040 mm
• Axle: D.50x1030x2 Top-Kart
• Adjustable front and rear height
• Steering column with three adjustment positions

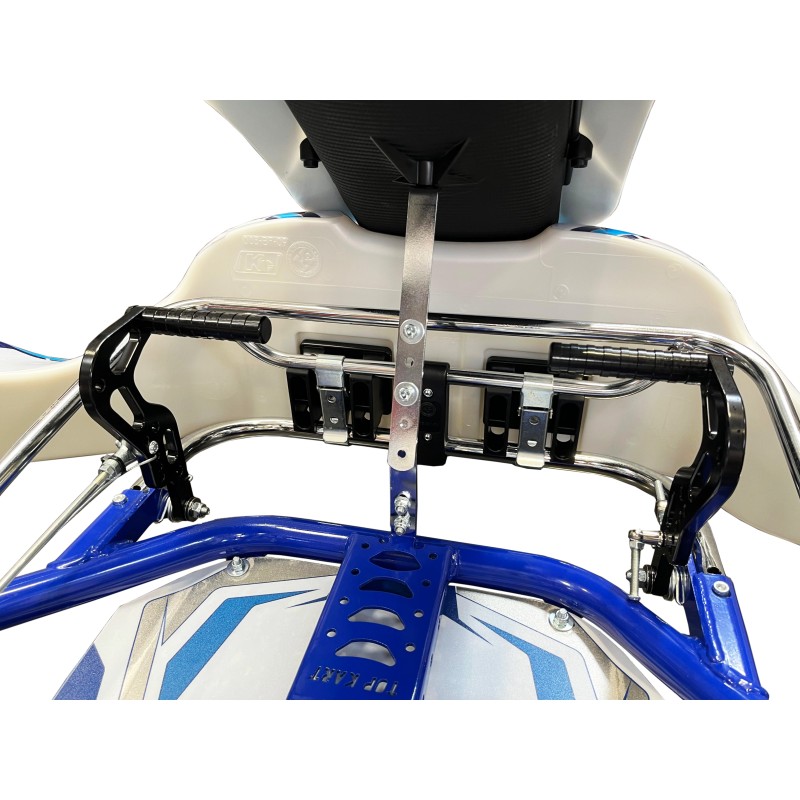

• Black anodized aluminum pedals with spring system
• Top-Kart magnesium wheelset (front 130 mm - rear 210 mm)
• Top-Kart aluminum wheel hubs (front 70 mm - rear 93 mm)
• Chrome spindles with 25 mm axle pin and 10 mm screw
• Brake caliper support in black anodized lightweight alloy
• Removable 9.0-liter fuel tank

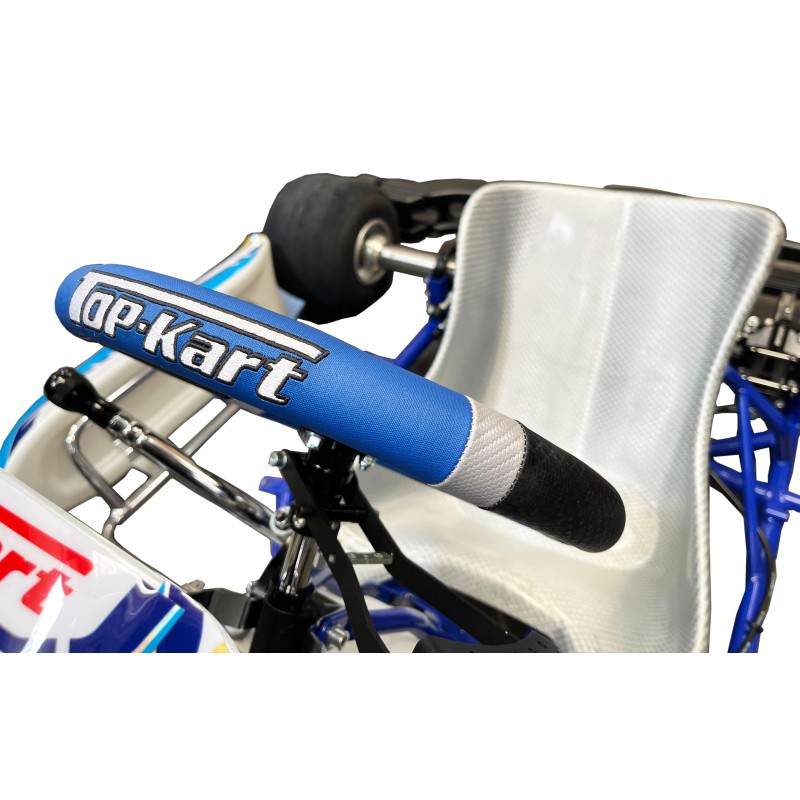

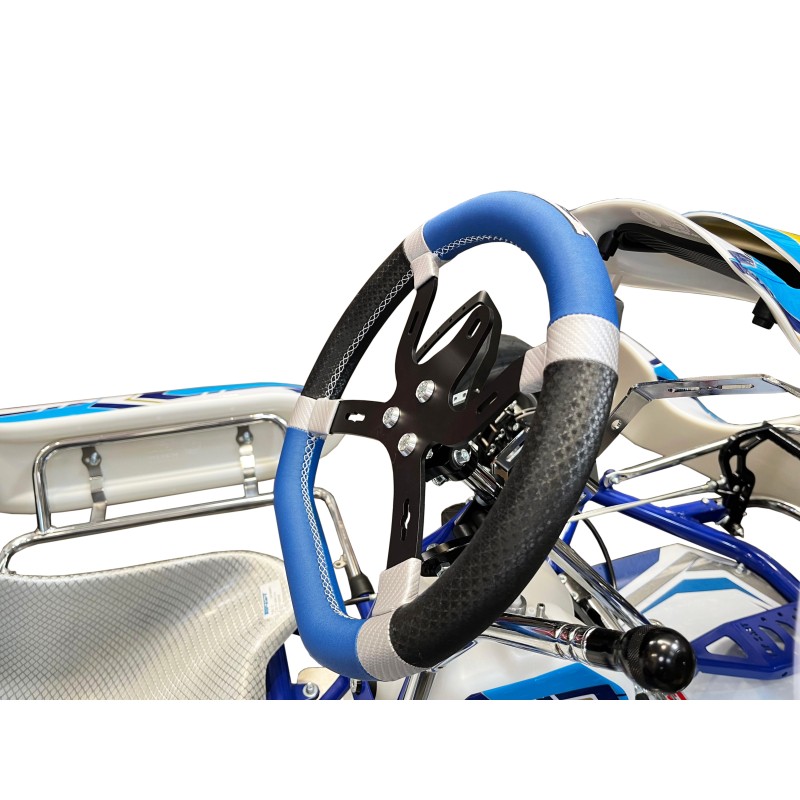

• Decorated Top-Kart steering wheel
• Front spoiler KG 509 pearl white with CIK quick-release system
• Side fairings KG 507 pearl white
• Number plate fairing KG 509 pearl white
• Rear bumper KG C3
• Top-Kart graphics applied on the floor, tank, and rear bumper

Attention: The seat is not included in the price.

ATTENTION: Due to manufacturer's trade policy we are not authorized to sell this frame in the United States. In the event that you purchase this product and complete the order, we will proceed with the refund (money transfer, voucher or exchange of goods) according to our policy reported in the "Terms and Conditions" section of our website.
for all purchases of this product you will need to contact our importer Topkart USA directly.
