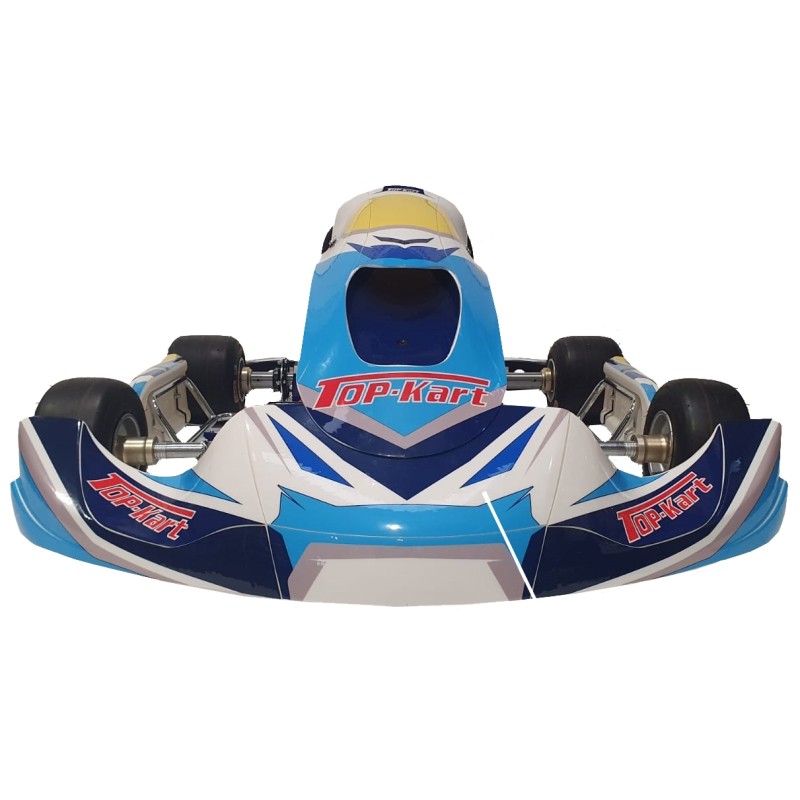

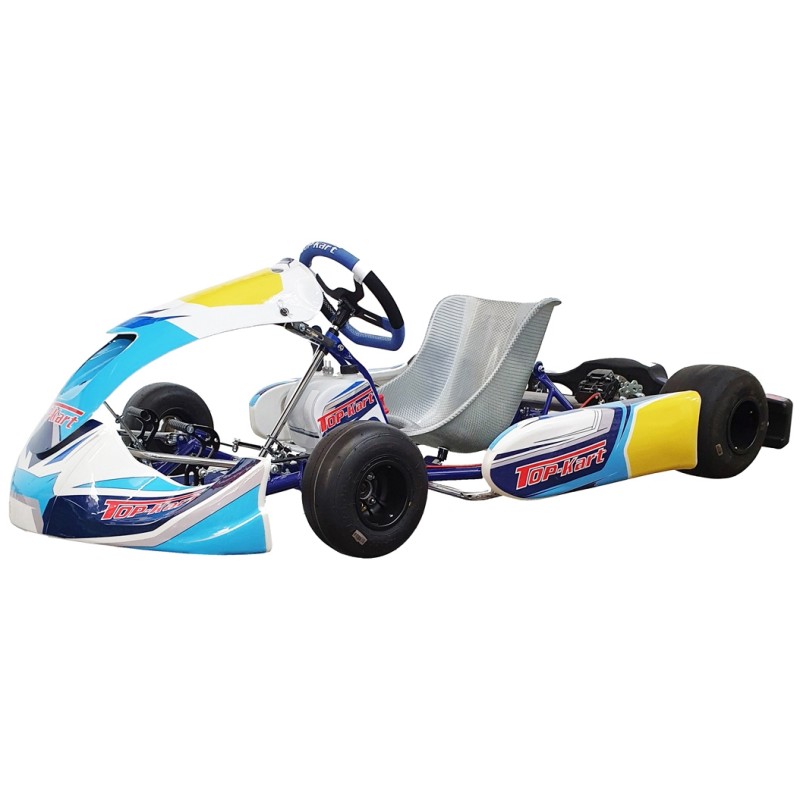

Chassis New Top-Kart Dreamer OK OKJ - NEW 2024 - SR30.2
3,278.68 €
1000-T04-09
Chassis complete new Topkart Dreamer OK OKJ (CIK FIA)
Make an Offer
Description

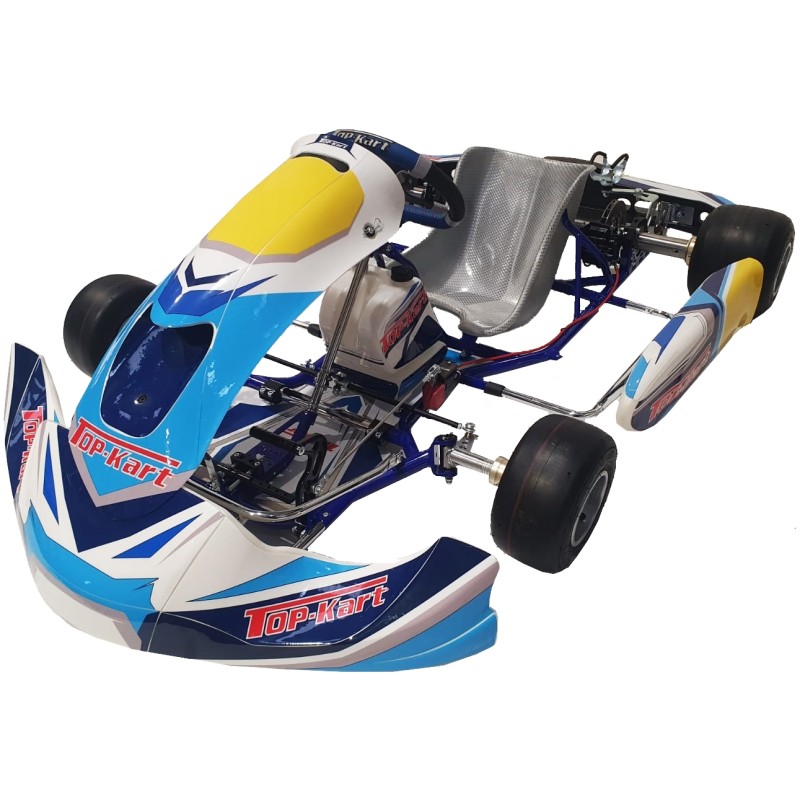

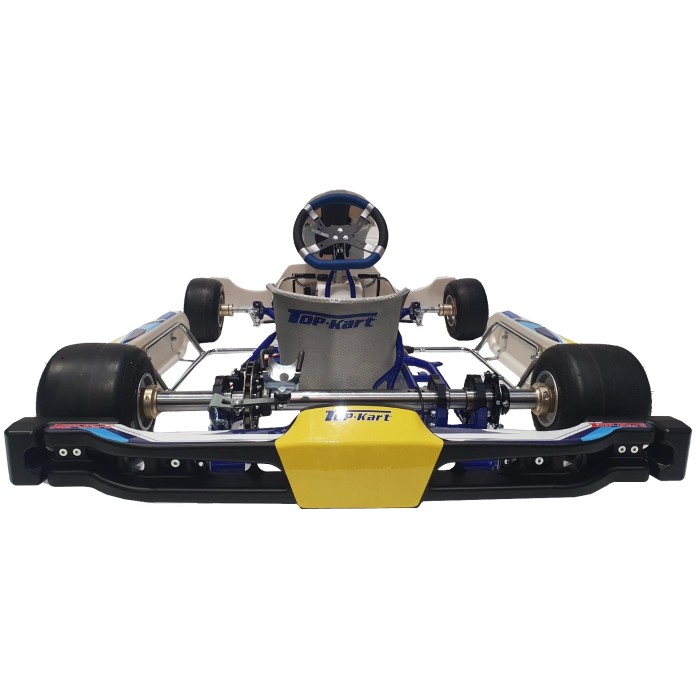

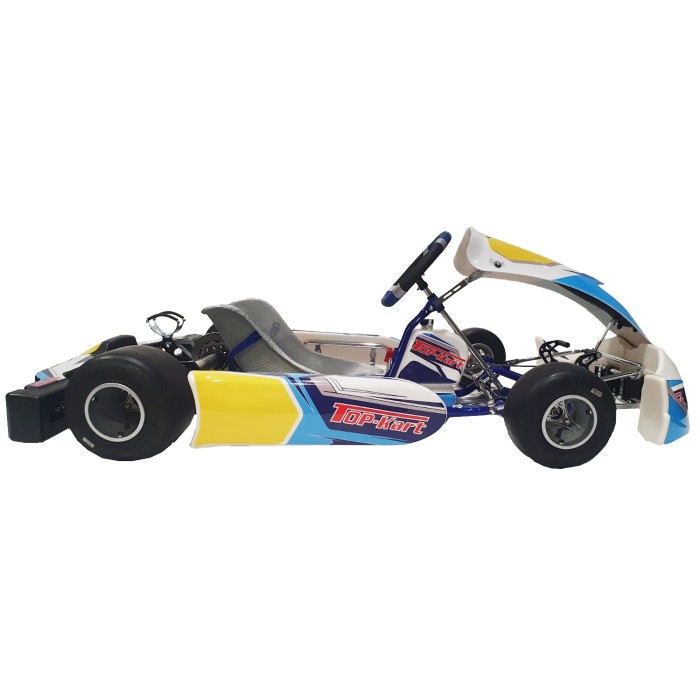

Complete chassis Top-Kart OK - OK Junior Dreamer model CIK FIA approved
Top-Kart, always representing the highest quality MADE IN ITALY, presents the brand new Dreamer chassis by categories single speed
Developed thanks to the experience of the best drivers in the international arena, the Dreamer is a chassis that adapts to different track conditions.
The simplicity of set-up is the strong point of this frame, with a few small adjustments and it is very easy to find the best set-up immediately when the track conditions vary or according to the driver's driving. The braking system, V11, is very "modular" avoiding blocking of the wheels during braking.
The SR30.2 model is recommended for all single-gear categories, for use with medium or hard tyres on tracks that offer a poor grip.
CIK FIA approved for all OK OK-J categories
| * Homologation currently valid CIK/FIA : 017-CH-66 |
|||||||||||||||||||
| * Pipes 25CrMo4 mixed D.30/32mm | |||||||||||||||||||
| * Wheelbase 1040mm | |||||||||||||||||||
| * Axle D.50x1030x2 | |||||||||||||||||||
| * Aluminium Bearing Carrier (Magnesium Optional) |
|||||||||||||||||||
| * Adjustable front and rear ride height |
|||||||||||||||||||

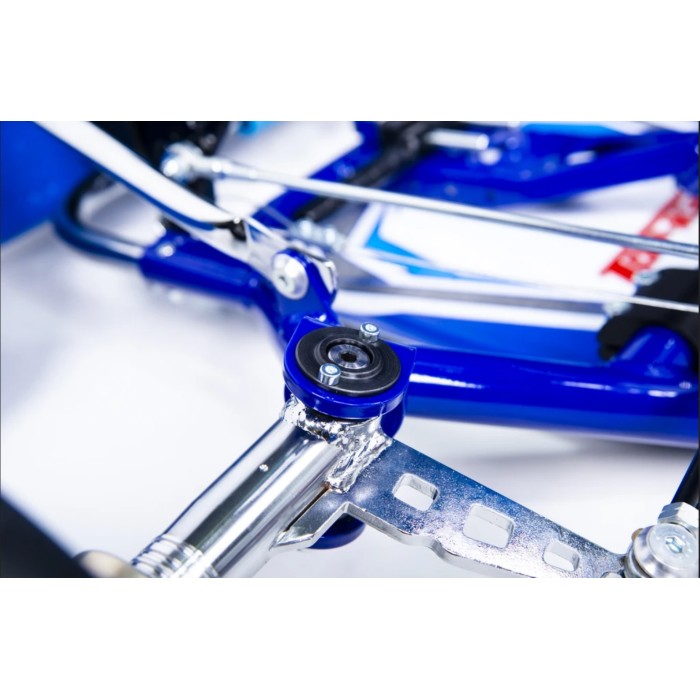

| * Steering column with three Ackerman positions |
|||||||||||||||||||

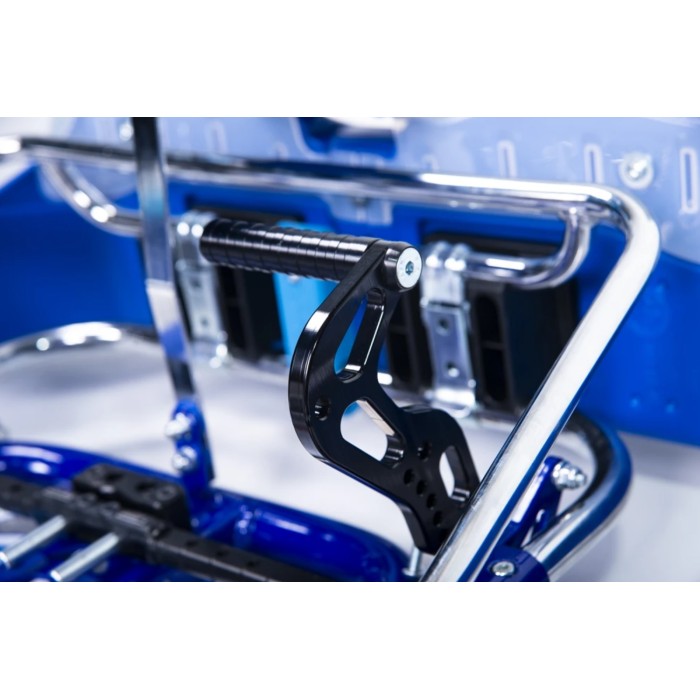

| * Aluminum pedals with spring system |
|||||||||||||||||||
| * Magnesium wheels set TOP-KART 130-210 (Optional Douglas Wheels) | |||||||||||||||||||
| * TOP front/rear wheel hubs (front 91mm, rear 93mm) |
|||||||||||||||||||
| * Chrome stub axles with D.25mm shaft with 10mm screw |
|||||||||||||||||||

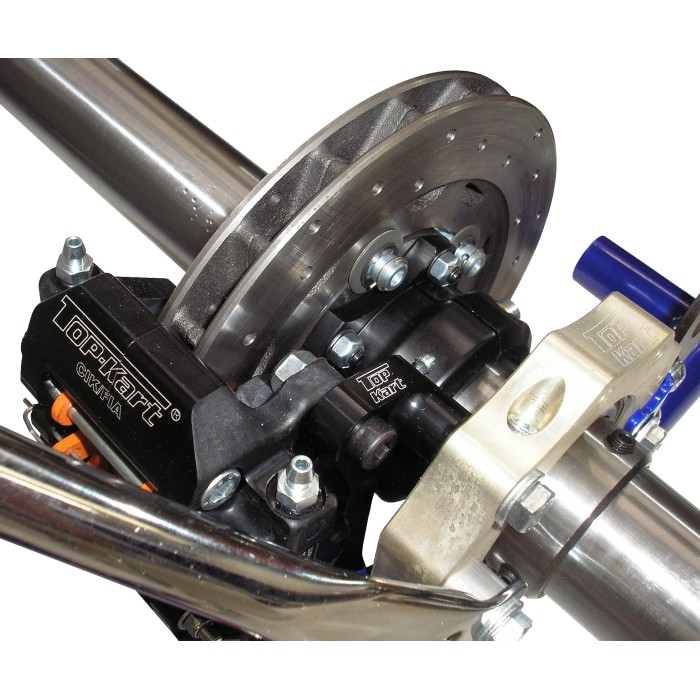

| * Self adjusting V11 brake system CRG |
|||||||||||||||||||
| * Light alloy brake caliper support black anodized |
|||||||||||||||||||
| * Seat NOT INCLUDED |
|||||||||||||||||||
| * Removable Tank 9,0lt. | |||||||||||||||||||

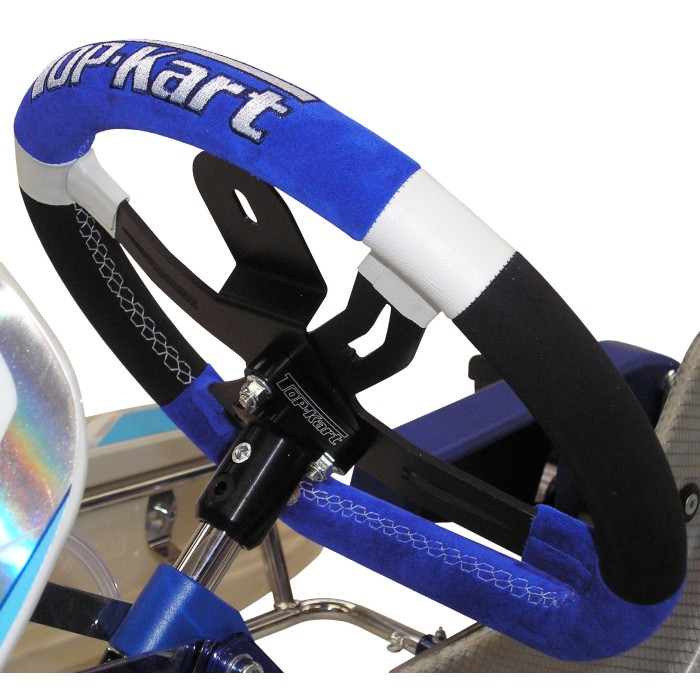

| * Steering Wheel Alcantare with logo TOP-KART |
|||||||||||||||||||
| * Front spoiler KG 507 pearl white, with CIK fixing system | |||||||||||||||||||
| * Side pods KG 507 pearl white |
|||||||||||||||||||
| * Front Panel KG 507 pearl white (Optional 508) |
|||||||||||||||||||
| * Rear Bumper KG C3 | |||||||||||||||||||
| * Sprocket protection blue |
|||||||||||||||||||
| * TOP-KART graphics, including floor panel, tank and rear bumper |
|||||||||||||||||||

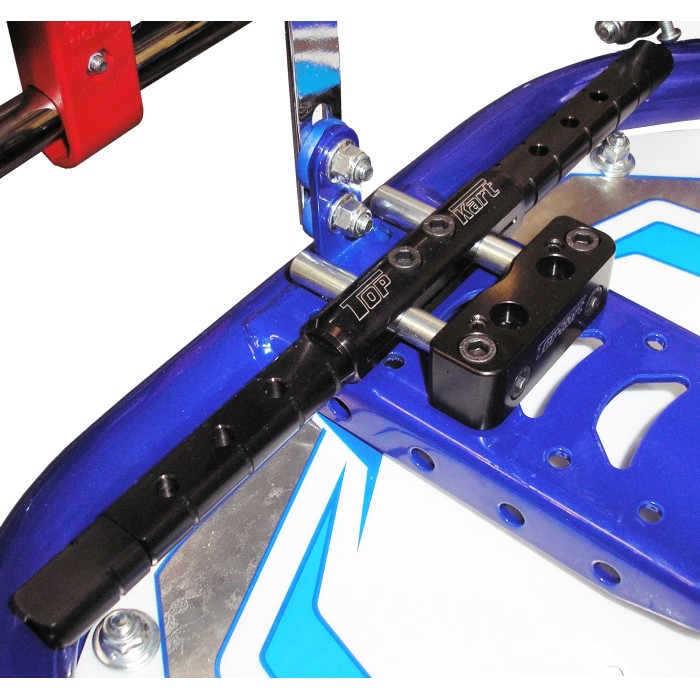

| * Adjustable aluminum foot rest black anodized |
|||||||||||||||||||
Attention: Seat not included in price
ATTENTION: Due to manufacturer's trade policy we are not authorized to sell this frame in the United States. In the event that you purchase this product and complete the order, we will proceed with the refund (money transfer, voucher or exchange of goods) according to our policy reported in the "Terms and Conditions" section of our website.
for all purchases of this product you will need to contact our importer Topkart USA directly.
Here is the link: https://shop.topkartusa.net/collections/chassis/products/sr30-2
