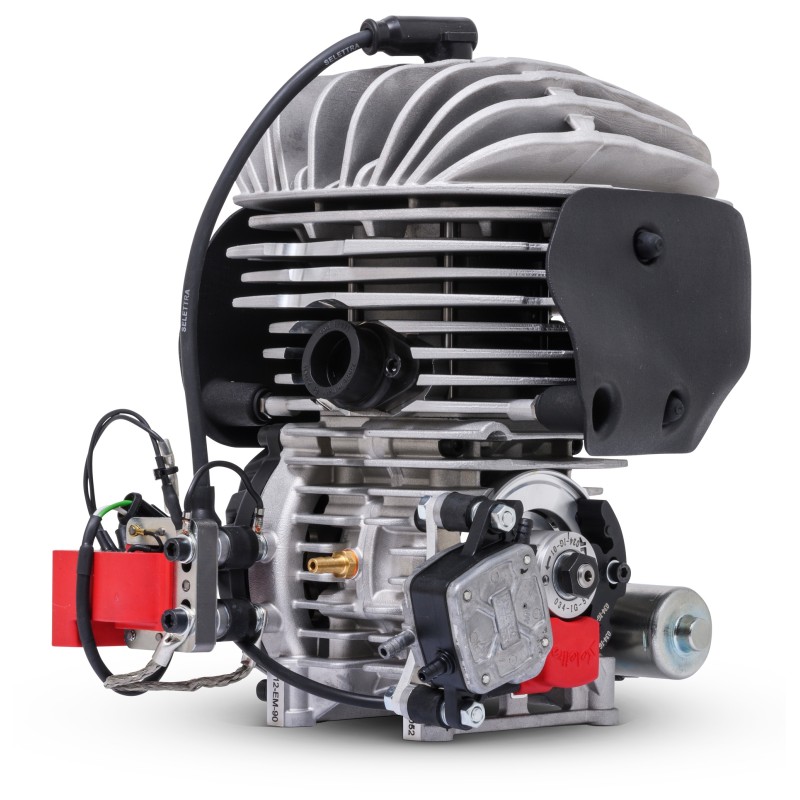

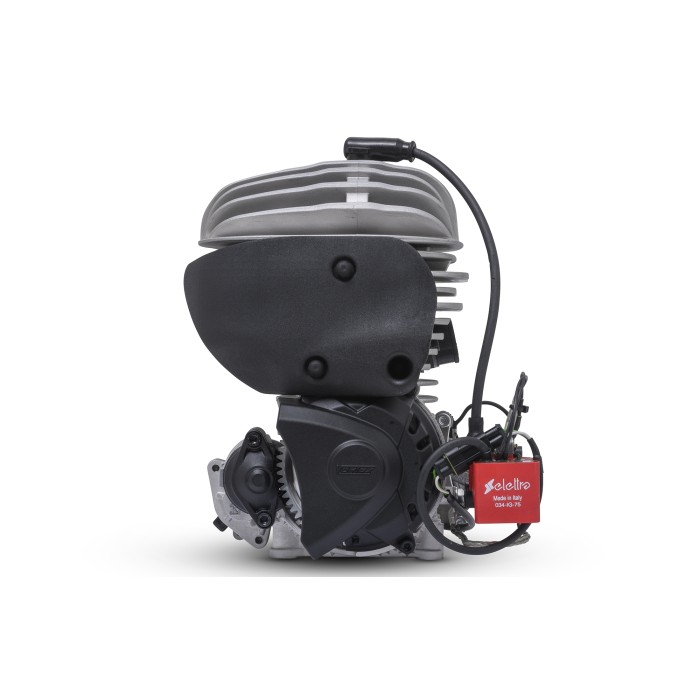

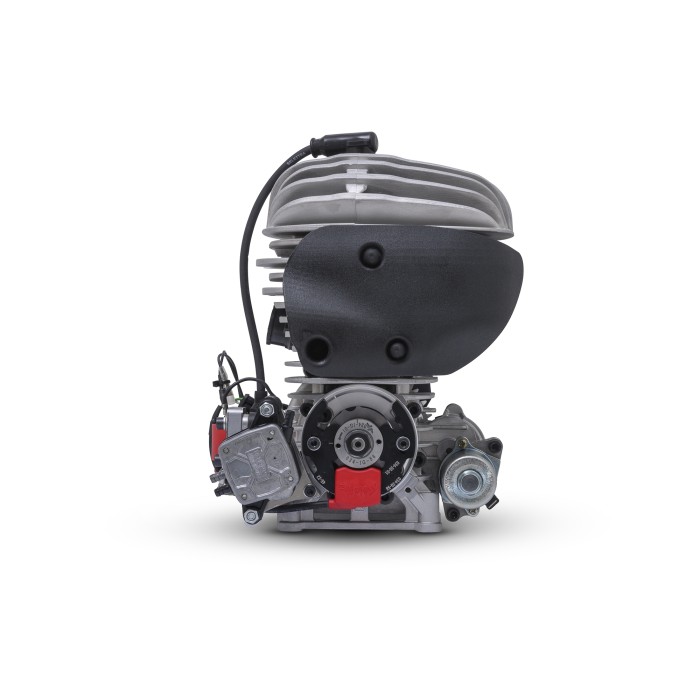

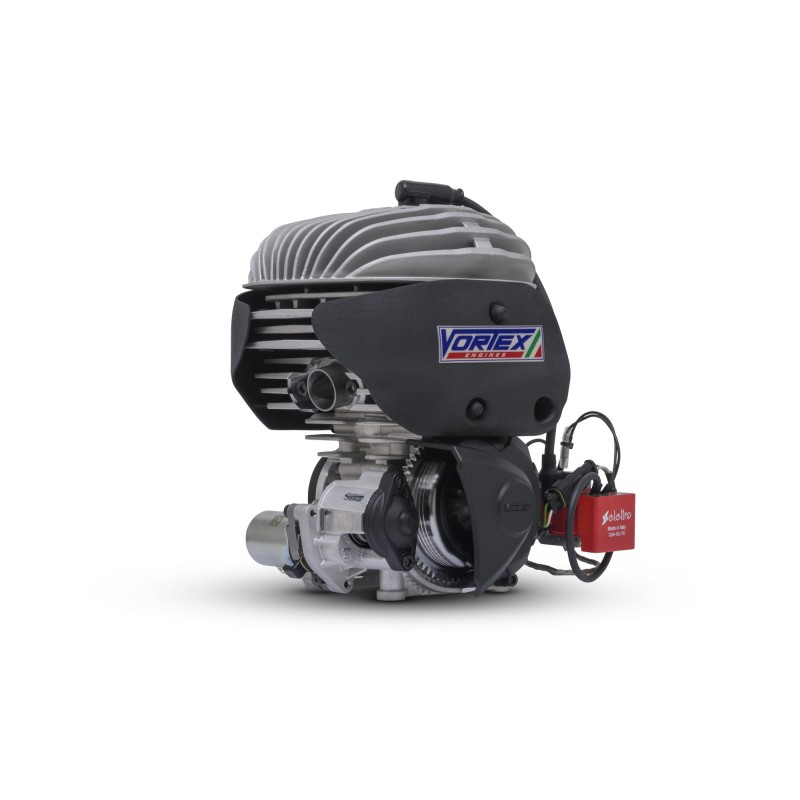

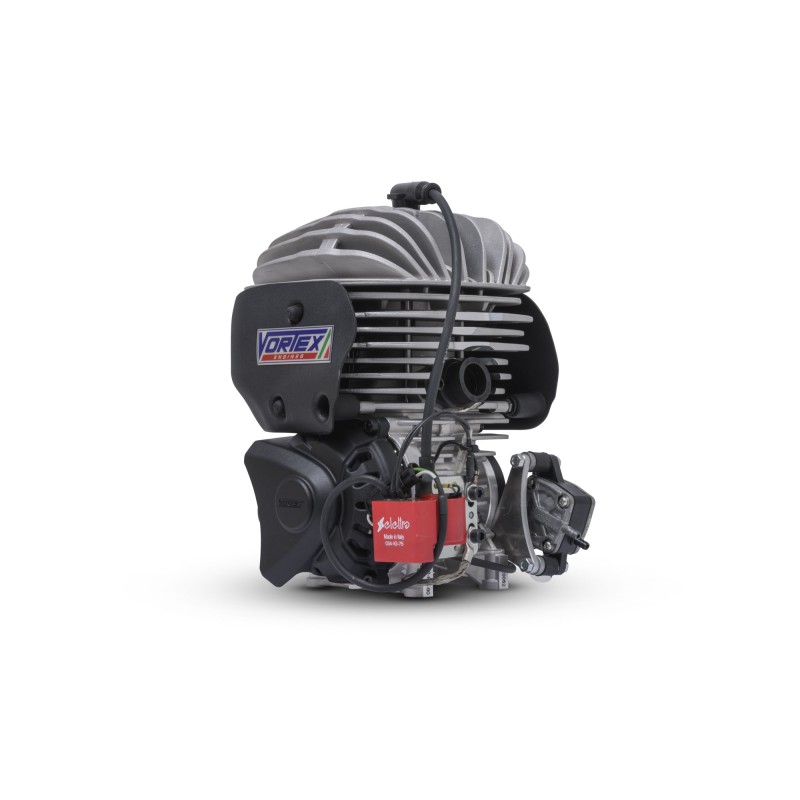

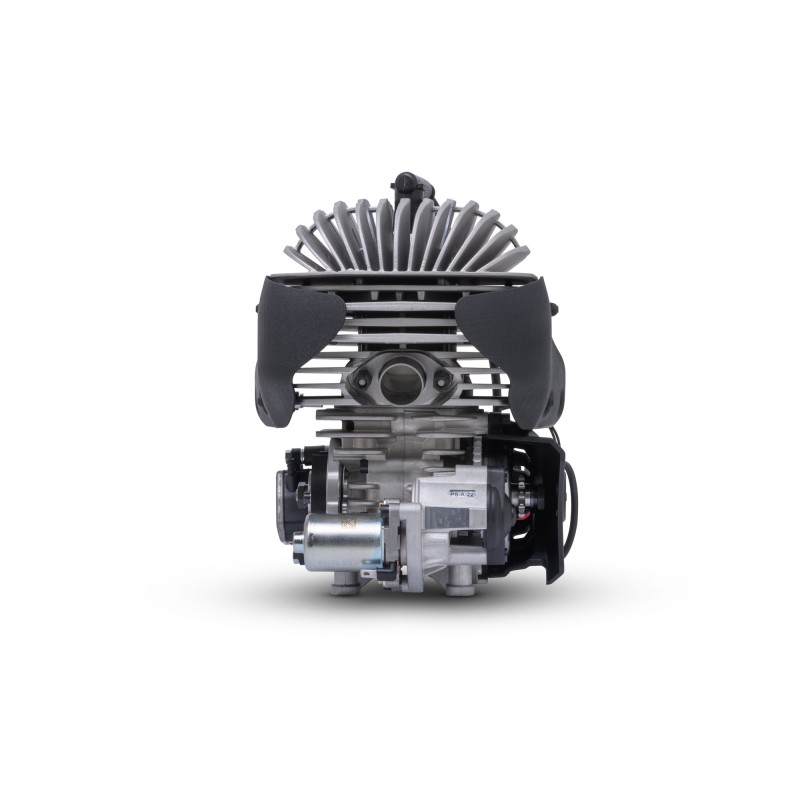

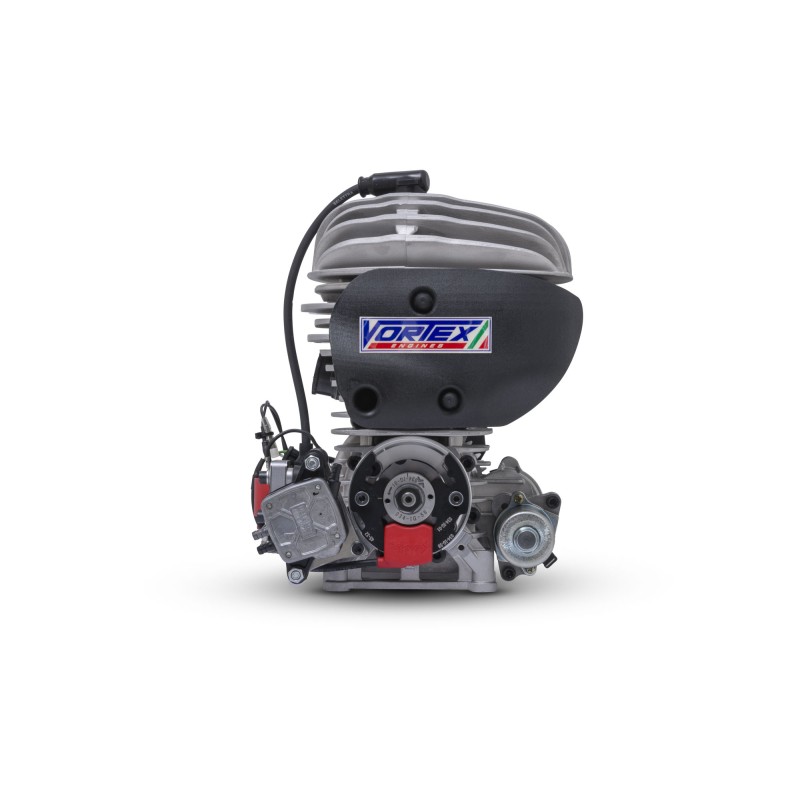

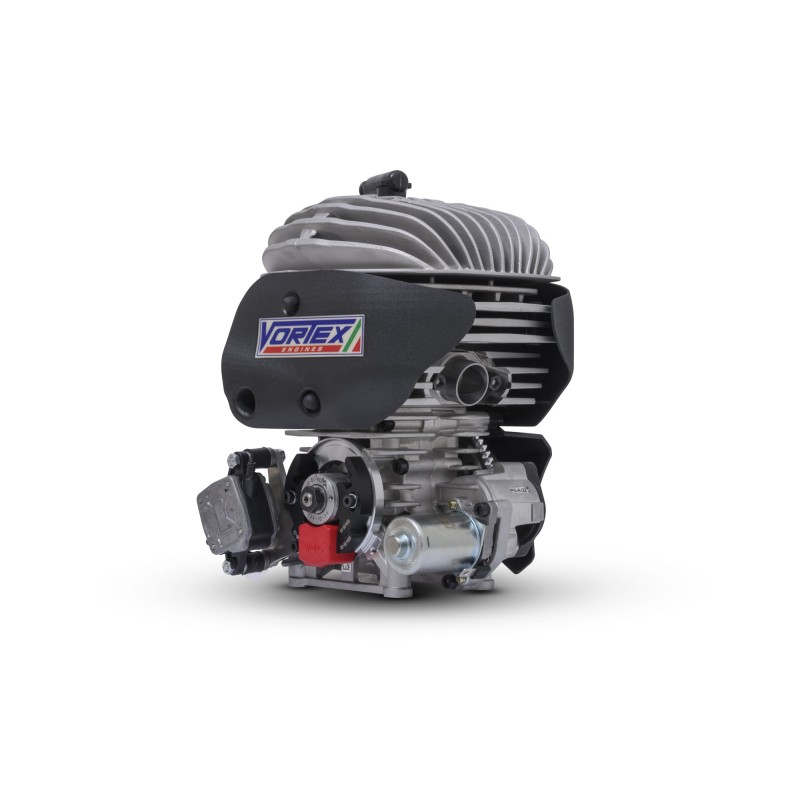

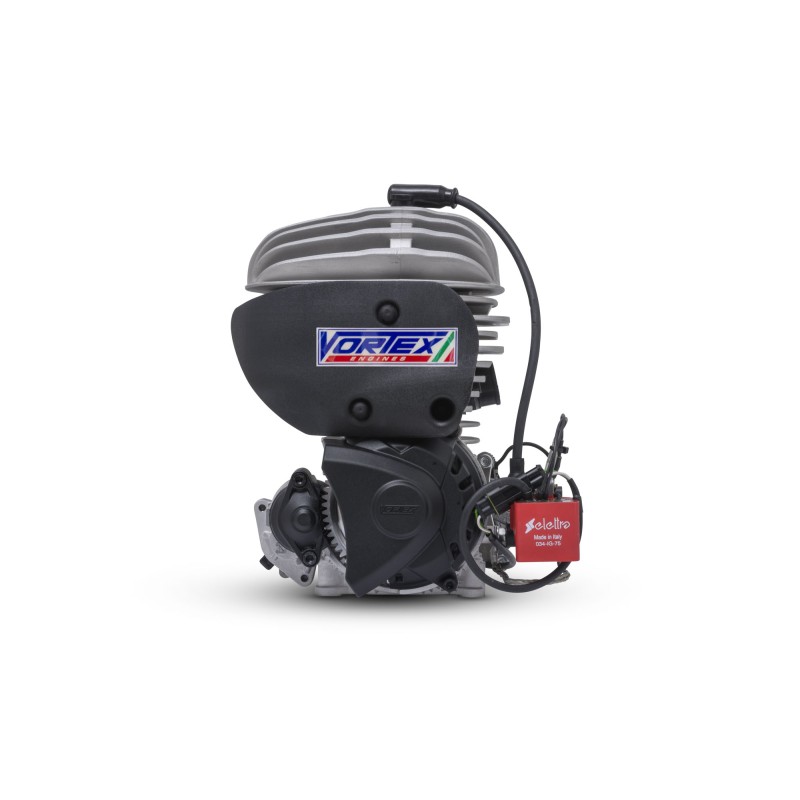

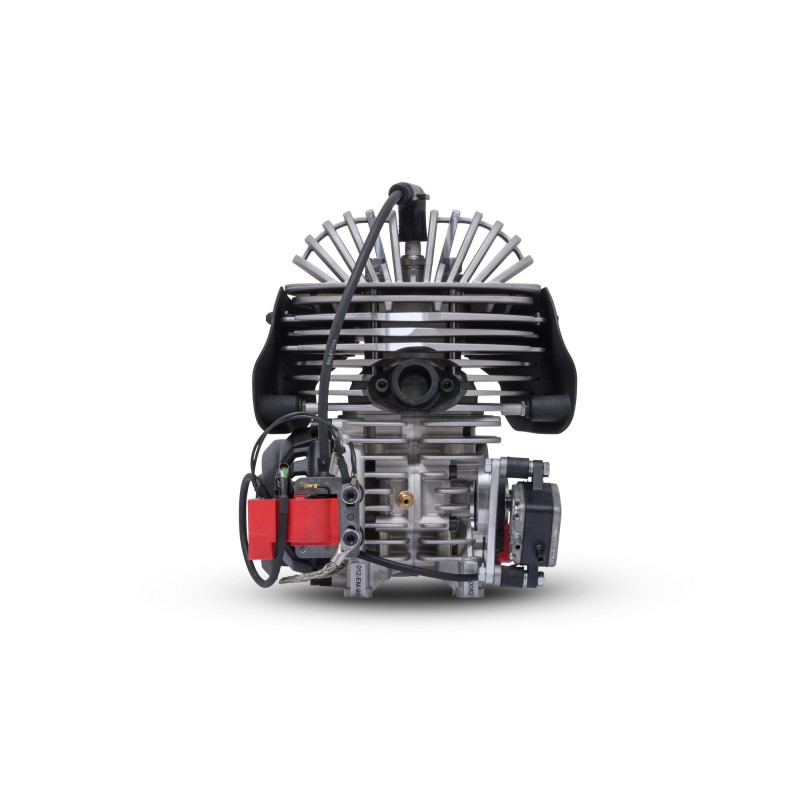

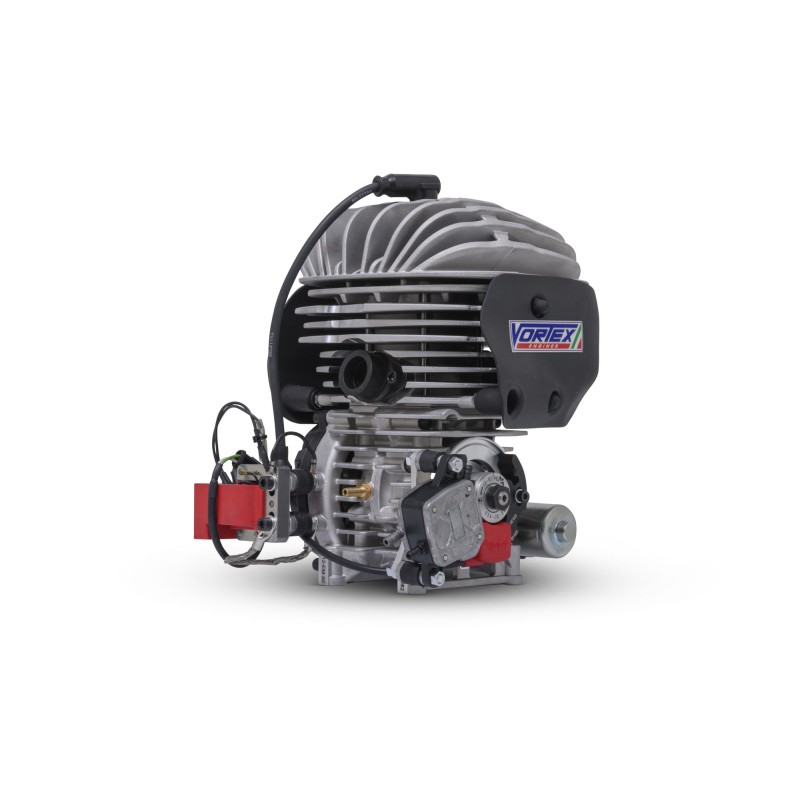

Engine Vortex MINI VTM (FIA Karting)

Last but not least, the Vortex VTM engine for the MINI class. This is a new design compared to the past, featuring a newly developed head, cylinder and crankcase with increased radiating surfaces. As far as the cylinder is concerned, the geometries of the exhaust and transfer ports have been renewed, while from a manufacturing point of view, as for the VTS and VTJ models, the VTM also benefits from an additional machining process, the paired crankcase boring, which improves quality, reliability and performance.

Cooling Air cooling
Bearings Roller bearings
Bore and stroke 42x43 mm
Maximum speed 14,000 RPM electronically limited
Ignition Selettra 034-IG-58
Carburetor Dell’Orto PHBG Ø18 mm

    Piston Port
    2-transfer intake
    Integrated electric starter
    Dry centrifugal clutch
    Premix lubrication
    Cylinder with CNC-machined cast iron liner
