AIM Track Day Kit - SmartyCam 4 Corsa + Solo 2 DL - Complete Kit

AIM Track Day Kit - SmartyCam 4 Corsa + Solo 2 DL - Complete Kit

AIM Track Day Kit is the complete kit designed for drivers who want to easily record, review and analyze their track sessions.

The system combines SmartyCam 4 Corsa with Solo 2 DL, allowing Full HD video recording with data overlay and synchronized GPS / ECU information to analyze driving, racing lines, lap times and vehicle behavior.

During the session, parameters such as speed, RPM, lateral acceleration / G-Force and track position can be recorded and analyzed, helping identify where lap times can be improved.

Solo 2 DL provides the key session data, while SmartyCam 4 Corsa records video with configurable overlays. With RaceStudio 3, sessions can be reviewed, laps compared and synchronized data analyzed to improve driving performance and vehicle setup.

Features
✔ Complete kit for track days and circuit use
✔ Full HD video with data overlay
✔ Solo 2 DL GPS laptimer with integrated data logger
✔ OBDII connection for ECU data acquisition
✔ Display of speed, RPM, G-Force and track position
✔ Lap times, lap count and predictive lap timing
✔ Graphic overlays configurable through RaceStudio 3
✔ Session analysis, lap comparison and synchronized data

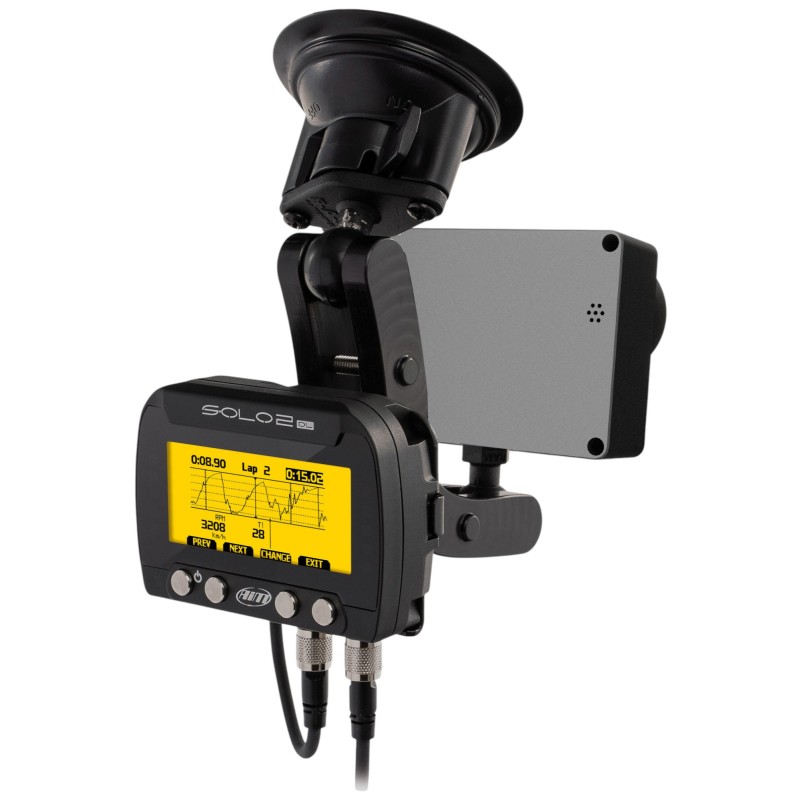

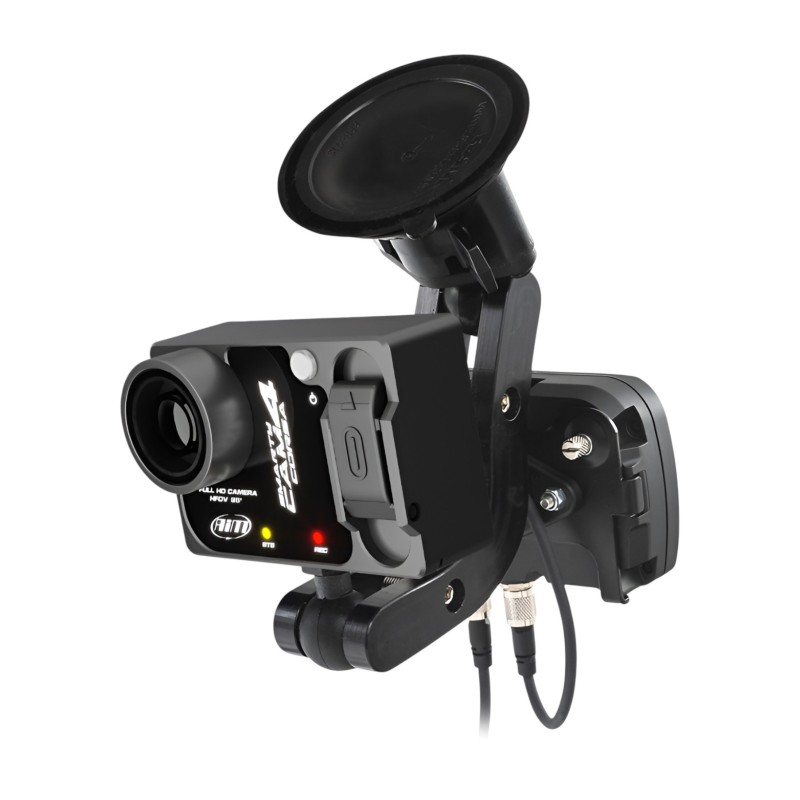

✔ Dual bracket for SmartyCam 4 Corsa and Solo 2 DL
✔ Ideal for improving driver performance and vehicle behavior

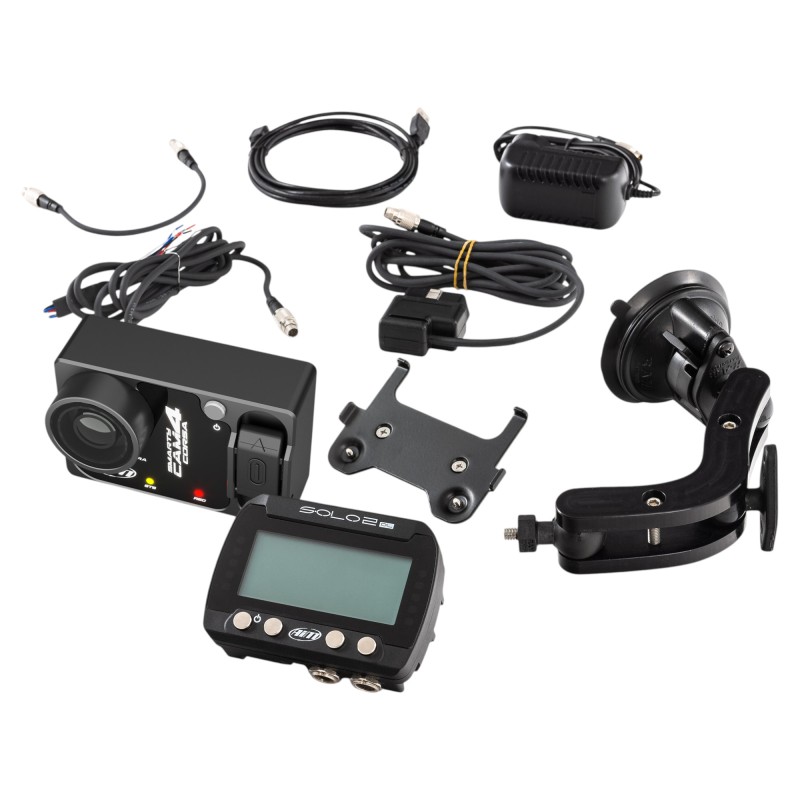

In the box
✔ AIM Solo 2 DL with OBDII connection
✔ SmartyCam 4 Corsa with 85° lens
✔ Battery charger with adapter
✔ Roll cage mount
✔ Suction cup mount
✔ USB cable
✔ Required wiring
✔ Mounting hardware
✔ RaceStudio 3 software free download

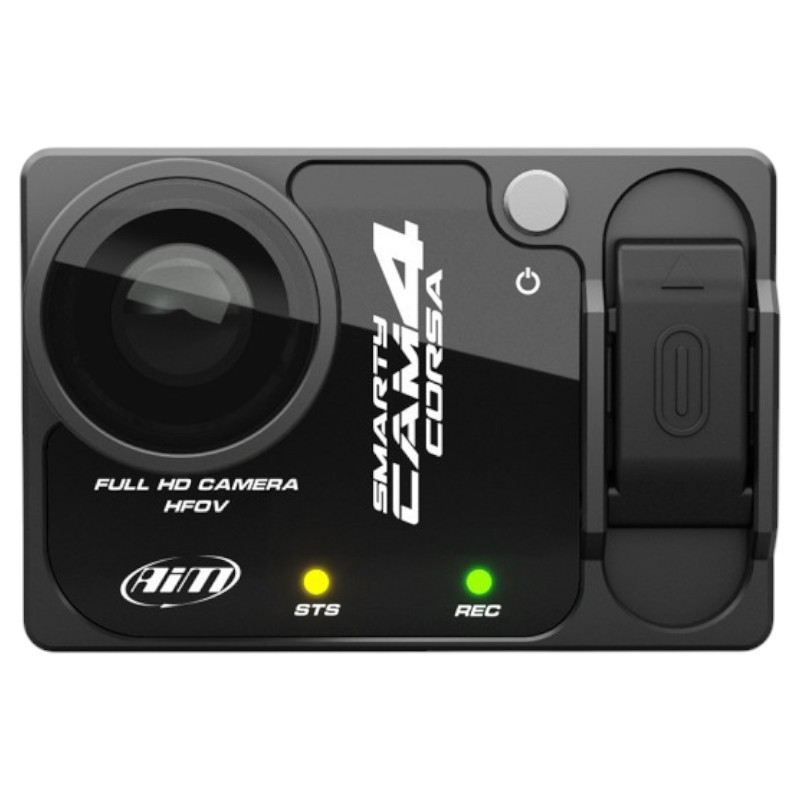

SmartyCam 4 Corsa technical data
❖ Lens: 85° low distortion
❖ Sensor: Sony CMOS 12 MP
❖ Stabilizer: Sony LSI
❖ Video resolution: 1920 x 1080 pixels
❖ Video format: H.264 / H.265 configurable
❖ Frame rate: 30 / 60 fps
❖ Streaming: USB or Wi-Fi
❖ Connections: USB - Wi-Fi - BLE Bluetooth Low Energy
❖ External power supply: 9-15V
❖ Supported memory: USB-C Card up to 2 TB
❖ Internal battery: rechargeable LiPo
❖ Body: anodized aluminum
❖ Front protection: sapphire glass
❖ Protection rating: IP65
❖ Dimensions: 94 x 63 x 28.7 mm
❖ Weight: 260 g including battery

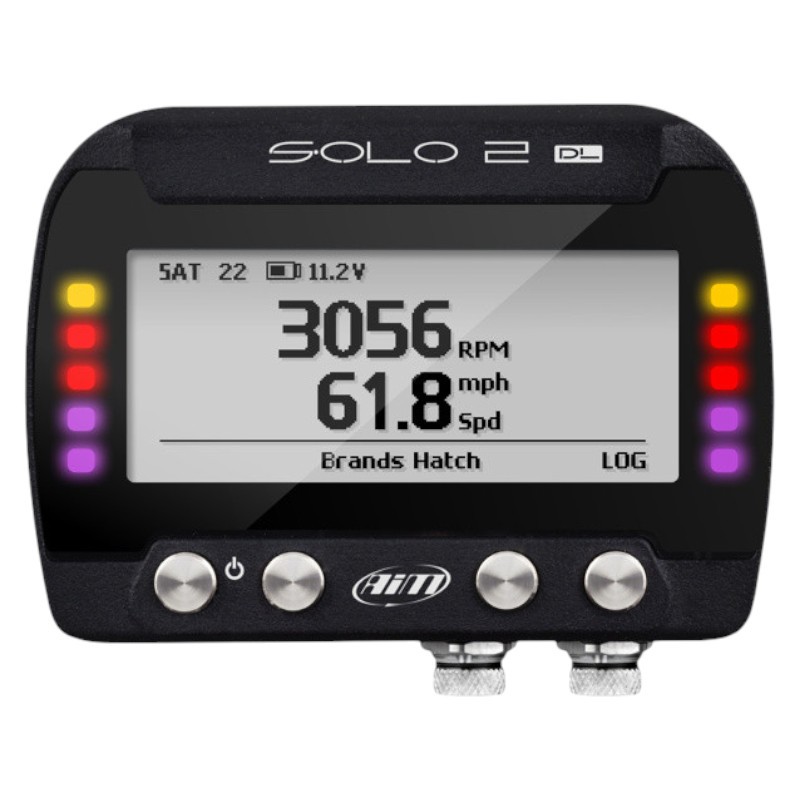

Solo 2 DL technical data
❖ Type: GPS laptimer with data logger
❖ GPS receiver: multi-constellation up to 25 Hz
❖ ECU connections: CAN - K-Line - RS232 - OBDII
❖ Display: high-visibility graphic display
❖ Configurable pages: up to 8
❖ LED: 10 programmable RGB LED
❖ Internal memory: 4 GB
❖ Connection: integrated Wi-Fi
❖ Power supply: internal rechargeable battery or external 12V
❖ Track database: automatic circuit recognition
❖ Software: RaceStudio 3
