Corsaro-II PRO COLOR Starlane - GPS LapTimer Gauge

THE MOST INNOVATIVE

CORSARO is certainly, in its own right, the most innovative product in the sector for the philosophy with which it was conceived and designed, as well as for the technological condensate that it contains in a well-kept design with compact dimensions.

THE ONLY ONE IN THE WORLD WITHOUT CABLES

Corsaro is the only system in the world that allows you to have no annoying cables between the steering wheel and the engine, thanks to the wireless data transmission between the small WID-D module, located behind the seat, and the display unit at the wheel.

INTEGRATED LIBRARY WITH OVER 1000 CIRCUITS

It allows immediate use thanks to the integrated library with more than 1000 circuits complete with intermediates, among which the device automatically recognizes the current one. In the remote event that your circuit is not included in the library, the SAFD-2 (Starlane Automatic Finish line Detection) function will automatically divide the circuit after the first 2 laps covered, allowing you to see your times and intervals, already from the first session without intervening on the stopwatch.

The lightest and most compact

With only 95g of weight it is by far the lightest device for the kart steering wheel. The use of the Touch Screen has also made it possible to contain the dimensions, while maintaining the maximum readability of the display.

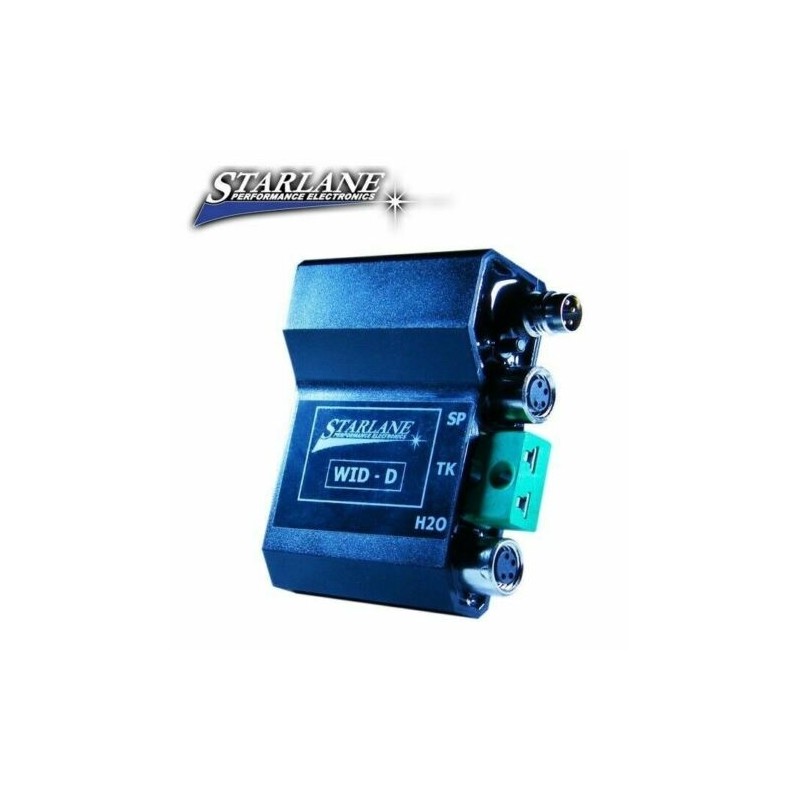

MINIATURE WID-D WIRELESS MODULE

The WID-D wireless module is included as standard in the package of Corsaro-II PRO Kart-Scooter Package, it is equipped with an internal rechargeable battery that allows up to 7 days of autonomy on the track.

Also included in the package are the water temperature sensor, the RPM cable and the aluminum sleeve to mount the temperature sensor on the radiator pipe.

INCLUDED IN THE PACKAGE:

-N° 1 Corsaro-II PRO Instrument

-N° 1 WID-D expansion module

-N° 1 RPM detection cable

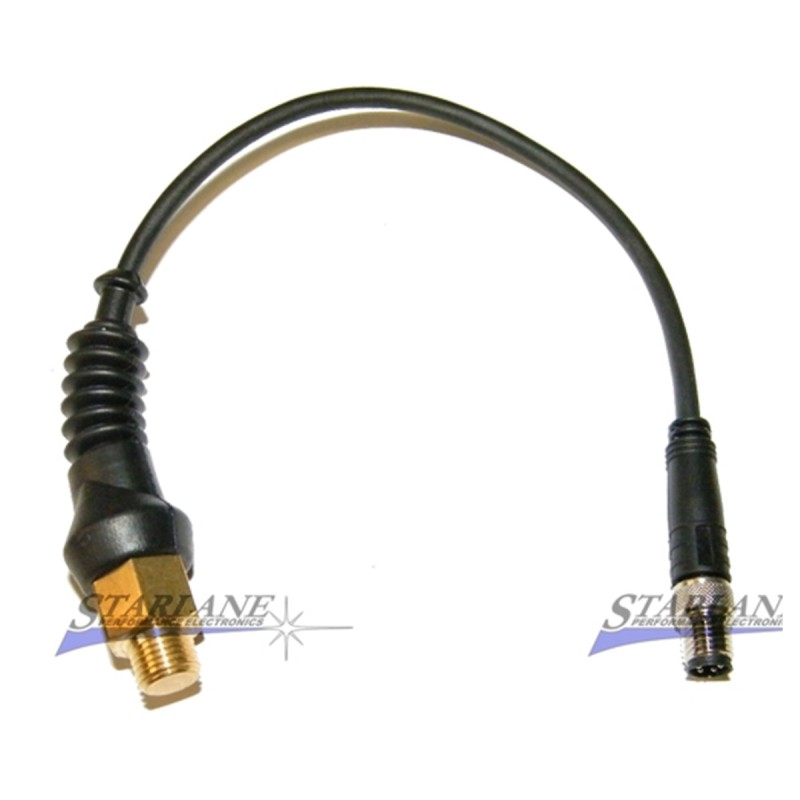

-N° 1 Water Temperature Sensor (CH2OM10)

-N° 1 Aluminum sleeve for water temperature sensor (MAN19)

-N° 1 Elastic Supports Kit

-N° 2 Kit fixing to tear Dual Lock Adhesive

-N° 1 Power cable from 12V vehicle battery

-N° 1 WID-D power cable + TPS input

-N° 1 USB charging cable WID-D

-N° 1 Note User Manual

INPUTS AVAILABLE ON THE MODULE

-Water Temperature

-Thermocouple K for exhaust gases

-Engine revolutions

-Analog 0-5V (TPS or Steering Sensor)

-Wheel speed

NO CABLES ON THE STEERING WHEEL

LATERAL AND LONGITUDINAL ACCELERATION

Specifications of CORSARO-II PRO Kart-Scooter Package

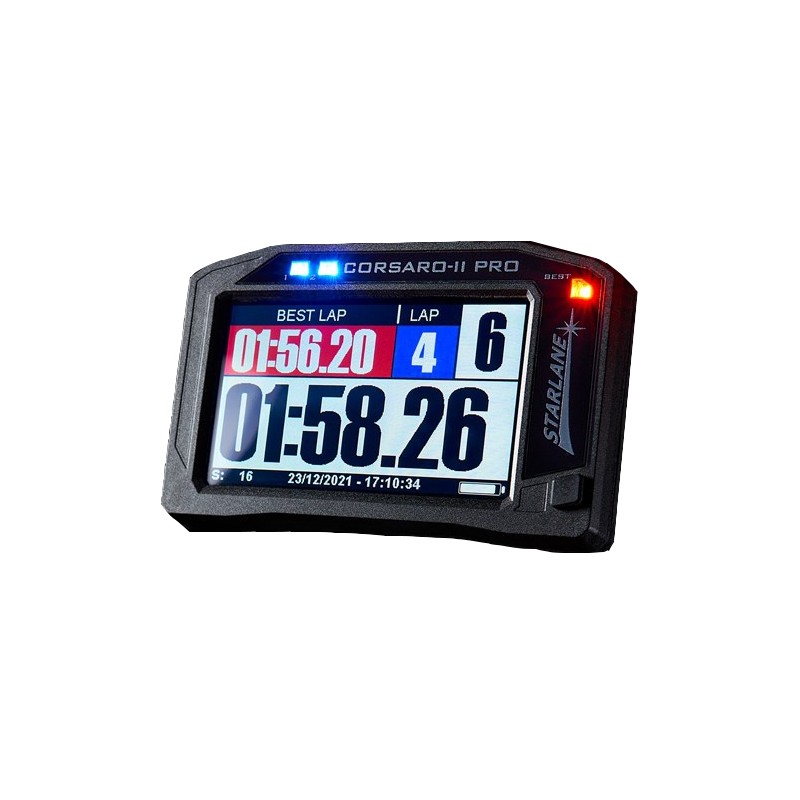

Automatic stopwatch with 1/100th of a second resolution

GPS+GLONASS+GALILEO triple constellation detection system at 10Hz. with aeronautical algorithms

Integrated library with over 1000 circuits with relative intermediates

Predictive Timing function with 3 reference lap selection options

Automatic goal and intermediate positioning function without any user intervention

(SAFD-2)

Inertial Pack functionality with Tilt Angle indication

Calculation of the Achievable Ideal Time

Calculation and visualization of 3 intermediates

Multilingual menu (Italian, English, German, French, Spanish)

Digital tachometer*

Speed indication from GPS

Gear indicator on*

Water Thermometer*

Thermocouple Thermometer K 1000°*

Adjustable water temperature and thermocouple alarms*

Max Reading Speed = 32000; max speed = 350 Km/h or 218 Mah*

Adjustable off-turn flash*

Number of pulses per RPM reading that can be set*

Double hour counter for engine maintenance

Bluetooth 4.0 data download

Memory of 999 rpm manageable in 99 sessions

Cyclic memory management with automatic deletion of older sessions

Storage of maximum values of RPM, Temp. Water, Temp. Unloading and Speed for each lap* Speed indication in Km/h or Mph*

Auto-off can be set

Adjustable energy-saving functions

Settable main screen

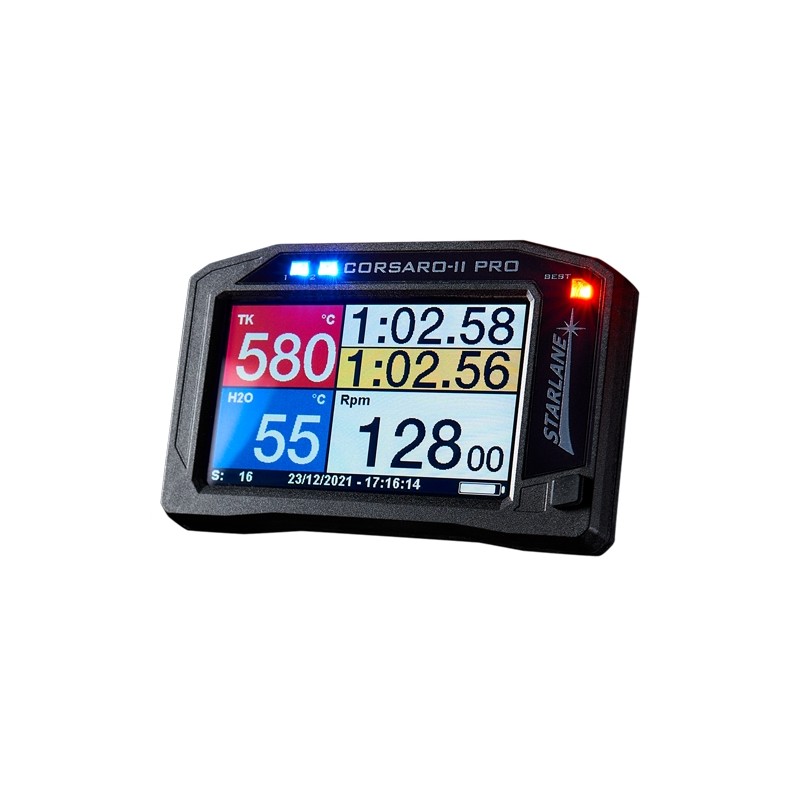

400x240 Backlit Color Transflective TFT Display with Touch Screen

Water resistant

Dimensions: larg. 95 mm - height 61 mm - depth 19,5 mm - weight 95 g

Power supply: internal lithium battery or 12V from the vehicle battery

Universal installation

Optional Inertial Pack functionality with online Tilt Angle indication

MAAT software downloadable from the website

Destination: Car - Motorcycle - Scooter - Kart -ATV

* See features of the optional WID and RID modules to enable this feature.
