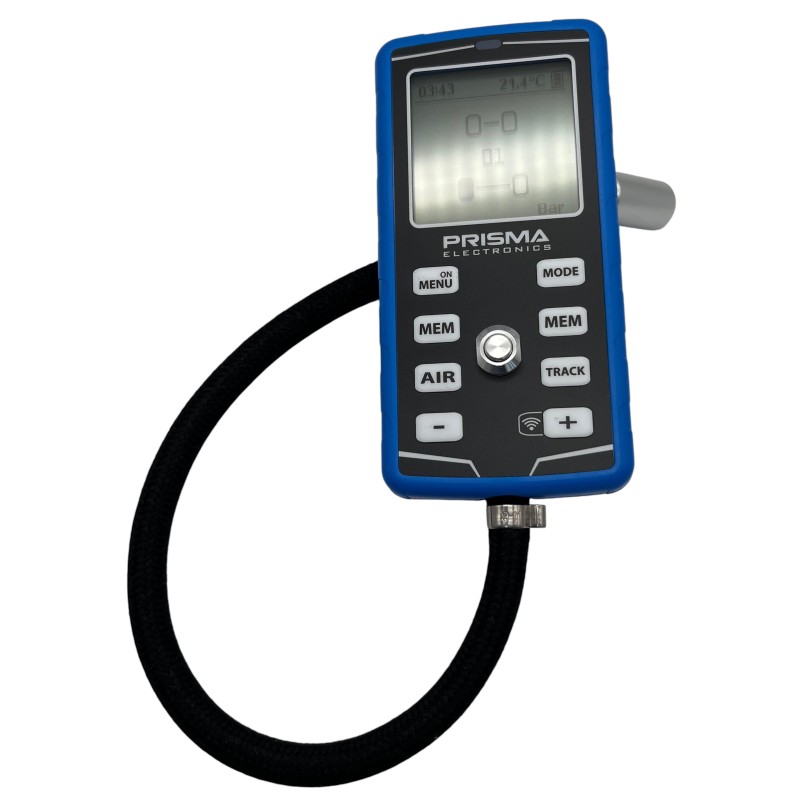

Digital Pressure Gauge HPM5 with INFRARED Pyrometer - HiPrema Prisma Electronics - NEW!!

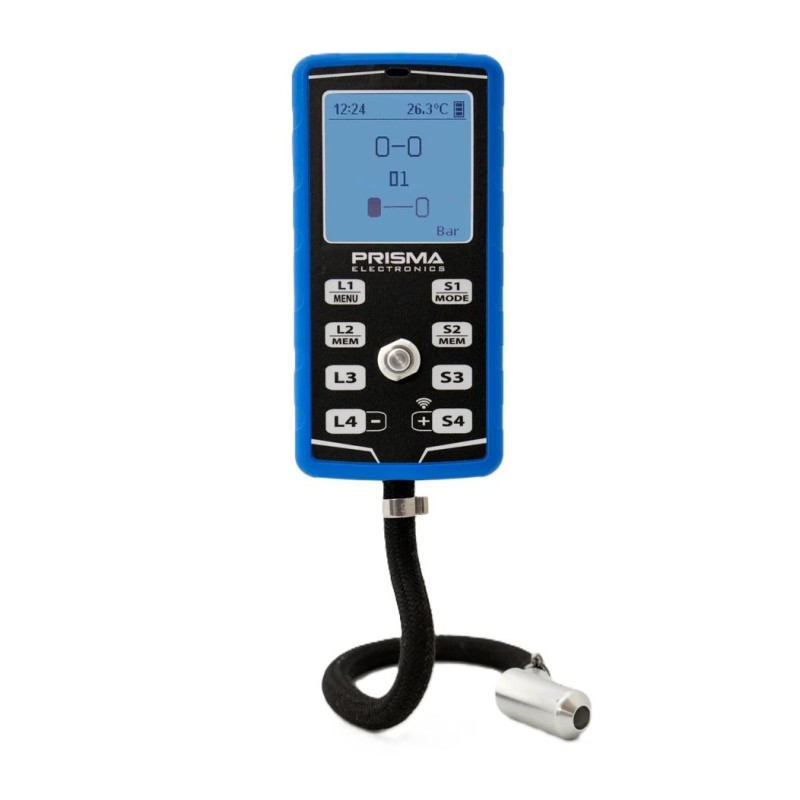

Digital Tire Pressure Gauge HPM5 with Infrared Pyrometer - HiPrema Prisma Electronics

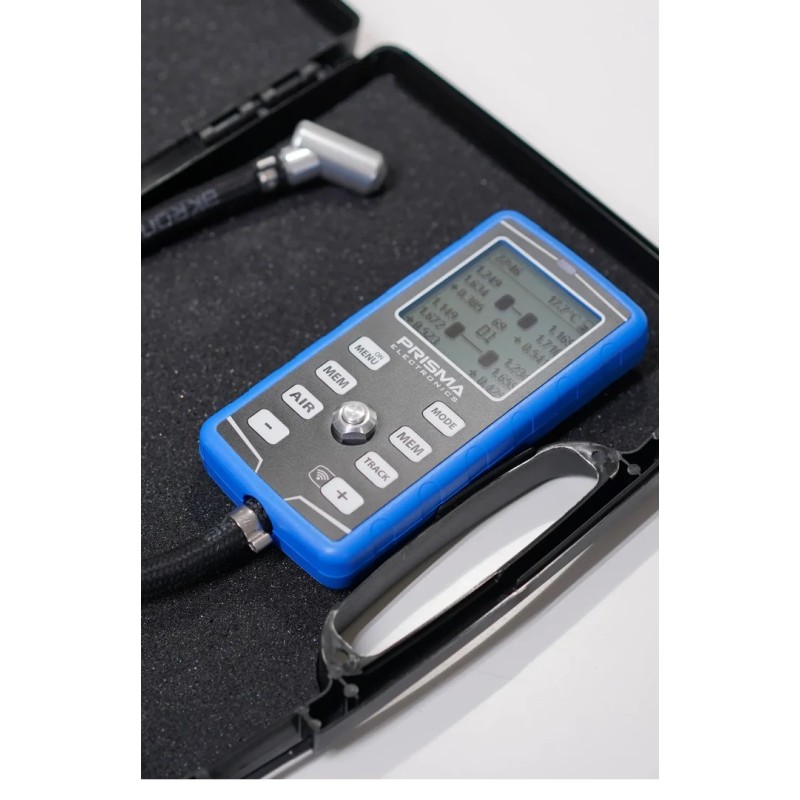

With Carrying Case Included!

You can measure and store tire pressure, 12 tread temperature points, asphalt temperature, and ambient air temperature.

Measures and stores:

• Tire Pressure
• 12 Tread Temperature Points
• Ambient Air Temperature
• Asphalt Temperature
• 50 sessions of Pressure + Temperature

Technical Specifications:

• Pressure Resolution: 0.001 BAR / 0.01 PSI
• Pressure Range: 0 - 7 BAR (100 PSI)

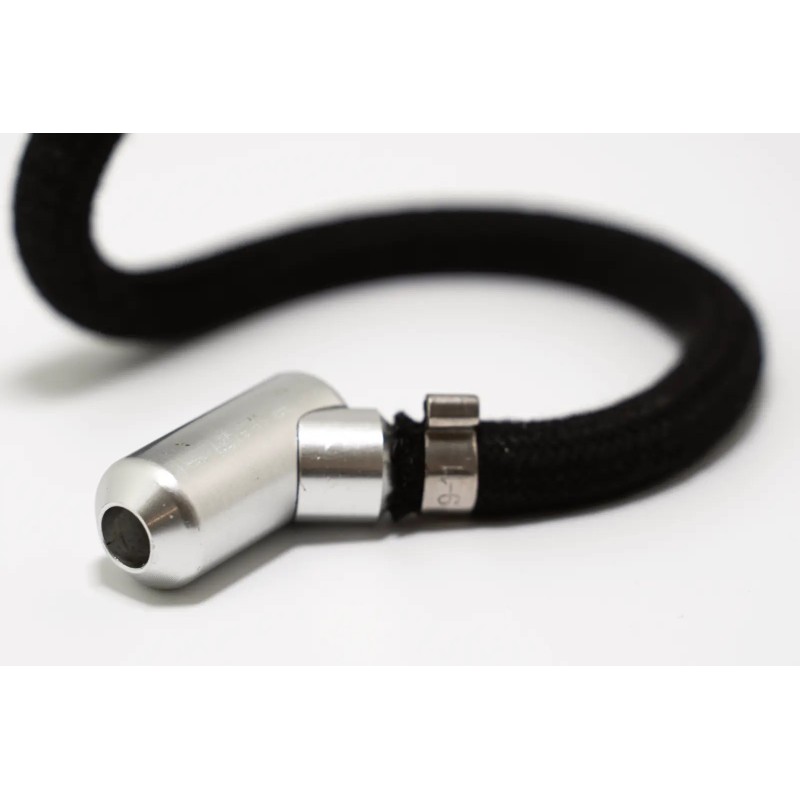

• Aluminum nozzle designed to ensure measurements without air loss from the valve of the rim.
• Quick Function Button

Wireless Connectivity via APP

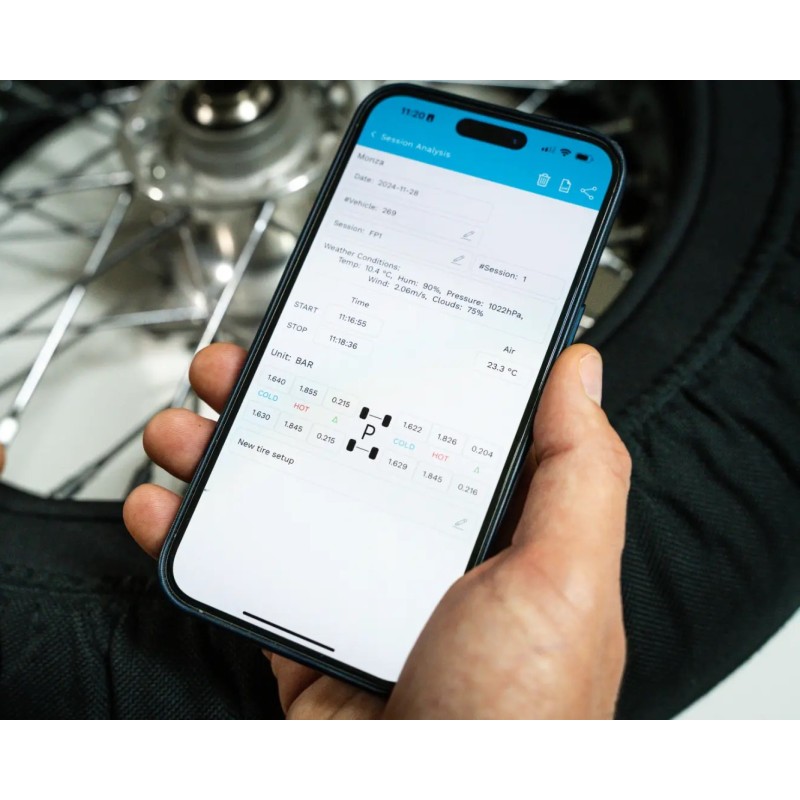

Use the Prisma Electronics APP to view and export all stored sessions.

PRESSURE OFFSET

This function allows you to set an offset value for the pressure, hiding the actual value.

This is useful, for example, in the pit lane or on the starting grid when you want to hide the actual pressure value for strategic reasons.

When the offset is active, the display shows the modified value and the OFFSET indication to inform you that you are measuring a "non-real" pressure.

This function can be quickly activated or deactivated at any time using the quick function buttons.

PITSTOP MODE

By enabling this function, the instrument displays the PIT symbol on the screen.

During a pit stop, it is essential to measure and record the pressure when entering the pit and later adjust it to the target pressure (for example, after a driver change). Simply insert the instrument, adjust the target pressure, and remove the pressure gauge without pressing any button.

The Pit In (pressure at pit entry) and Pit Out (pressure set for Pit Out) values are automatically stored.

HOT/COLD PRESSURE

You can choose to store 8 pressure values (Cold and Hot) or just 4 pressure values.

This is useful if you only want to measure Pit-Out or Pit-In pressures.

WIRELESS CONNECTION WITH APP

With the new APP for HiPreMa5 pressure gauges, you can connect your instrument to the Prisma Electronics APP.

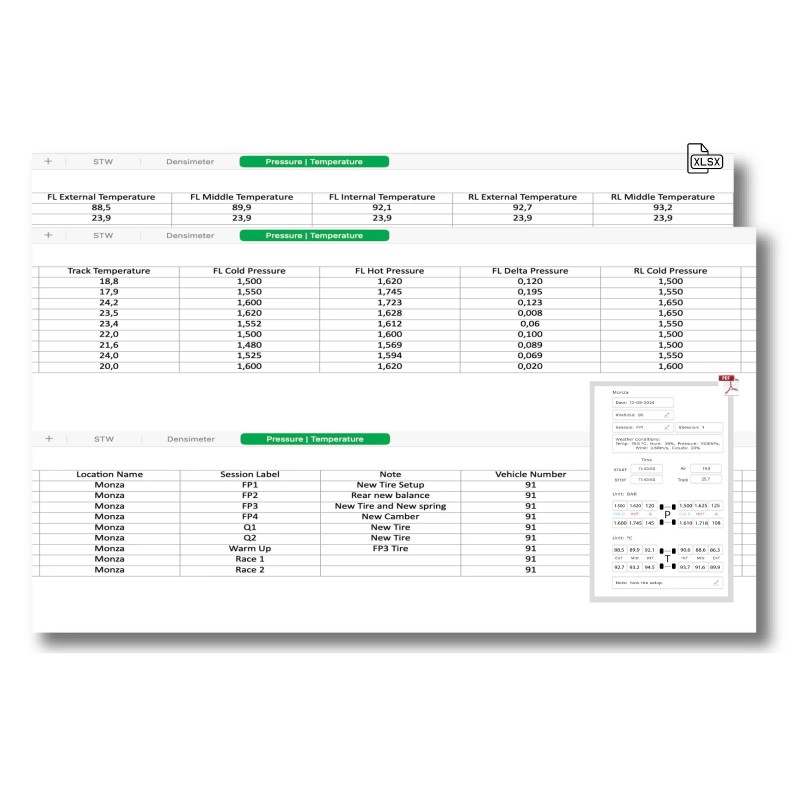

It is possible to export an EXCEL or PDF file for each session, for each track, and for all tracks.

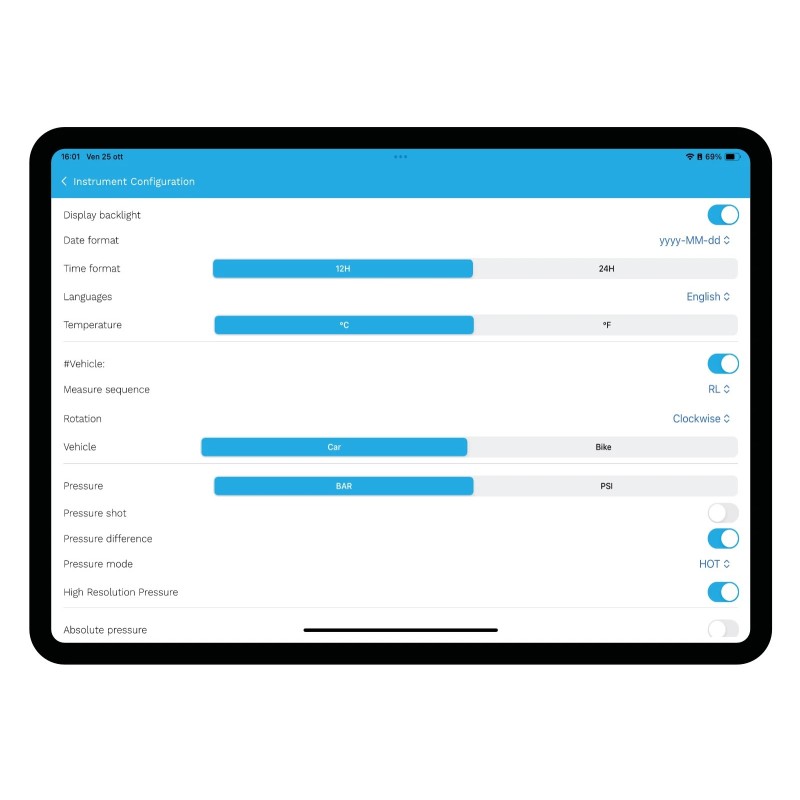

CONFIGURE AND UPDATE YOUR INSTRUMENT VIA THE APP OR THE DEVICE MENU.
