Digital Pressure Gauge HPM5 with Contact Pyrometer - HiPrema Prisma Electronics - NEW!!

Digital Tire Pressure Gauge HPM5 with Pyrometer - HiPrema Prisma Electronics

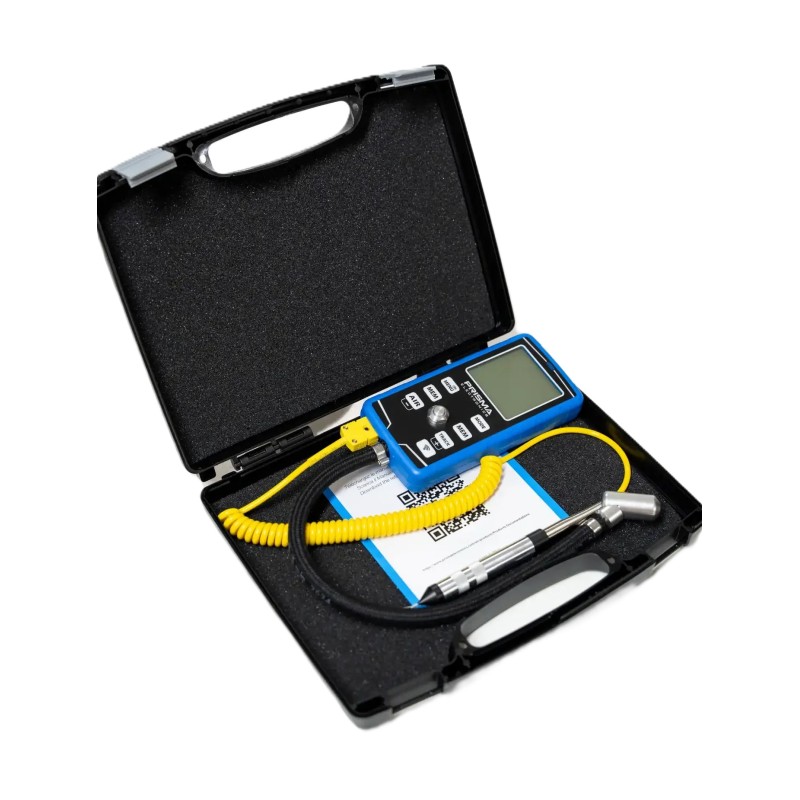

With Included Carrying Case!

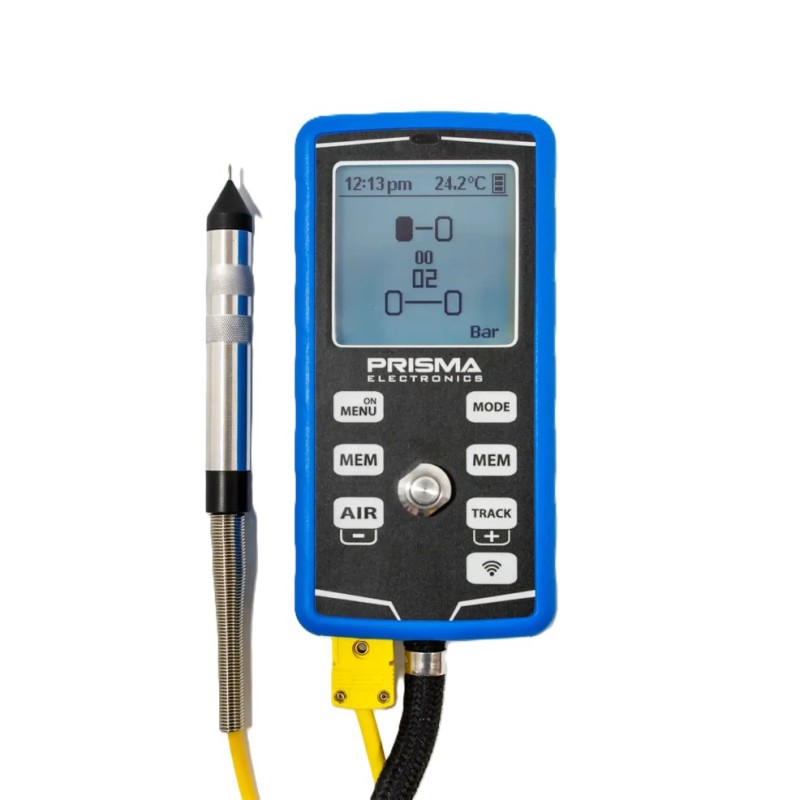

Digital HPM5 tire pressure gauge with pyrometer and needle probe, useful when you want to measure the tire footprint to optimize CAMBER and CASTER on vehicles and temperature at different angles of inclination on motorcycles.

You can measure and store:

• Tire pressure in both cold and hot conditions and the corresponding variation
• 12 points of tire temperature – INSIDE – CENTER – OUTSIDE
• Ambient air temperature
• Asphalt temperature

Features:

• Pressure resolution: 0.001 BAR / 0.01 PSI
• Pressure range: 0 – 7 BAR (100 PSI)

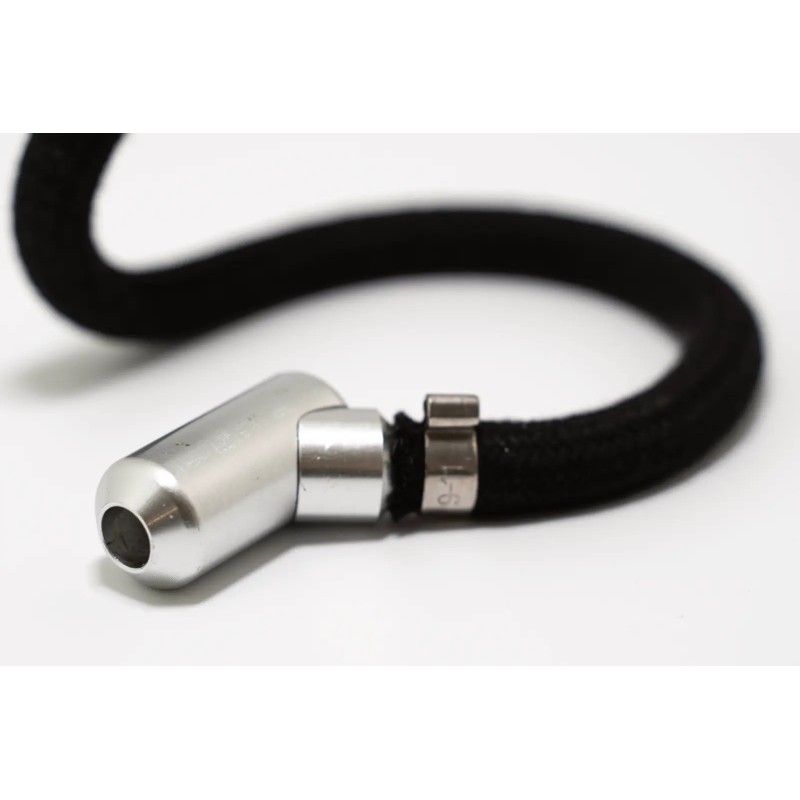

• Aluminum head designed by Prisma Electronics for measurements without air loss from the valve of the rim
• QUICK FUNCTION BUTTON

Wireless connection of the device via the Prisma Electronics APP to display and export all saved sessions.

Pressure OFFSET

This function allows you to set an offset value for the pressure, hiding the real value.

This is useful, for example, in the pit lane or on the starting grid when you want to hide the real pressure value for strategic reasons.

When the offset is active, the display shows the modified value and the OFFSET indication to inform you that you are measuring a "non-real" pressure.

This function can be quickly activated or deactivated at any time using the quick function buttons.

PITSTOP MODE

When this function is enabled, the device displays the PIT symbol on the screen.

During a pit stop, it is essential to measure and record the pressure when entering the pits and then adjust it to the target pressure (e.g., after a driver change). Simply insert the device, adjust the target pressure, and remove the gauge without pressing any buttons.

The Pit In (pressure when entering the pits) and Pit Out (pressure set for Pit Out) values are automatically saved.

HOT/COLD PRESSURE

You can choose to store 8 pressure values (Cold and Hot) or just 4 pressure values.

This is useful if you only want to measure Pit-Out or Pit-In pressures.

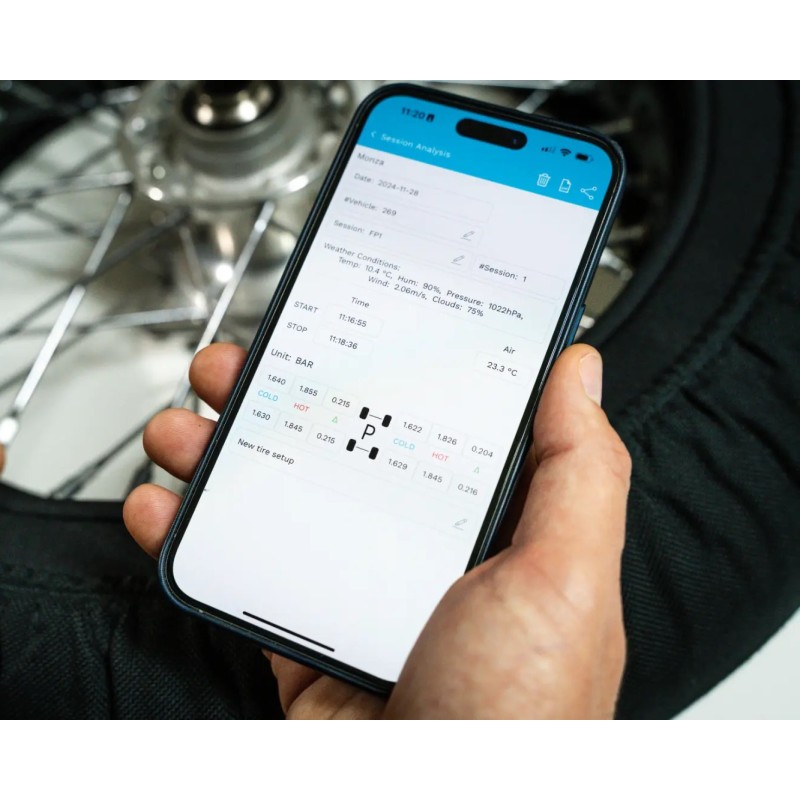

WIRELESS CONNECTION WITH APP

With the new APP for HiPreMa5 gauges, you can connect your device to the Prisma Electronics APP.

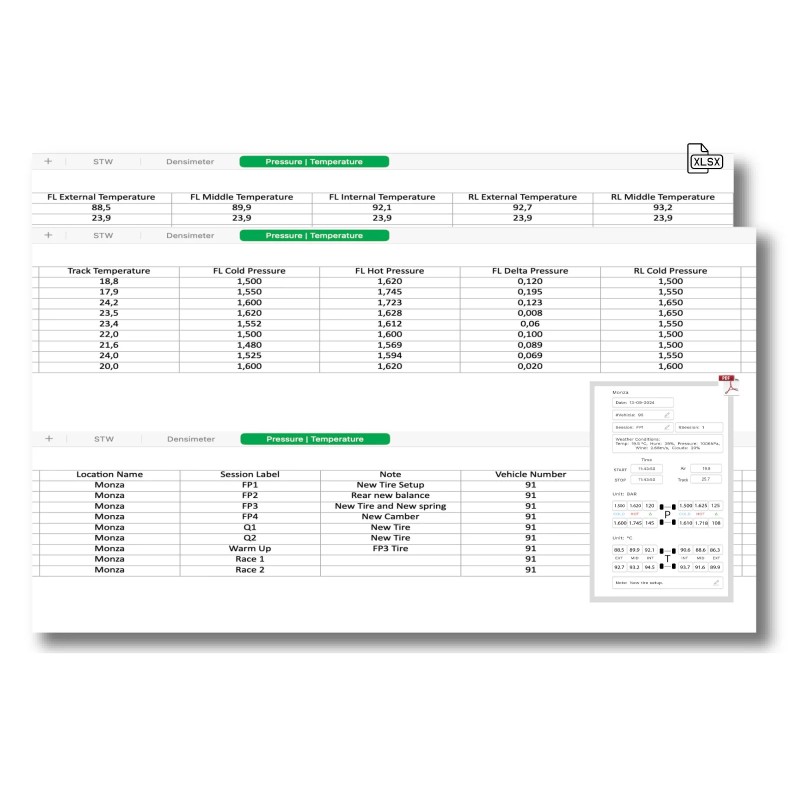

You can export an EXCEL or PDF file for each session, for each track, and for all tracks.

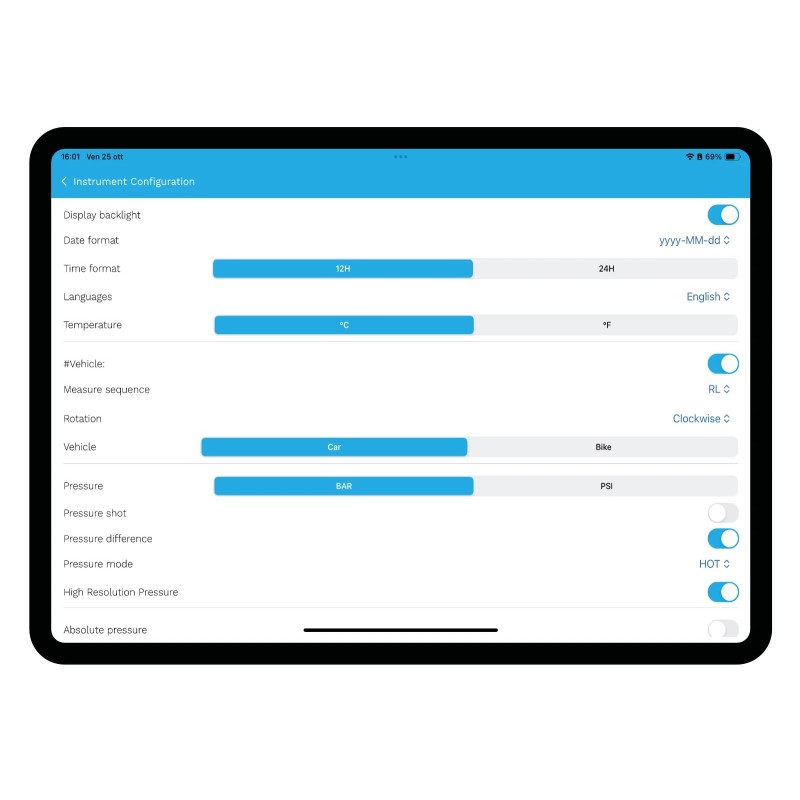

SET UP AND UPDATE YOUR DEVICE THROUGH THE APP OR THE DEVICE MENU
