MyChron 6 - 2T - AIM - GPS Laptimer - With GAS Probe

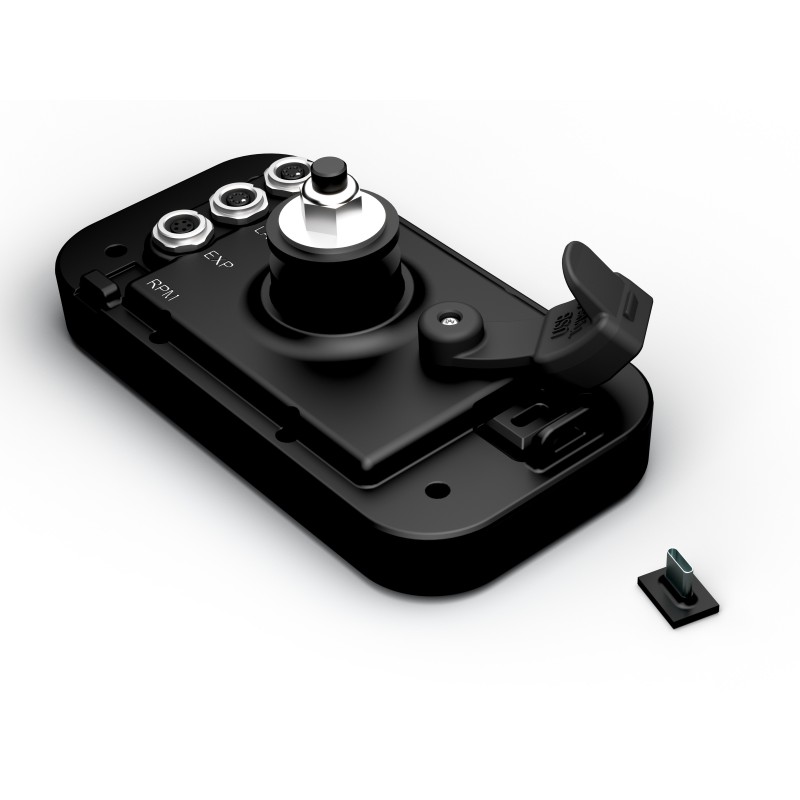

AIM MyChron 6 2T – Version with Exhaust Gas Probe

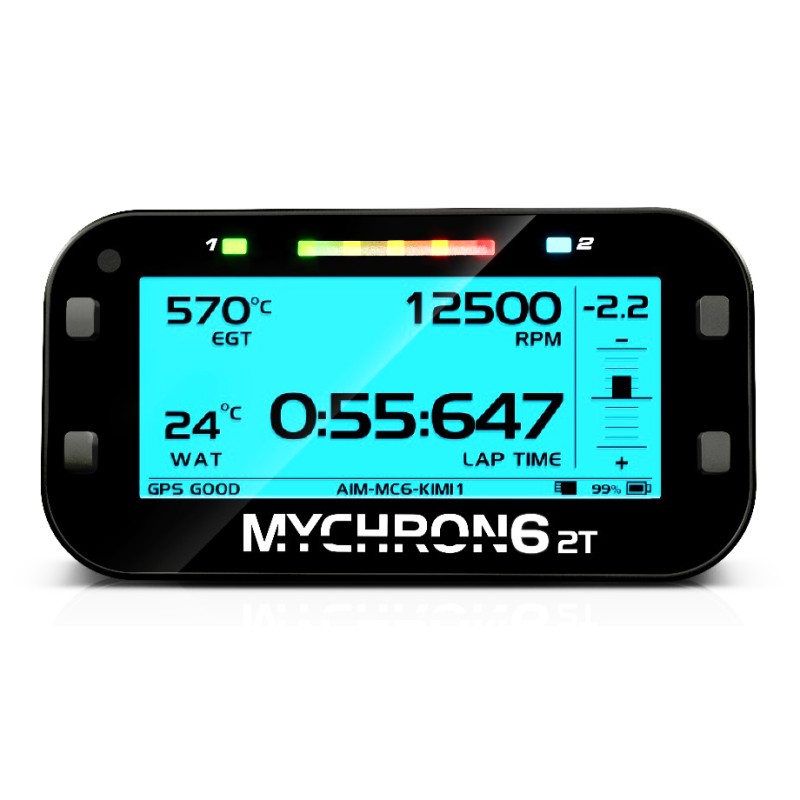

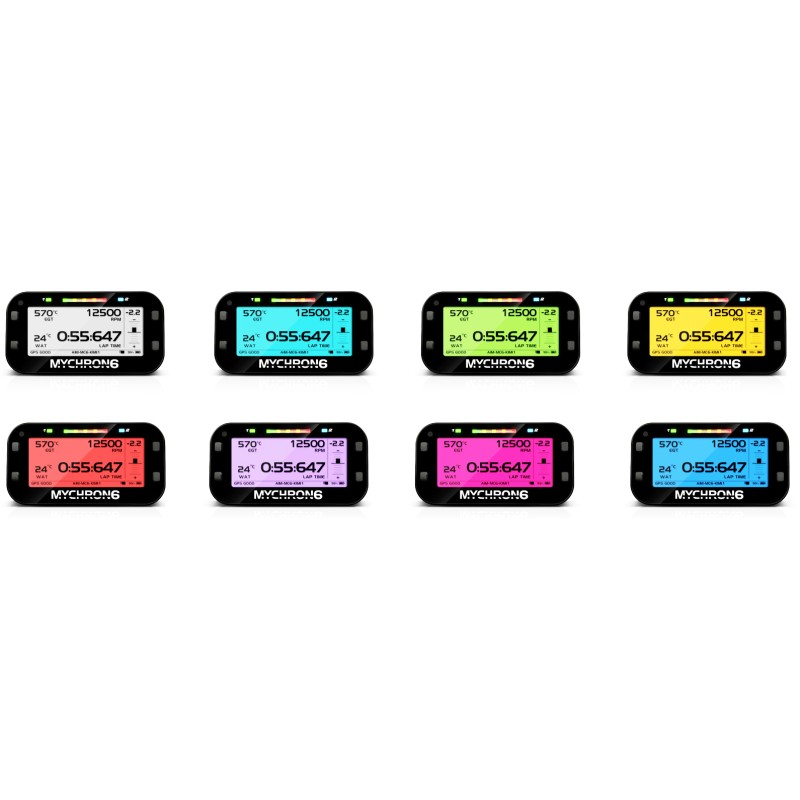

The MyChron 6 2T is an advanced data acquisition system and lap timer, specifically designed for 2-stroke karting. It provides precise 25Hz GPS tracking, which allows for exact lap time and position measurement. The 320 x 136 pixel high-resolution display is fully customizable, enabling drivers to set up the most relevant information for their driving style. The RGB backlight with 8 selectable colors ensures perfect visibility in any lighting condition.

Key features include:
✔ 5 multifunctional RGB LEDs, configurable for shift light, RPM, or specific alerts.
✔ 2 alarm LEDs, adjustable to notify drivers when parameters exceed preset limits.
✔ 6-axis inertial platform (IMU) at 50Hz, which records kart accelerations and movements for detailed driving analysis.

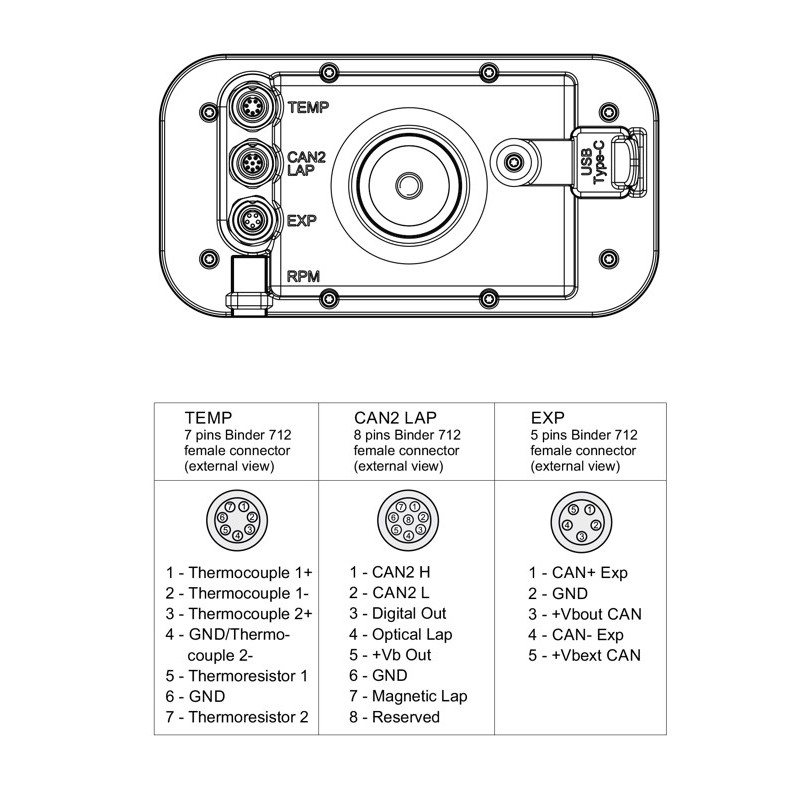

✔ Temperature sensor input, useful for monitoring water or exhaust gas temperatures.
✔ 4GB internal memory, for recording and analyzing session data.
✔ Wi-Fi and Bluetooth connection, allowing fast data transfer to PC, tablet, or smartphone via Race Studio 3 software.
✔ Rechargeable lithium battery with extended autonomy and fast charging via USB-C.

Base Equipment (Exhaust Gas Probe Version):

✔ Exhaust gas probe M12, for monitoring exhaust gas temperature.
✔ Dual temperature cable, which allows monitoring both water temperature and exhaust gas temperature.
✔ RPM cable, for monitoring engine RPM.

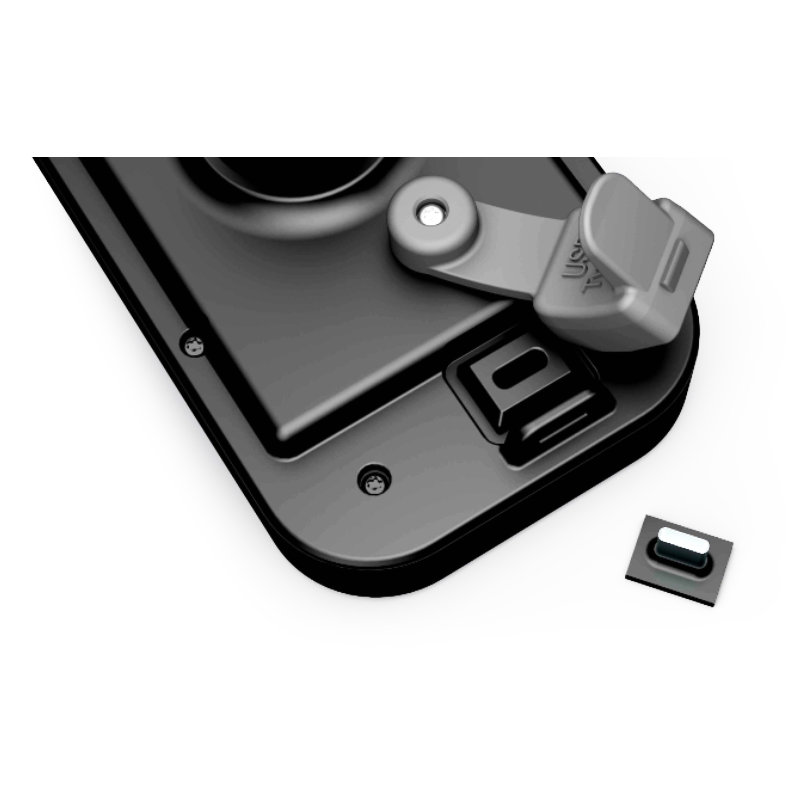

✔ USB-C cable, for recharging the internal battery.

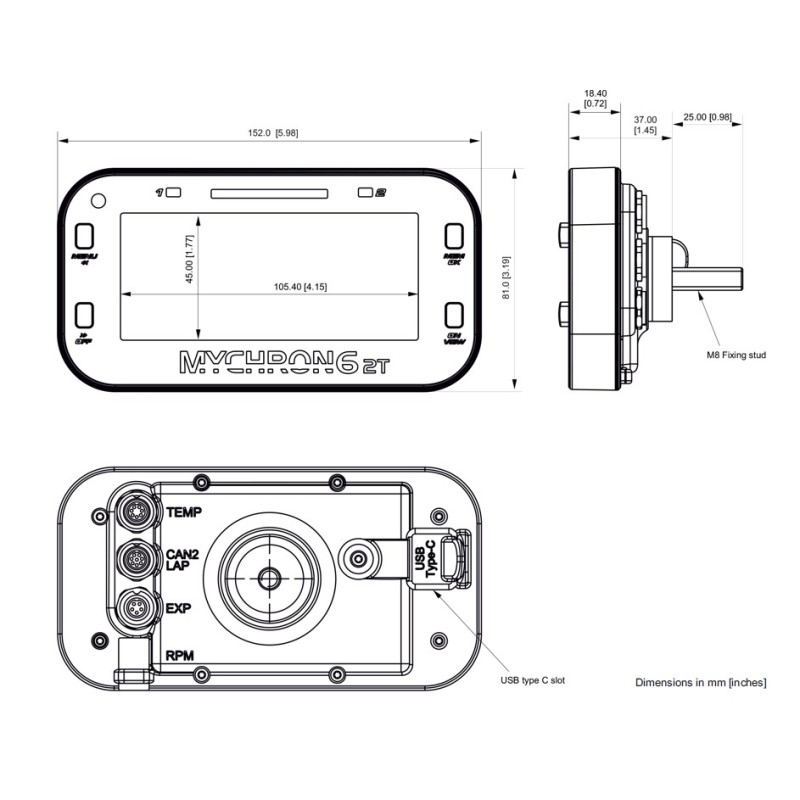

The MyChron 6 2T has dimensions of 150 x 79 x 36.6 mm and weighs 370 g. It is made from durable materials (PA6 GS30%) and is certified IP67, ensuring protection against water and dust. This device is ideal for 2-stroke kart drivers who need precise data and in-depth analysis to improve their track performance.
