MyChron 6 - 2T - AIM - GPS Laptimer - With WATER + GAS Probe
704.91 €
Instead of 718.40 €
Product usually shipped within a few days after ordering, you will find more information on this page
MyChron6-2T-H2O+EGT
With WATER + GAS Probe
Description

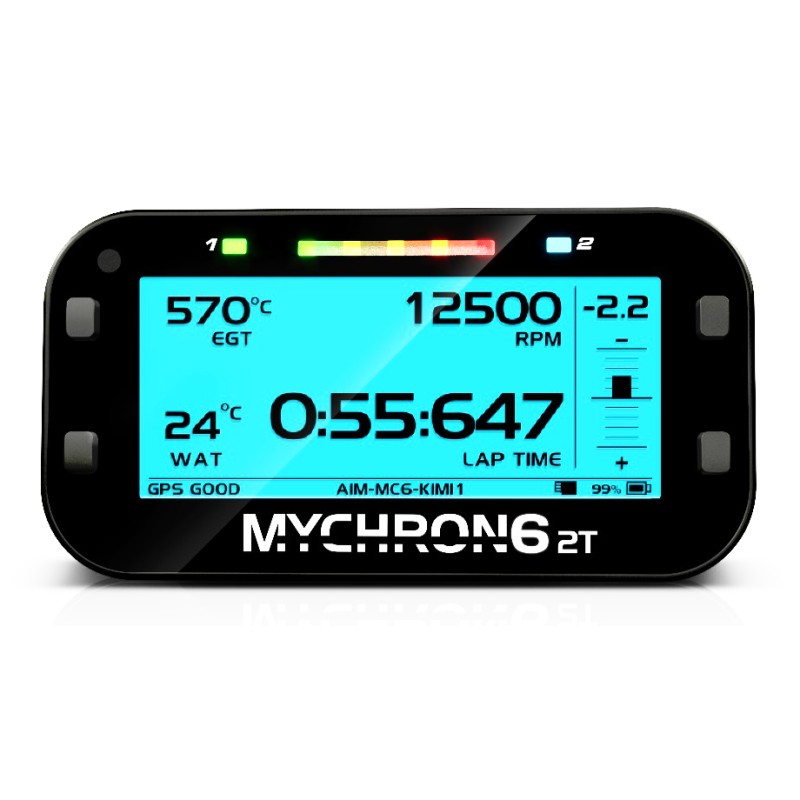

AIM MyChron 6 2T – Version with Dual Sensor (Water + Exhaust Gas)

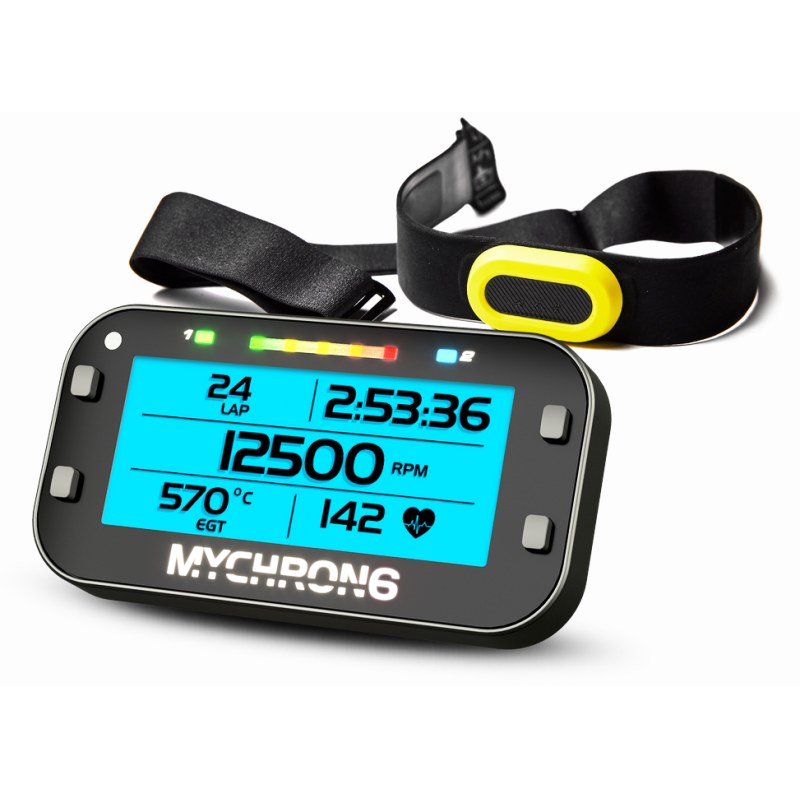

The MyChron 6 2T is an advanced data acquisition system and lap timer specifically designed for 2-stroke karting. Thanks to its integrated 25 Hz GPS, it provides highly accurate lap time tracking and positioning on the track. The high-resolution display (320 x 136 pixels) is fully customizable, allowing drivers to configure the most relevant information for their driving style. The RGB backlighting with 8 selectable colors ensures excellent visibility in all lighting conditions.
Main Features:
✔ 5 multifunctional RGB LEDs, configurable for shift indicators, RPM alerts, or specific warnings.
✔ 2 alarm LEDs, settable to notify when parameters exceed limits.
✔ 6-axis inertial platform (IMU) at 50 Hz, detecting kart accelerations and movements for detailed driving analysis.
✔ Temperature sensor input, useful for monitoring water and exhaust gas temperatures.
✔ 4 GB internal memory, for recording and analyzing session data.
✔ Wi-Fi and Bluetooth connectivity, enabling fast data transfer to PC, tablet, or smartphone via Race Studio 3 software.

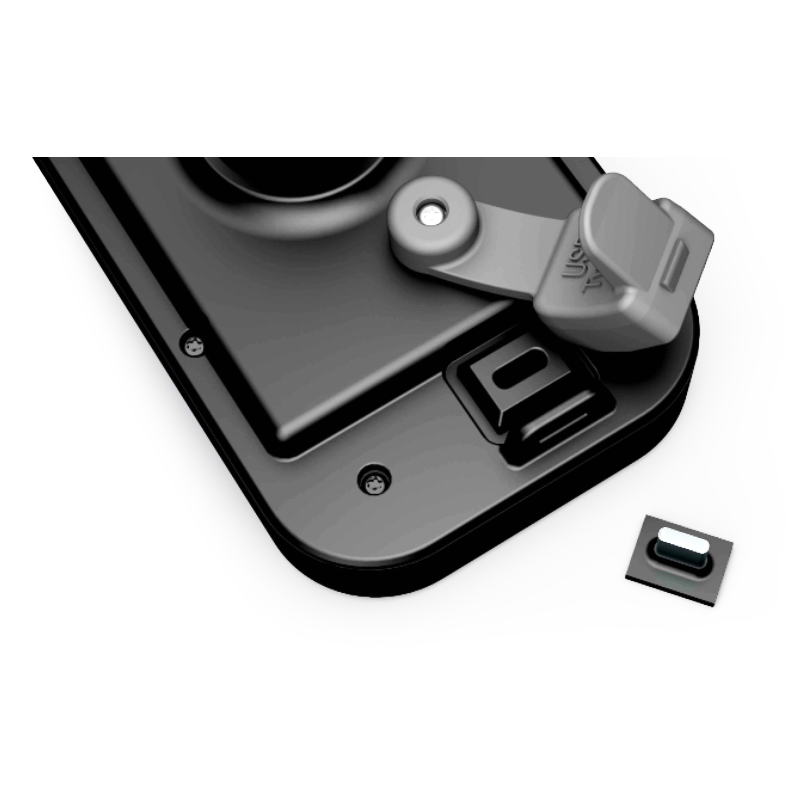

✔ Rechargeable lithium battery, with long battery life and fast charging via USB-C.
Basic Kit (Version with Dual Sensor Water + Exhaust Gas):
✔ Water temperature sensor, for monitoring coolant temperature.
✔ M12 exhaust gas temperature sensor, for measuring exhaust gas temperature.
✔ Dual temperature cable, allowing simultaneous monitoring of water and exhaust gas temperatures.
✔ RPM cable, for tracking engine speed.
✔ USB-C cable, for charging the internal battery.
Technical Specifications:
- Dimensions: 150 x 79 x 36.6 mm
- Weight: 370 g
- Material: PA6 GS30% (highly durable)
- IP67 certification: waterproof and dustproof
|
Display |
Integrated |
|
Display resolution |
320x136 pixels |
|
Backlight |

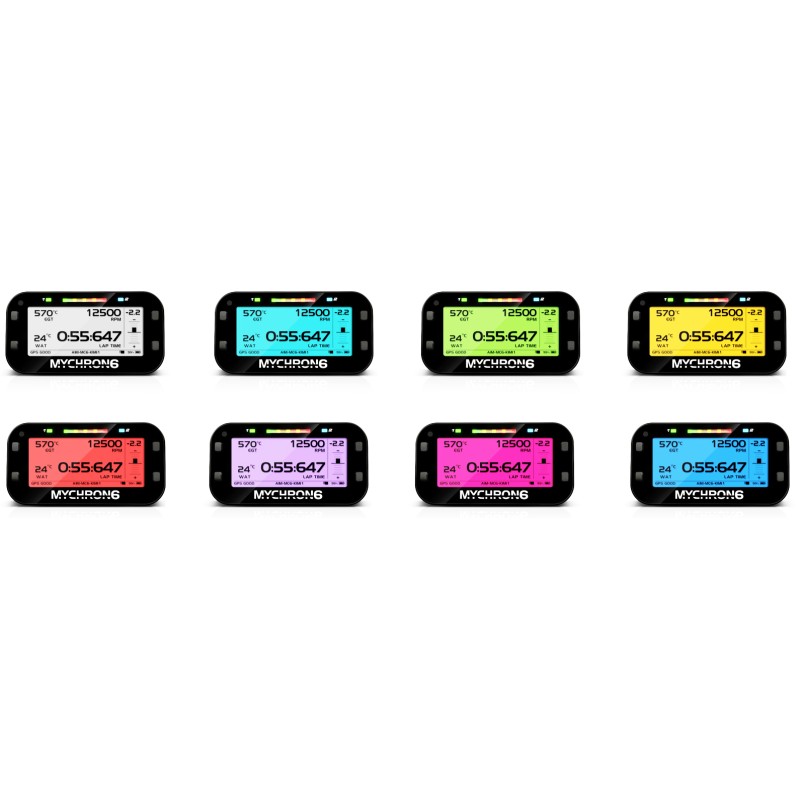

8 configurable RGB colors |
|
Shift light/allarmi LED |
5 + 2 configurable RGB LEDs |
|
Integrated track database |
Inclusive |
|
Wi-Fi connection |
Included |
|
Bluetooth connection |
Included |
|
GPS |
25 Hz |
|
External power supply |
9÷15 V |
|
CAN connections |
2 |
|
Connectors |

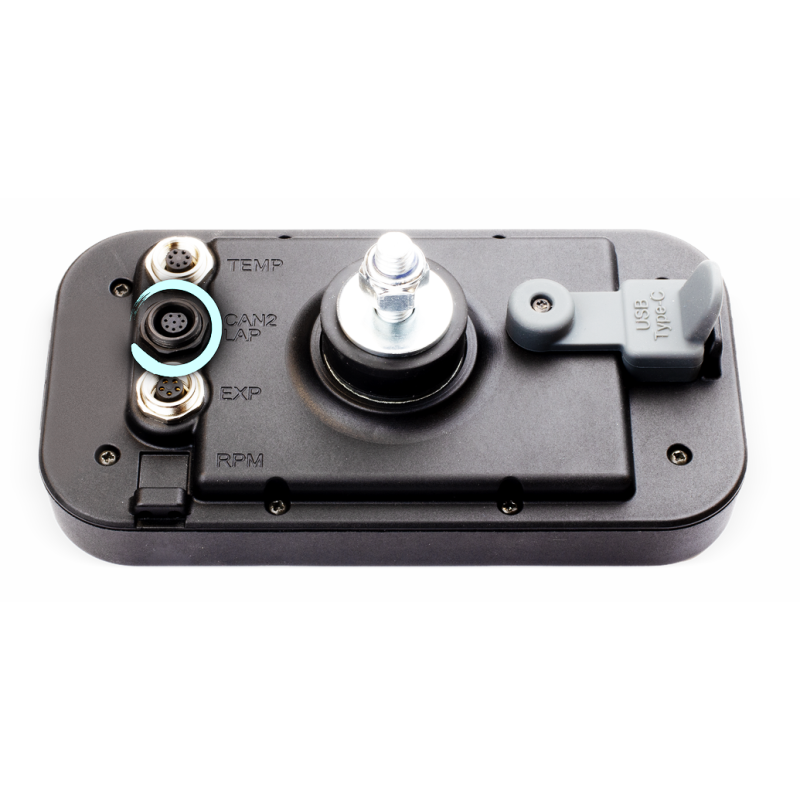

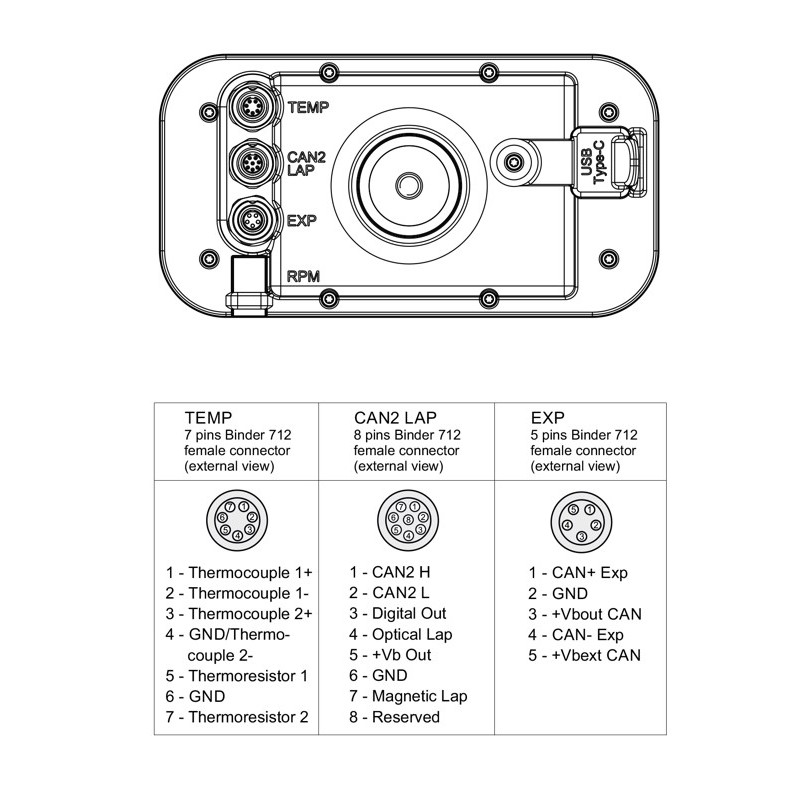

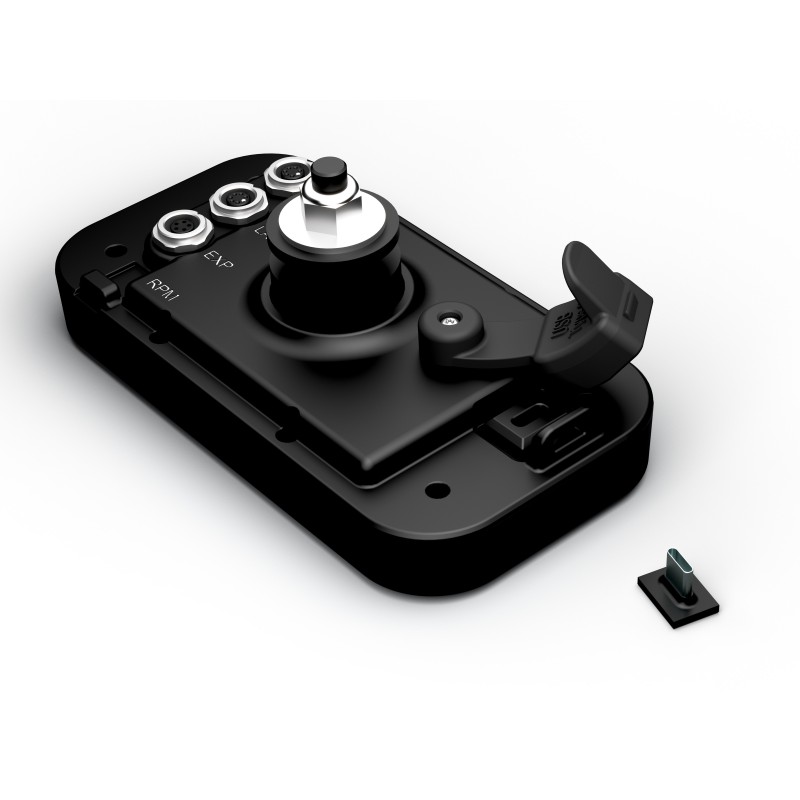

1 x Binder 712 fem connector 7 pins 1 x Binder 712 fem connector 8 pins 1 x Binder 712 fem connector 5 pins |
|
USB connection |
For data download, mass storage and battery charger support |
|
Temperature Inputs |
2 |
|
Inertial Platform |
6 axis, frequency 50 Hz |
|
Digital inputs |
Optical turn signal + magnetic turn signal |
|
Digital outputs |
1, High/low programmable activation |
|
External modules |

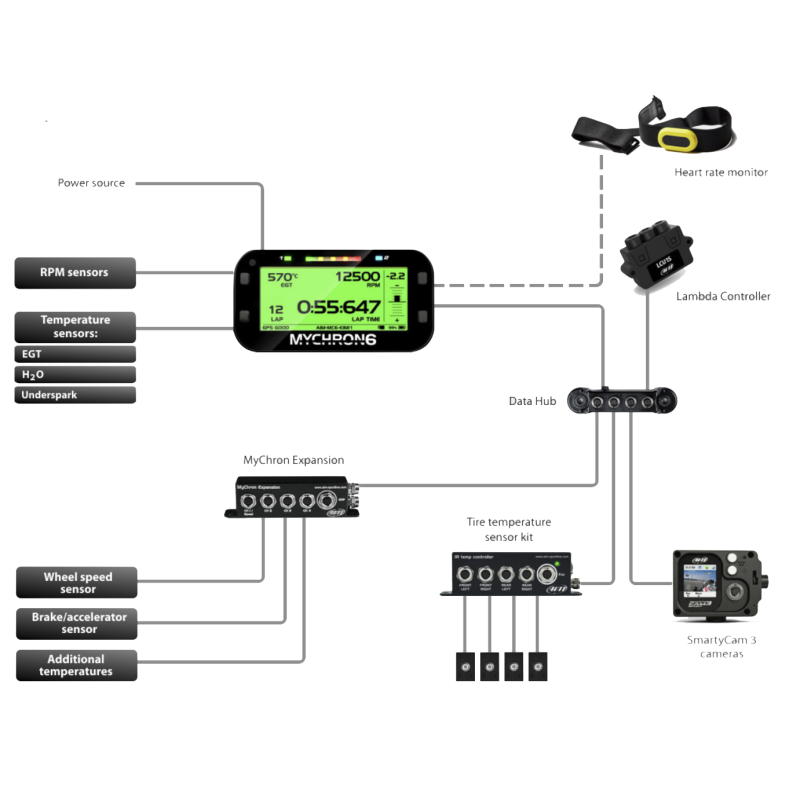

MyChron Expansion, IR Temperature Controller, Serie SmartyCam 3, LCU1S |
|
Memory |
4 GB |
|
Internal battery |
Rechargeable Lithium |
|
Battery life |
20 h approx. |
|
Chassis |
PA6 GS30% |
|
Dimensions |

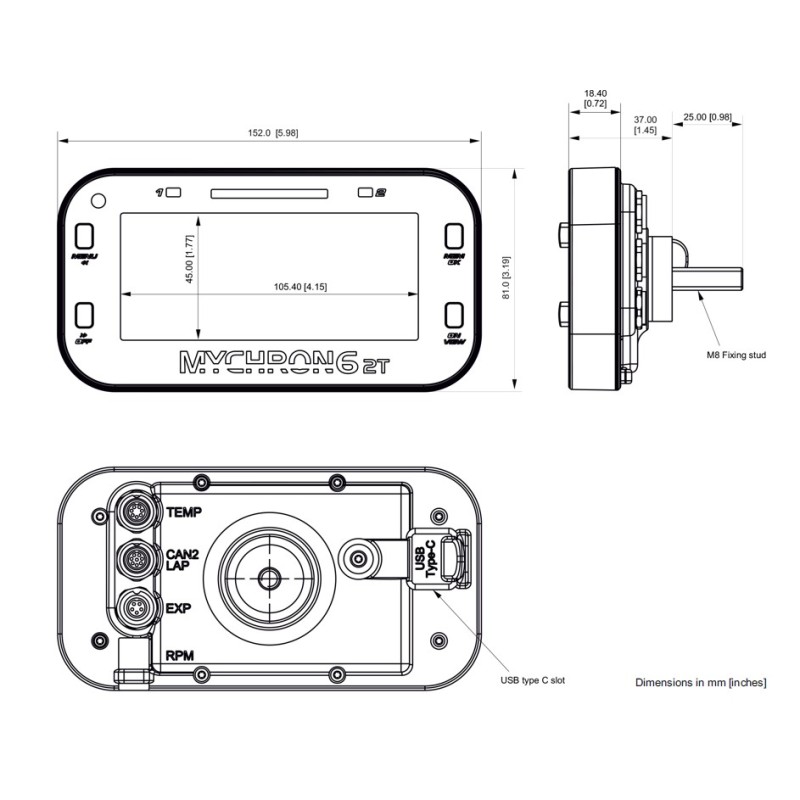

152.0 x 81.0 x 37.0 mm |
|
Weight |
370 g |
|
Waterproof |
IP67 |
