Engine Iame 175cc single speed SuperX30

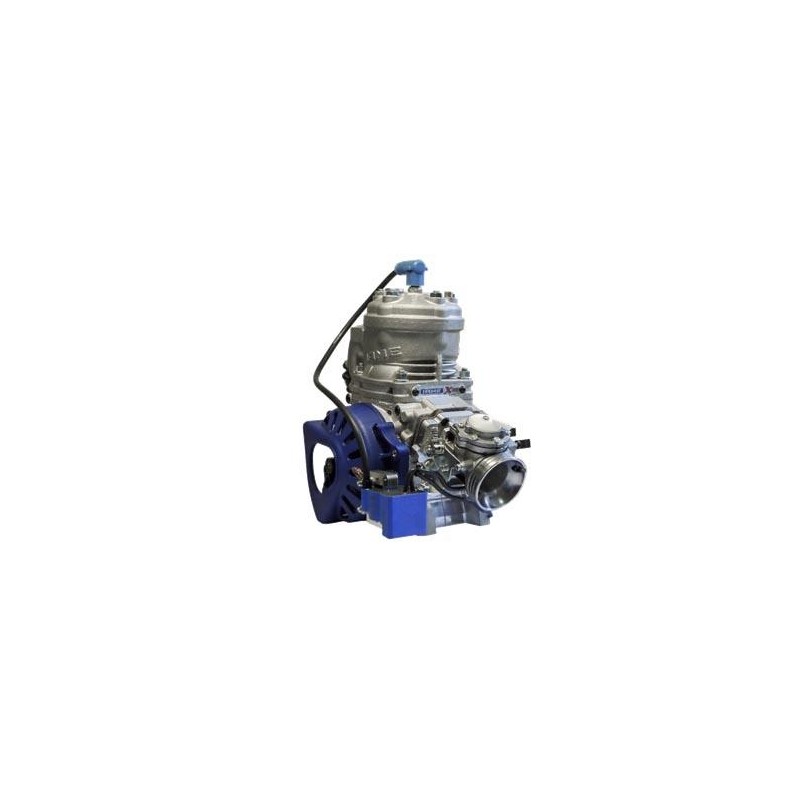

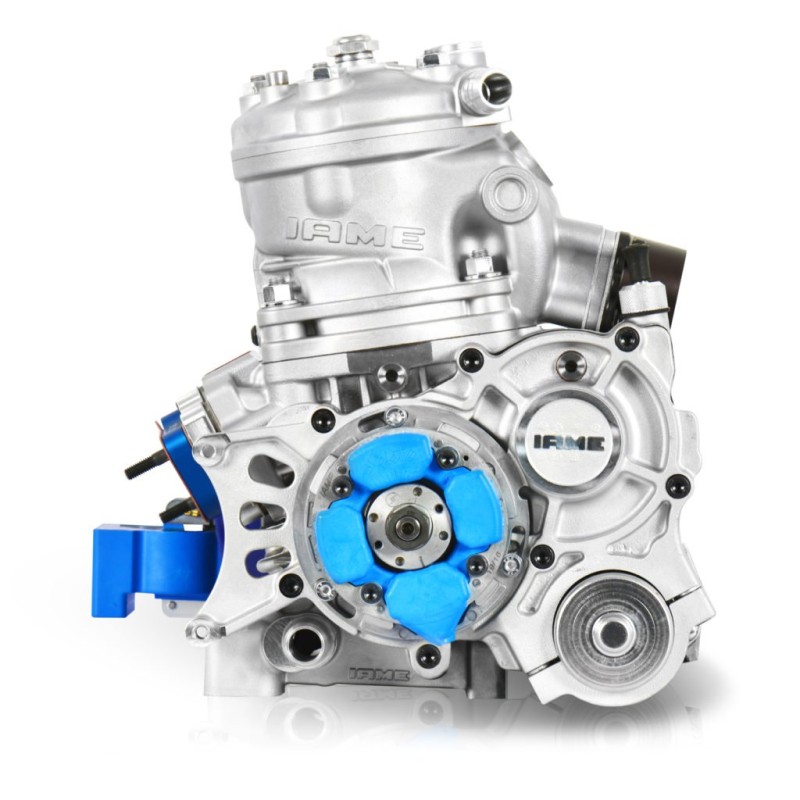

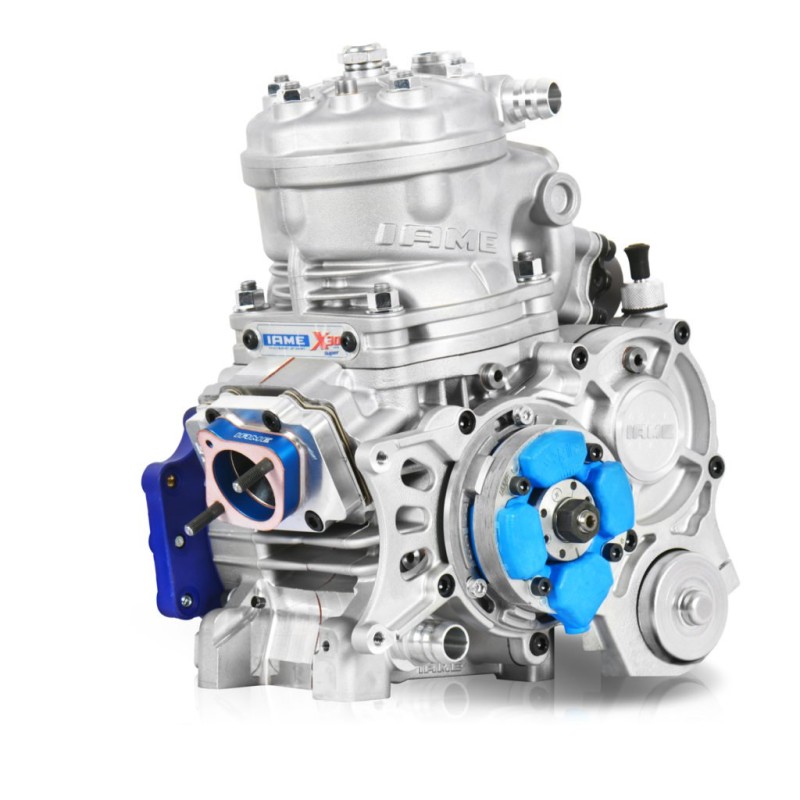

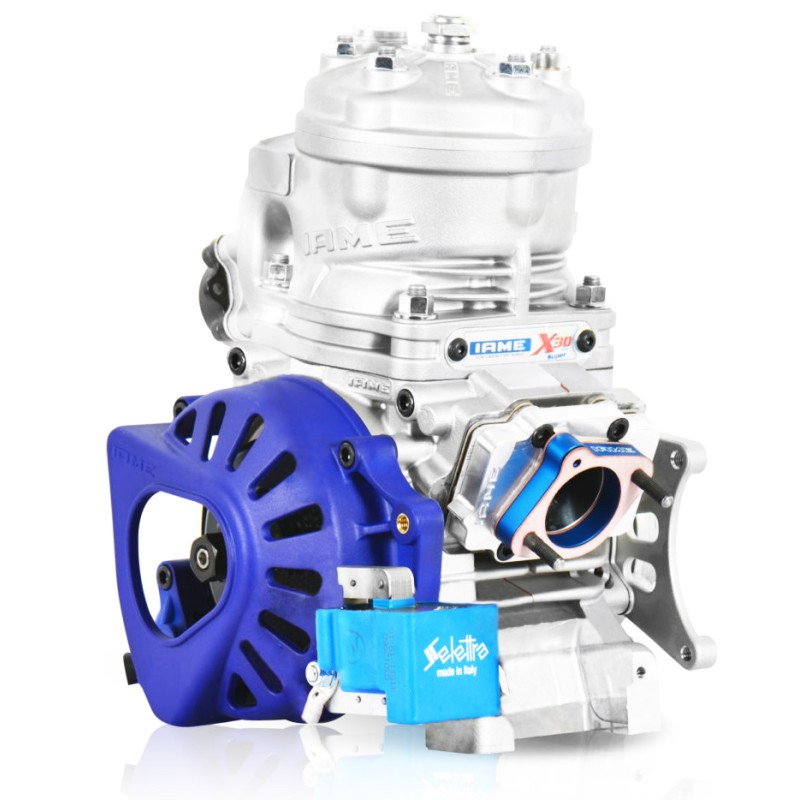

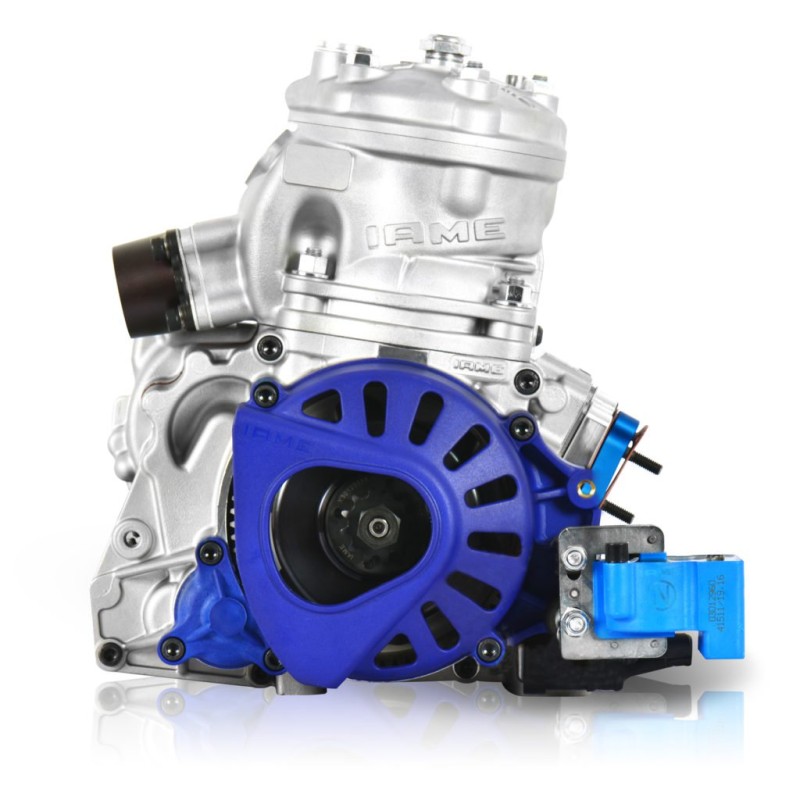

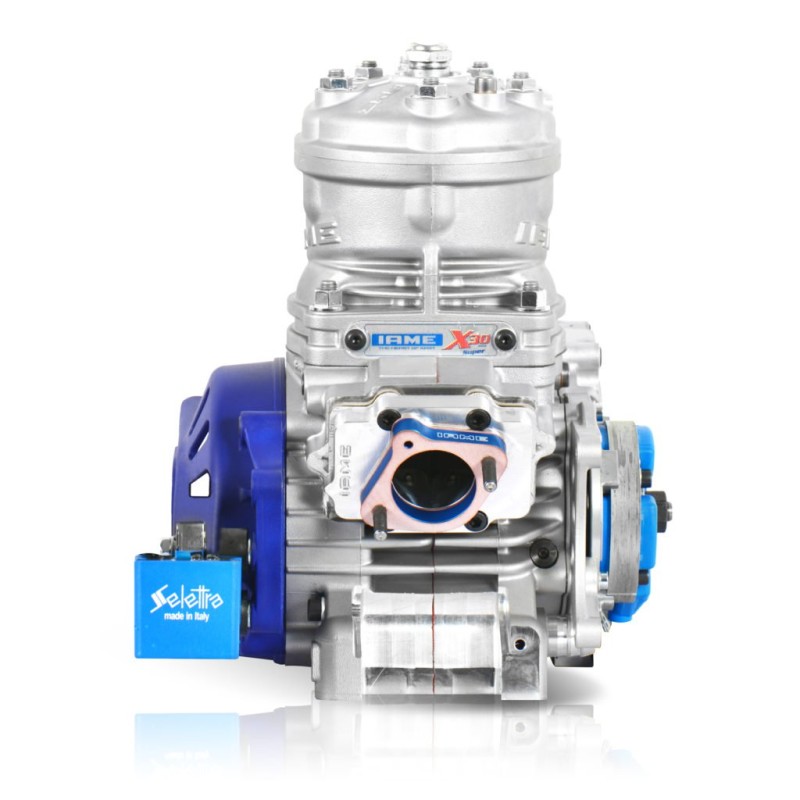

IAME X30 SUPER – 175cc Engine

The IAME X30 Super is the benchmark engine for the 175cc category. It combines the advanced technology of the Reedster KF engine with the proven reliability and practical design of the X30 platform. Its new 175cc configuration delivers 26 Nm of torque and 43 HP without the need for an exhaust valve, ensuring simplicity and reduced maintenance.

The power curve is strong from low RPM, making it ideal for the most demanding and competitive drivers.

Technical Specifications

🔵 Displacement: 174.56 cc
🔵 Bore: 63.92 mm (max 64.04 mm)
🔵 Stroke: 54.40 mm
🔵 Ports: 5
🔵 Intake system: Reed valve
🔵 Lubrication: oil mixture
🔵 Cooling: water
🔵 Ignition: digital
🔵 Starter: electric
🔵 Clutch: dry centrifugal
🔵 Balancer shaft: present
🔵 Carburettor: Tillotson HB-10A
🔵 Max power: 43 HP
🔵 Max torque: 26 Nm
🔵 Max RPM limit: 15,000 rpm

Engine Kit Includes

🔵 Selettra S digital ignition system
🔵 H.T. coil/electronic box “N” with vibration dampers
🔵 NGK BR10EG spark plug with PVL cap
🔵 Centrifugal clutch with detachable Z12 sprocket
🔵 Tillotson HB-10A carburettor (Ø34 mm)
🔵 Exhaust manifold
🔵 X30 Super exhaust silencer
🔵 Electric starter motor with support
🔵 Bendix
🔵 Wiring loom with Start/Stop buttons and connectors
🔵 Button bracket with safety shield
🔵 Battery support with clamps
🔵 Velcro strap
🔵 Rubber pads for battery
