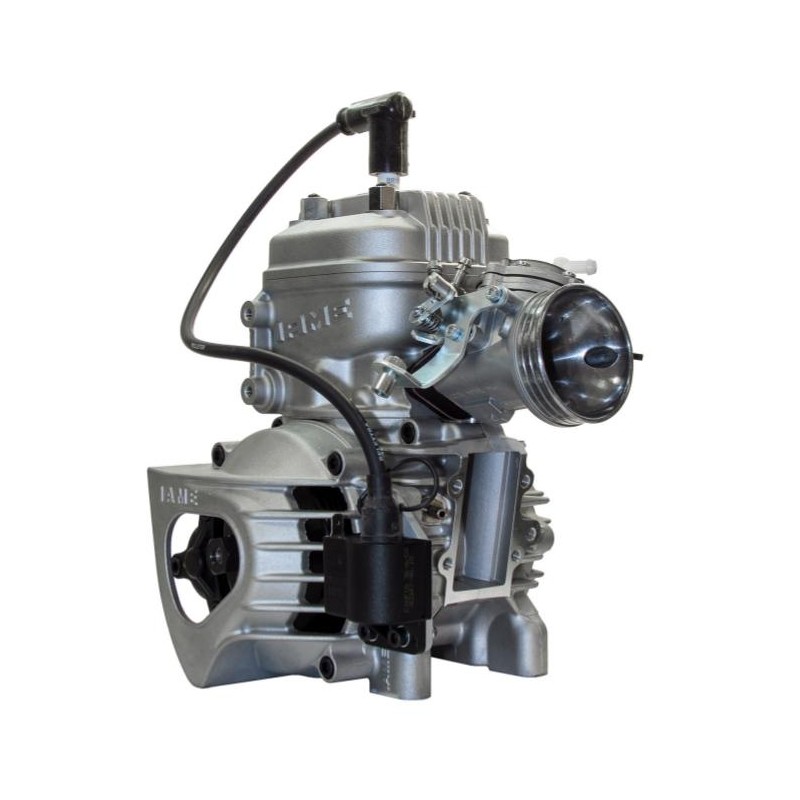

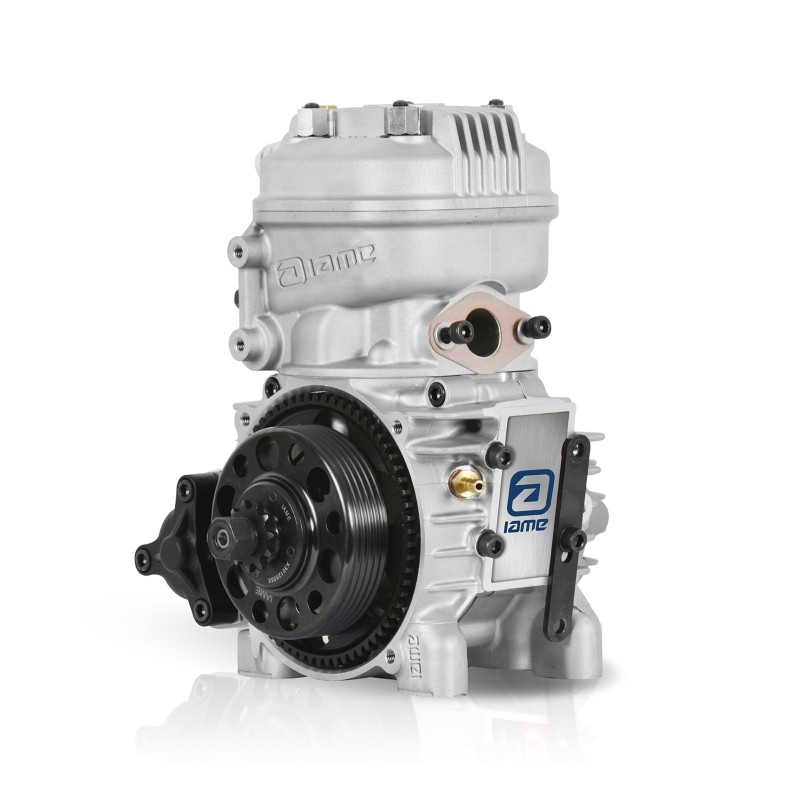

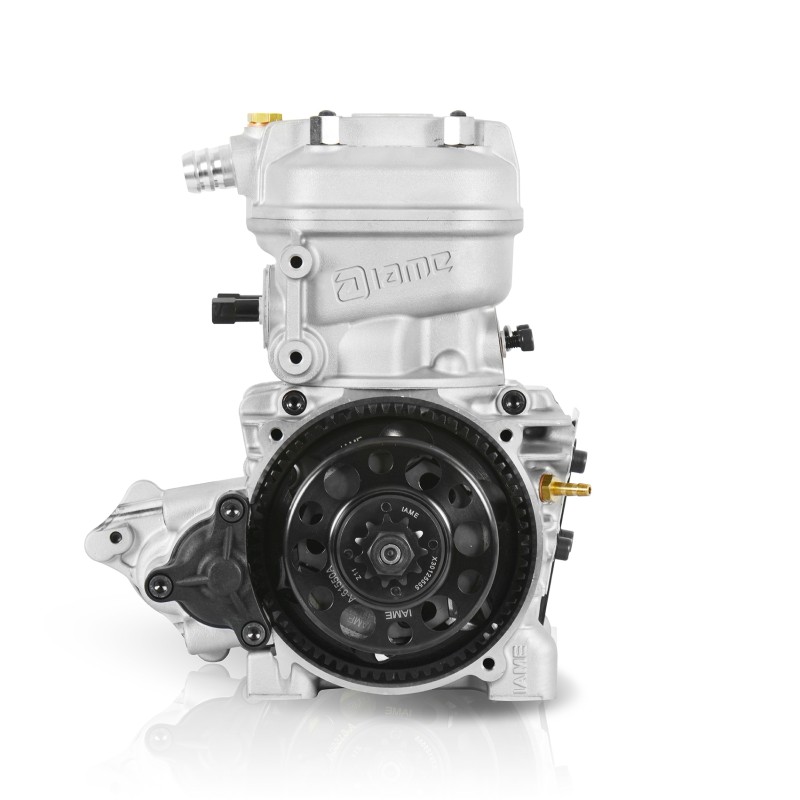

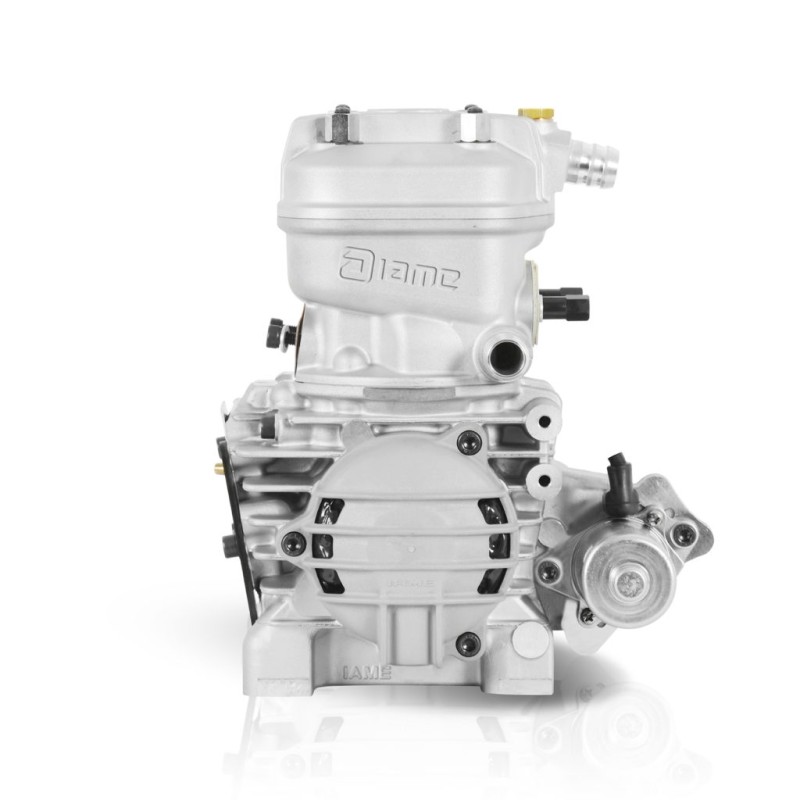

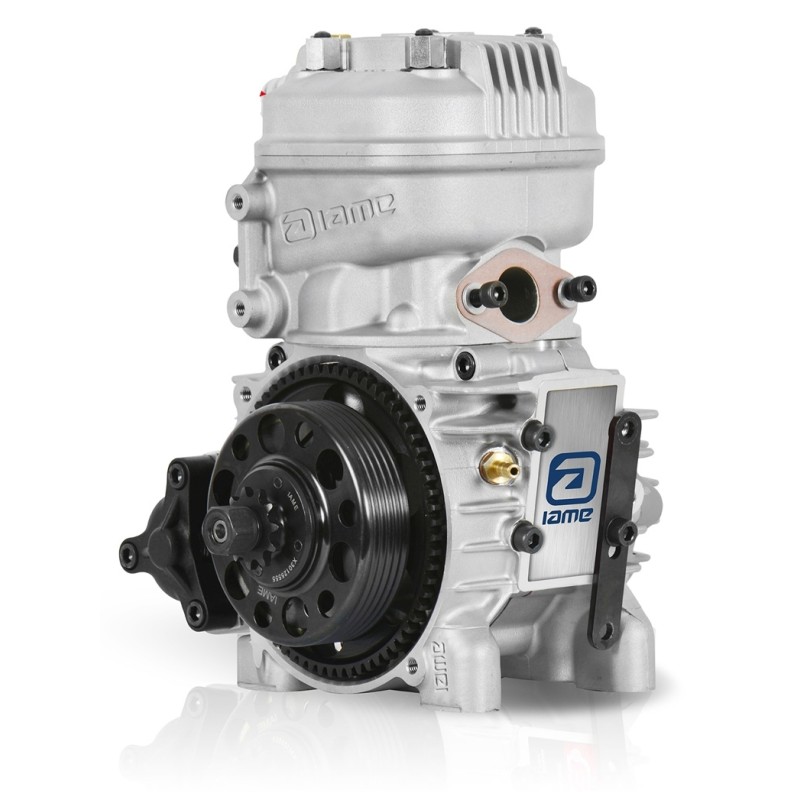

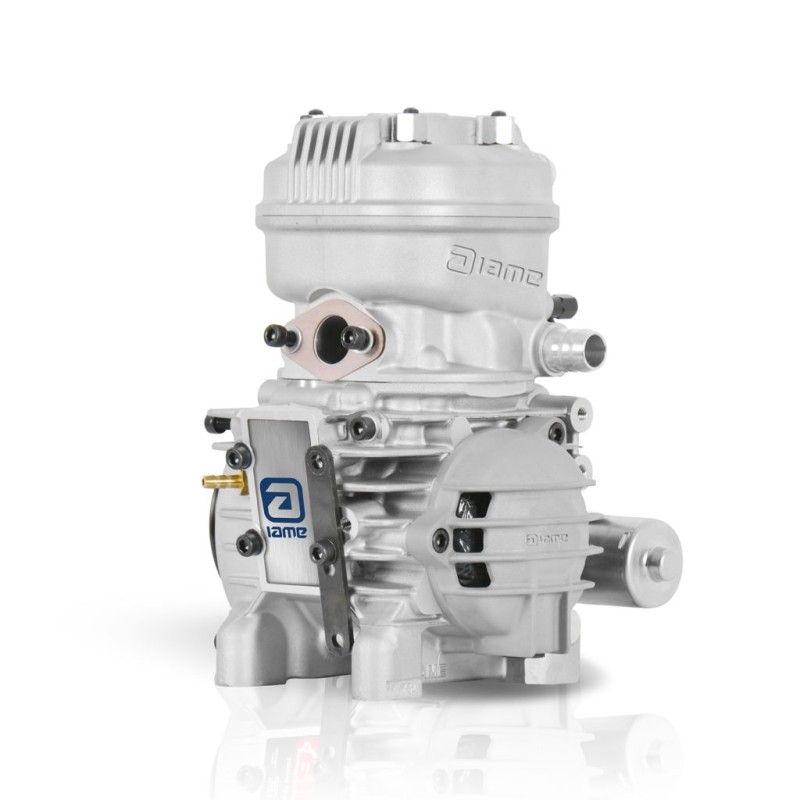

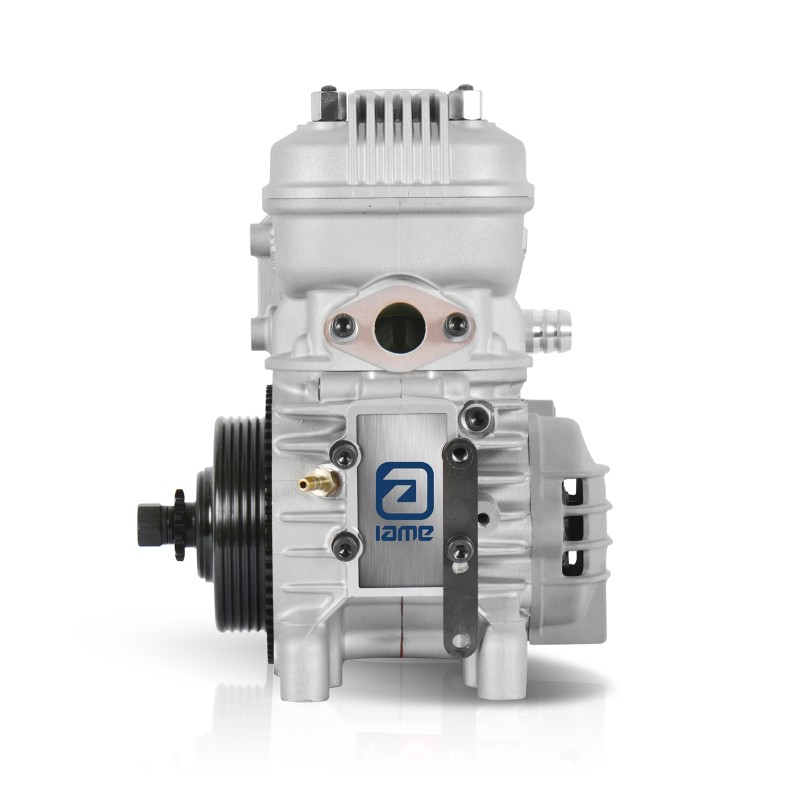

Engine Iame WaterSwift Mini 60cc

Derived from the Water Swift, the X30 Water Shift 60cc engine adopts a traditional axle-driven water pump.

The proven architecture of the IAME Mini Swift engines coupled with water-cooling guarantees stable performance and reliability.

Engine Iame WaterSwift 60-cooled water complete with everything needed for installation!

Motor type: single cylinder - 2 times
Bore: Ø 41.81 mm
Bore max .: Ø 42.10 mm
stroke: 43.00 mm
Displacement: 59.00 cc
Admission: piston-port
lubrication: mixture
Ignition: analog
Starting: electric

Transmission: centrifugal dry clutch
Cooling system: water

max .: 10Hp torque max .: 7 Nm
Regime max .: 15,000 RPM
Carburetor: Tillotson HW31A

The engine kit includes:
- 2-pole analog electronic ignition
- HT Coil
- NGK BR1OEG and pipettes candle
- Group centrifugal clutch with pinion Z11

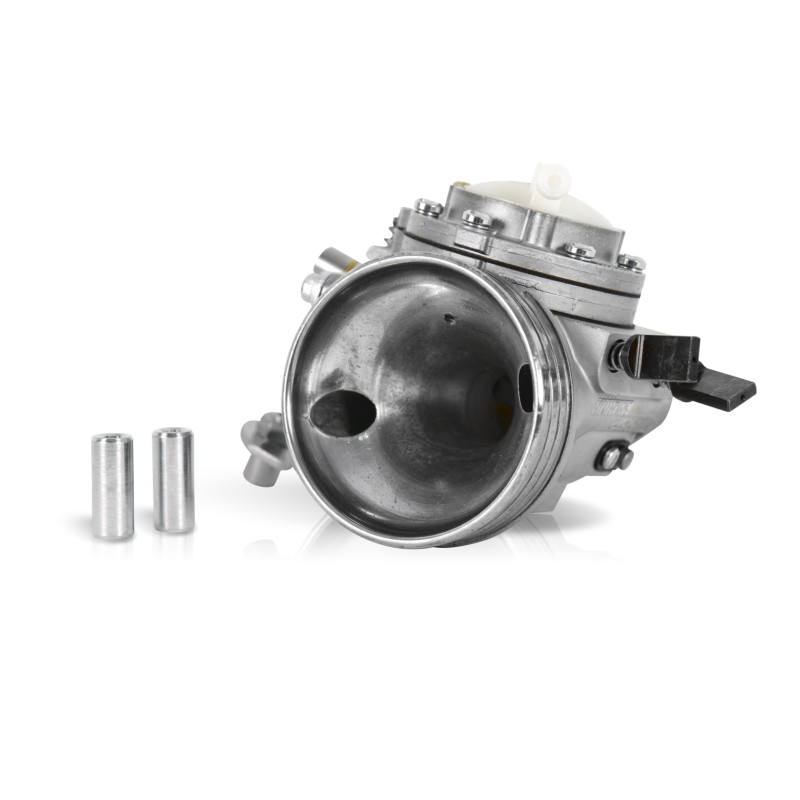

- Carburetor Tillotson HW31A with fitting and petrol pump

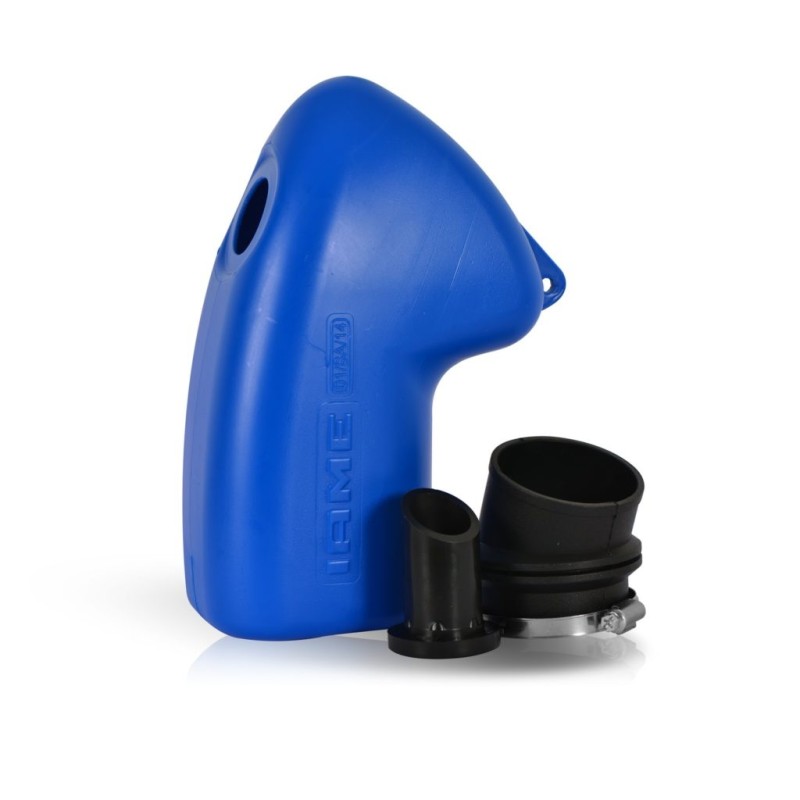

- Intake silencer IAME homologated CSAI
- suction muffler Support Aluminum
- drain connection

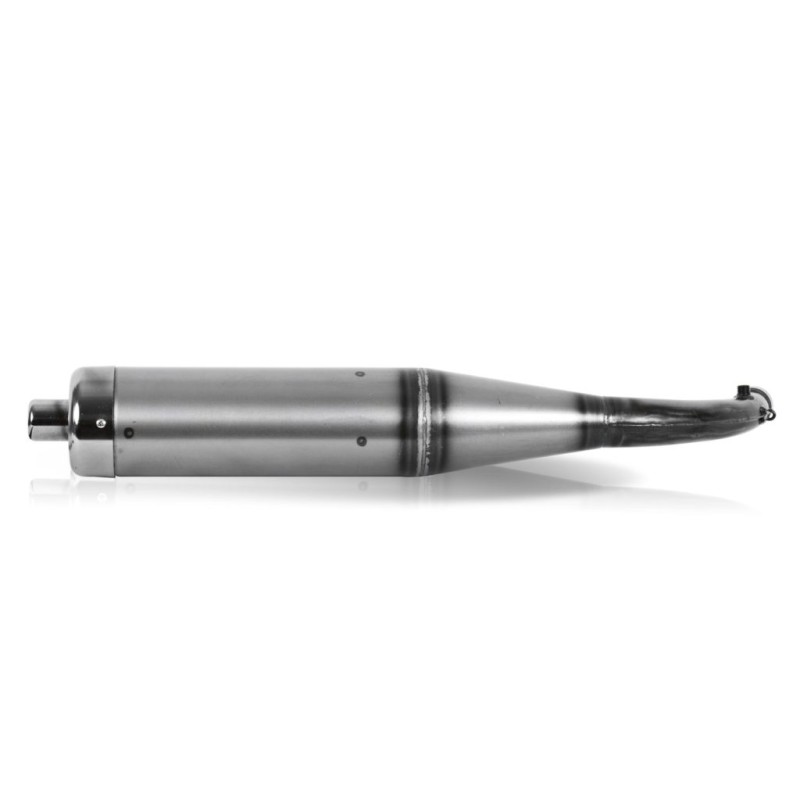

- approved IAME exhaust silencer CSAI
- springs muffler fixing
- starter with support
- Bendix
- complete relay wiring, buttons, bracket support buttons
- battery holder with fastening bolts and battery fixing band (without battery)
- cooling system complete with radiator, radiator supports, water pump, pulley, pipes
