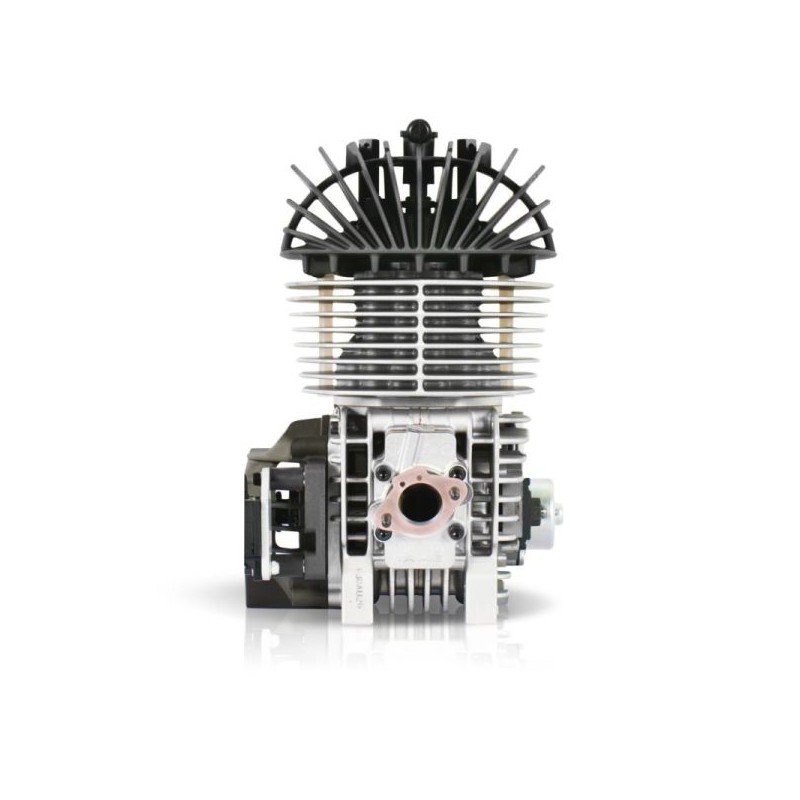

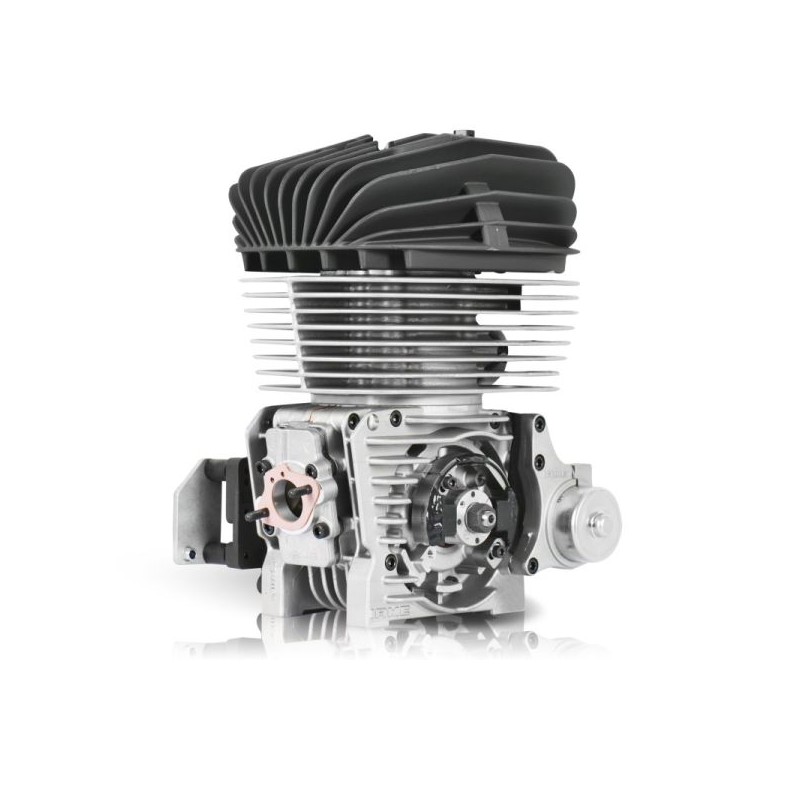

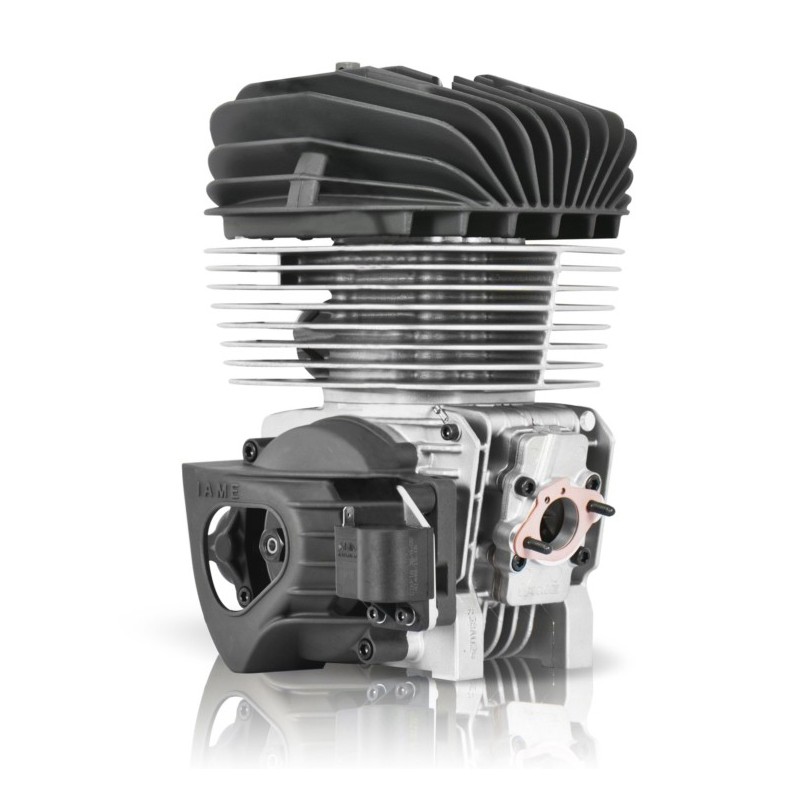

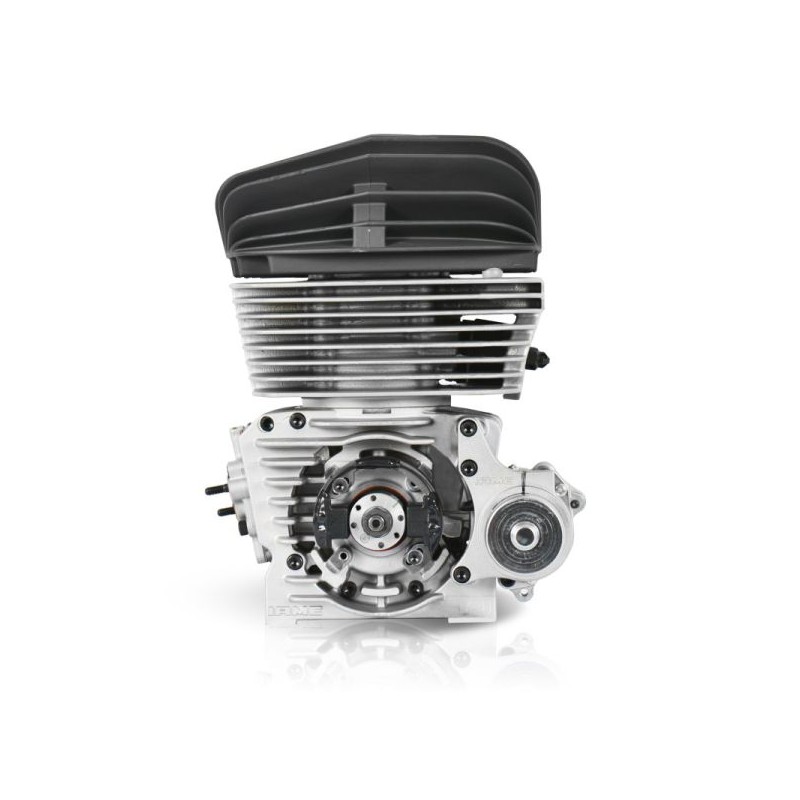

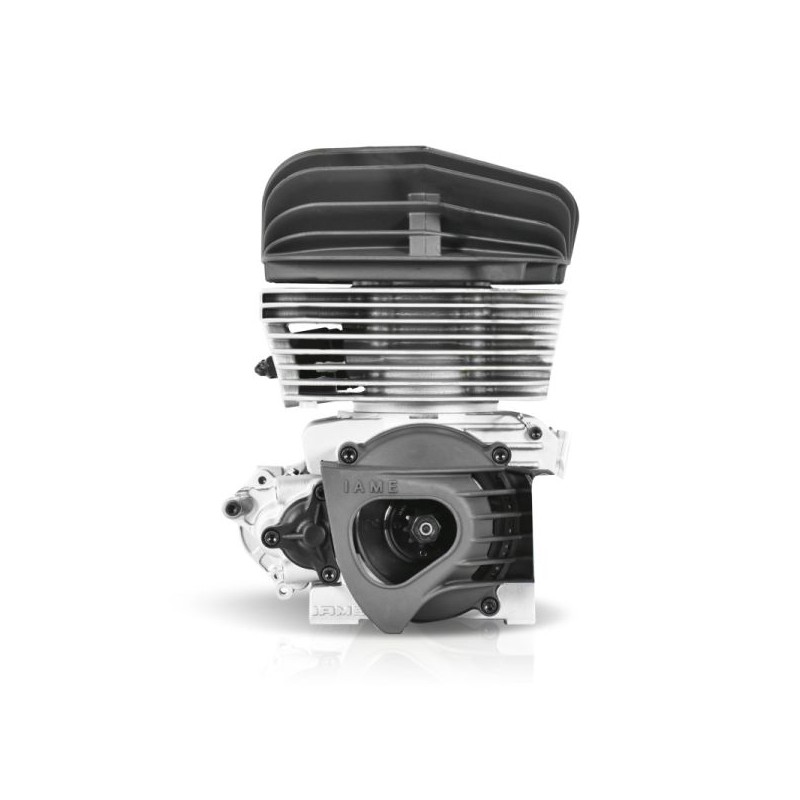

IAME Reedjet KA100 Engine

The IAME Reedjet KA100 is designed for hobby and club-level classes, offering a traditional, reliable engine that is easy to operate and maintain. Strong, consistent and user-friendly, it is ideal for training, hobby racing and intense recreational karting.

🔧 Engine type: single-cylinder 2-stroke
🔧 Bore: Ø 48.20 mm (max Ø 48.53 mm)
🔧 Stroke: 54.00 mm
🔧 Displacement: 98.53 cc
🔧 Ports: 2
🔧 Inlet system: reed valve
🔧 Lubrication: oil mixture
🔧 Ignition: analog, adjustable timing
🔧 Transmission: centrifugal dry clutch
🔧 Cooling: air
🔧 Starter: electric
🔧 Carburettor: Tillotson HW-33A
🔧 Max power: 21–22 Hp
🔧 Max torque: 15 Nm

A durable and straightforward engine, with electric start and low running costs, offering excellent drivability and ease of service.
