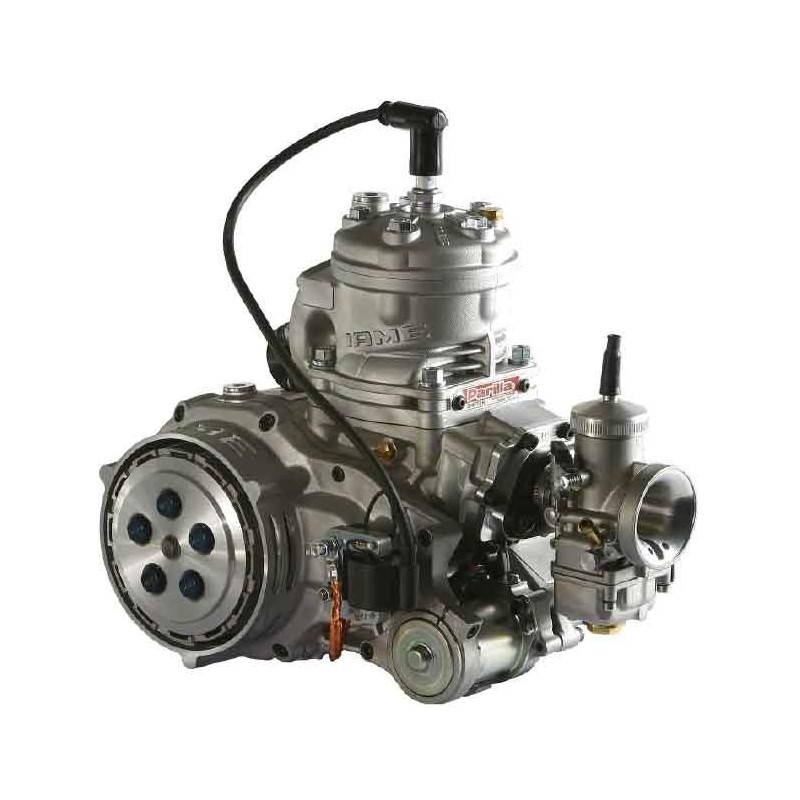

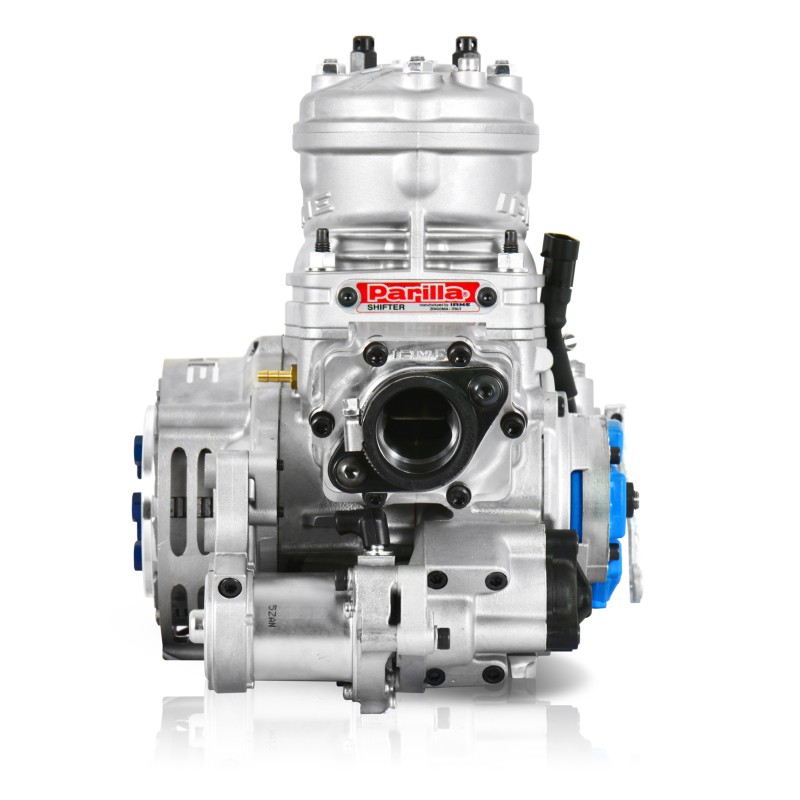

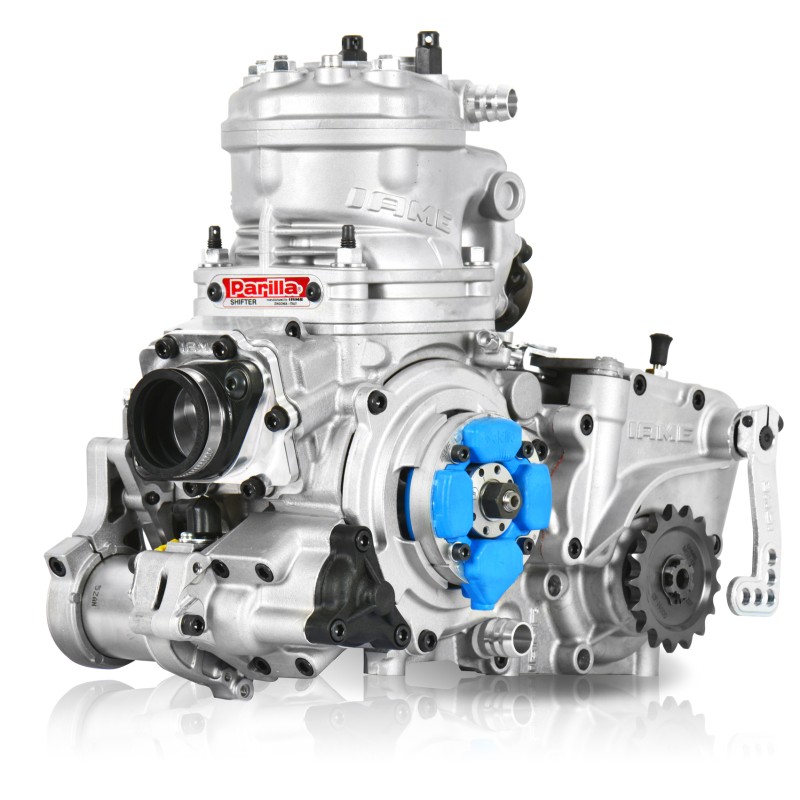

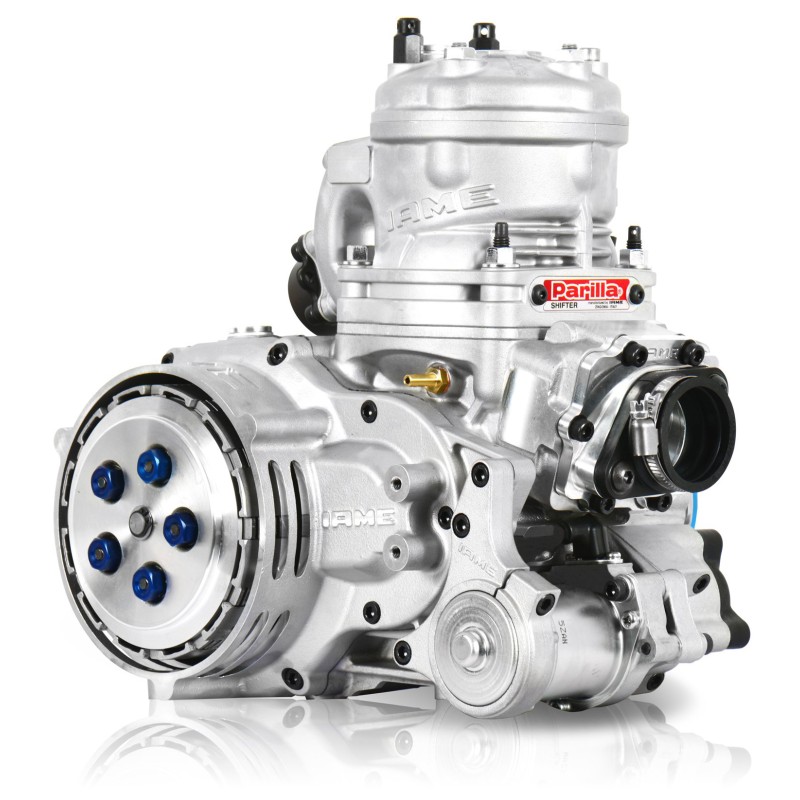

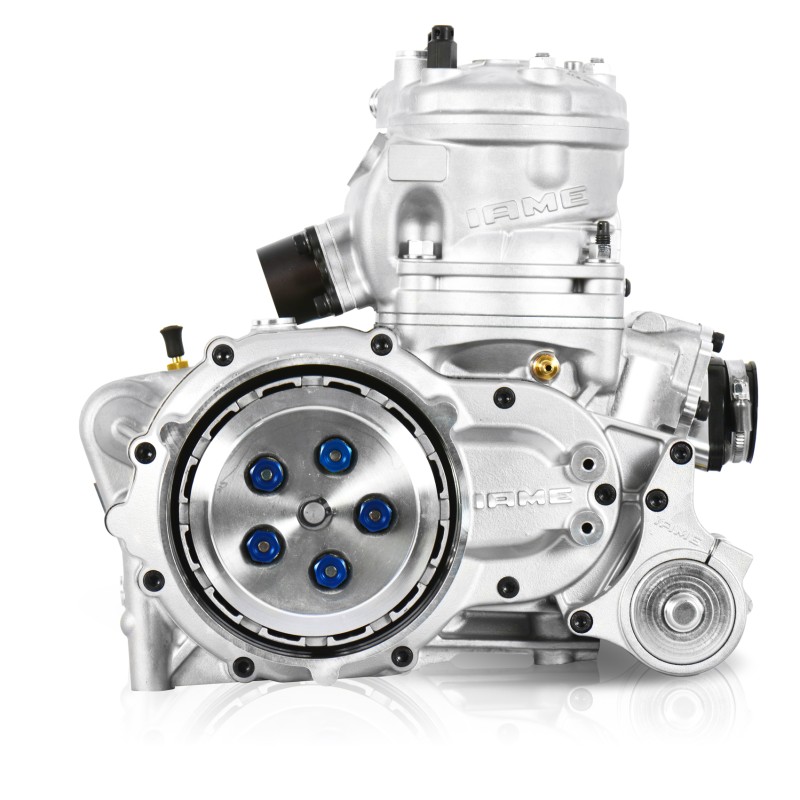

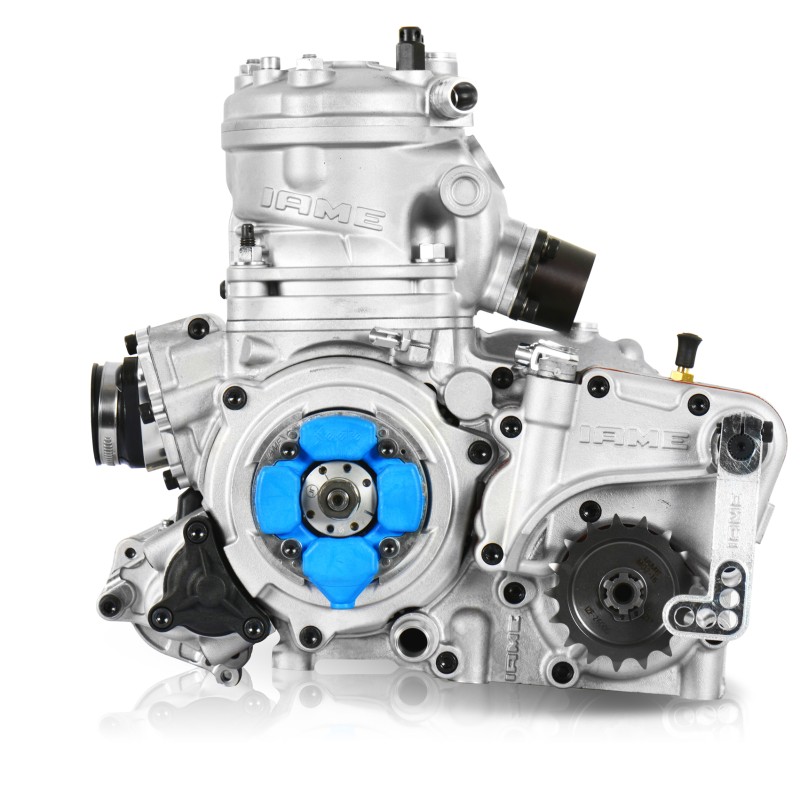

Engine Iame Super Shifter 175cc (KZ)

Mondokart presents the IAME motor home brand new with 6 gearshifts and displacement 175cc!

Equipped with electric starter (starter motor with key for the setting in motion), the newest engine releases a power of nearly 50 horses !!

Includes controller with or without limiter (choice)

type Engine: cylindrical Mono - 2 times
Bore: 63.92 mm Ø
Bore max .: Ø 64.04 mm
stroke: 54,40 mm
Displacement: 174,56cc (max. 175,5cc)
Admission: lamellar
lubrication: mixture 4.5%
Ignition: Digital S
Transmission: 6-speed gearbox
Cooling system: water
Starting: electric
Carburetor: Dell'Orto VHSB 36 RD < br /> Power max .: 49 HP to 13.000 RPM
.: Max torque 27.00 Nm at 12,500 RPM
Max RPM: 14,150 RPM (with limiter) or 17,000 RPM (without limitation)

Key Features: < br />  reed valve to 4 petals
 cast iron cylinder centrifuged
 cooling circuit in the crankcase, cylinder and head
 crankshaft on 3 supports
 primary Couple straight teeth rectified
 multiplate clutch with flexible coupling - pressure plate with thrust bearing
 Gearbox 6 speed approved
 gears with toothing in class 8 rotating on roller cages
 to primary shaft lubrication rain

 desmodromic drum lightened  Forks with casehardened and hardened shoes
 independent preselector Fund and not involved in the opening of the base.
 crankshaft roller bearings
 complete electric starter Group on the engine
The engine kit includes:
 Electronic ignition digital with rotor Ø 36mm
 electronic control unit type "L1" with or without speed limiter (select from the drop down menu)
 Electrics
 electrical components Support
 NGK BR 10 EG with pipette resistive
 Carburetor Dell'Orto VHSH RD 36 with fitting rubber and gasoline pump
 conveyor billet
 Pinion Z17
 drainage fitting microcast with fixing springs
 Muffler to 10 sectors with curve
 universal support in magnesium plate with fastening bolts
